Introduction 7

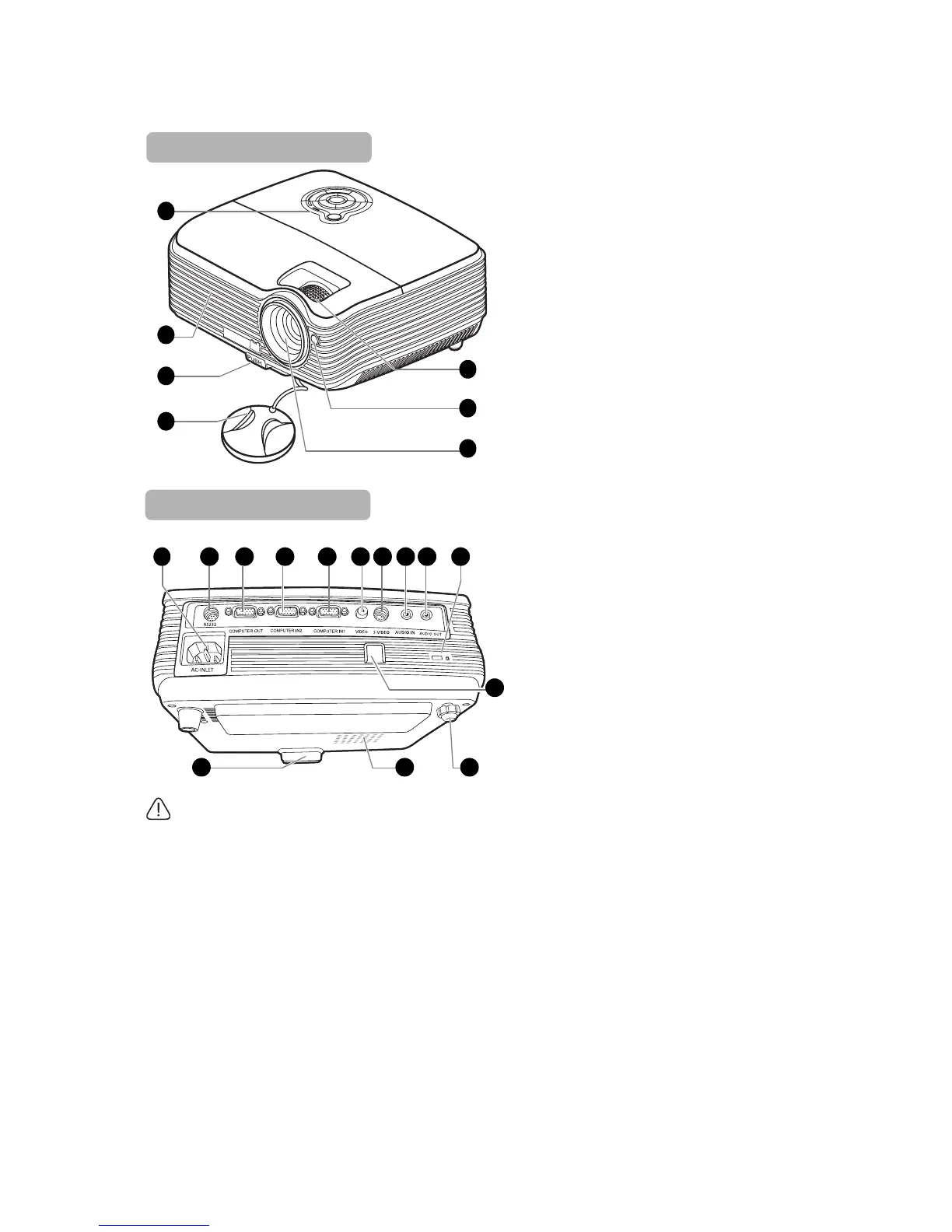

Projector exterior view
1. External control panel
(See "Projector and remote control"
on page 8 for details.)
2. Vent (heated air exhaust)
3. Quick-release button
4. Lens cover
5. Focus ring and Zoom ring
6. Front IR remote sensor
7. Projection lens
8. AC power cord inlet
9. RS-232 control port
10. RGB signal output socket
11. RGB (PC)/Component video
(YPbPr/YCbCr) signal input
socket-1
12. RGB (PC)/Component video
(YPbPr/YCbCr) signal input
socket-2
13. Video input socket
14. S-Video input socket
15. Audio signal input socket
16. Audio signal output socket
17. Kensington anti-theft lock slot
18. Quick-release foot
19. Lamp cover
20. Rear adjuster foot
21. Security bar
Connects a commercially available
theft prevention cable.
Warning
• THIS APPARATUS MUST BE EARTHED.
• When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring,
or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should
occur during operation of the unit, operate the disconnect device to switch the power supply
off, or disconnect the power plug.
Front/upper side
7
1
2
3
4
5
6
Rear/lower side
18 20
1714131110
9
8
19
15 1612
21

ViewSonic PJD5111 Specifications

General

Projection distance	1.5/6 m
Vertical scan range	50 - 87 Hz
Horizontal scan range	30 - 70 kHz
Projection technology	DLP
Contrast ratio (typical)	2800:1
Screen size compatibility	35/155 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	40 °
Digital zoom	1.1 x
Focal length range	21 - 23 mm
I/O ports	1 × RCA jack 1 × 4-pin mini-DIN % × 15-pin mini D-sub(RGB)
Audio input	1 × 3.5 mm mini jack
Aspect ratio	4:3, 16:9
RS-232 ports	1
Dimensions (WxDxH)	264 x 225 x 96.4 mm
Power requirements	AC100–240V, 2.9 A, 50/60 Hz
Lamp power	189 W
Light source type	Lamp
Service life of light source	3000 h
RMS rated power	5 W
Serial interface type	RS-232
VGA (D-Sub) ports quantity	5
Certification	CB, ROHS, WEEE, UL/cUL, FCC-B, ICES-003, IRAM (Argentina), NOMPSB, C-tick, EK, CE, TUV/GS, GOST-R, Hygienic, SASO UKrSEPRO, CCC
Power consumption (typical)	242 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Market positioning	Presentation

Weight and Dimensions

Weight	2300 g
