Positioning your projector 11
Positioning your projector
Choosing a location
Your room layout or personal preference will dictate which installation location you select.
Take into consideration the size and position of your screen, the location of a suitable power
outlet, as well as the location and distance between the projector and the rest of your
equipment.

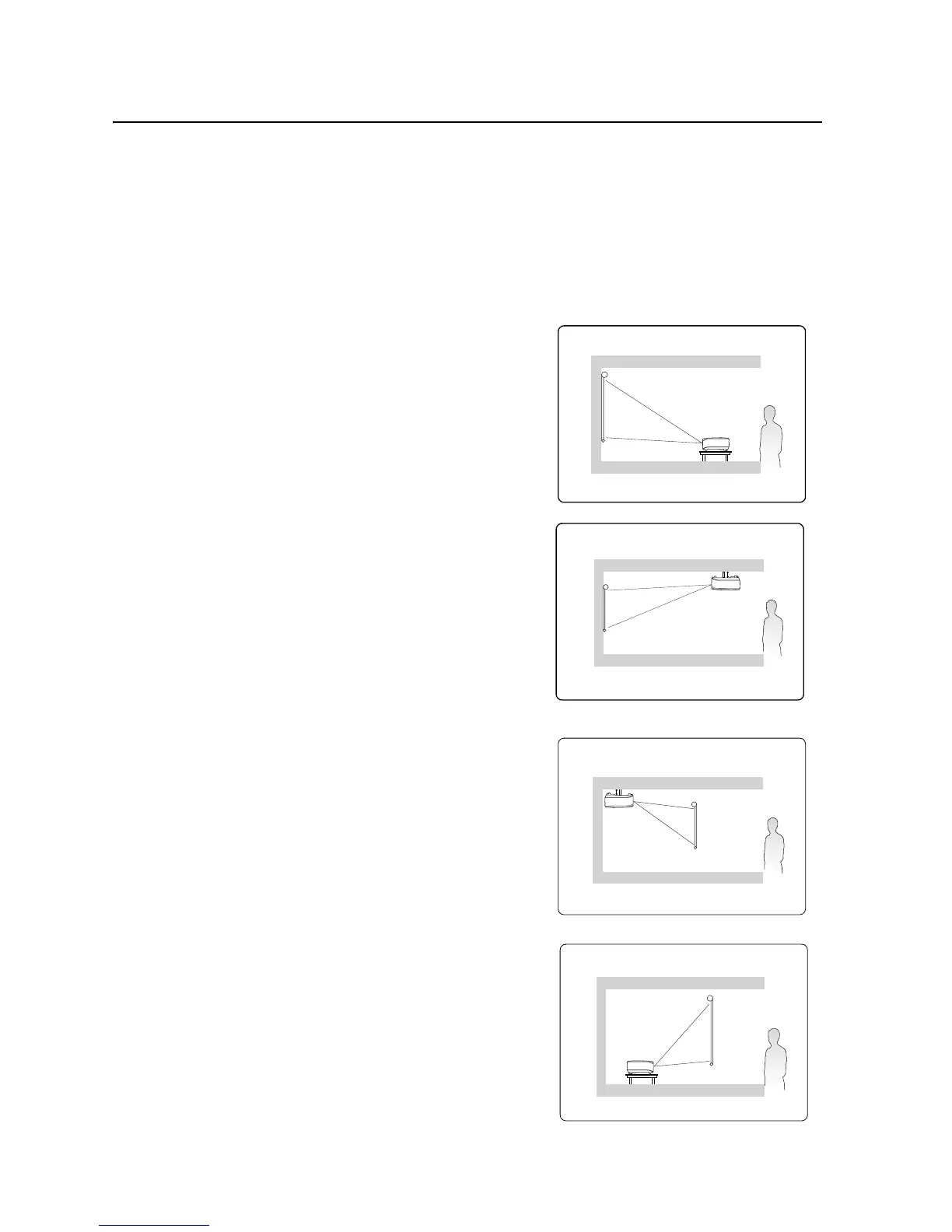

Your projector is designed to be installed in one of four possible installation locations:
1. Front Table
Select this location with the projector placed near
the floor in front of the screen. This is the most
common way to position the projector for quick
setup and portability.
2. Front Ceiling
Select this location with the projector suspended
upside-down from the ceiling in front of the
screen.
Purchase the projector ceiling mount kit from your
dealer to mount your projector on the ceiling.
Set Front Ceiling in the SYSTEM SETUP:
Basic > Projector Position menu after you turn
the projector on.
3. Rear Ceiling
Select this location with the projector suspended
upside-down from the ceiling behind the screen.
Note that a special rear projection screen and the
projector ceiling mounting kit are required for this
installation location.
Set Rear Ceiling in the SYSTEM SETUP: Basic
> Projector Position menu after you turn the
projector on.
4. Rear Table
Select this location with the projector placed near
the floor behind the screen.
Note that a special rear projection screen is
required.
Set Rear Table in the SYSTEM SETUP: Basic >
Projector Position menu after you turn the
projector on.

ViewSonic PJD5111 Specifications

General

Projection distance	1.5/6 m
Vertical scan range	50 - 87 Hz
Horizontal scan range	30 - 70 kHz
Projection technology	DLP
Contrast ratio (typical)	2800:1
Screen size compatibility	35/155 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	40 °
Digital zoom	1.1 x
Focal length range	21 - 23 mm
I/O ports	1 × RCA jack 1 × 4-pin mini-DIN % × 15-pin mini D-sub(RGB)
Audio input	1 × 3.5 mm mini jack
Aspect ratio	4:3, 16:9
RS-232 ports	1
Dimensions (WxDxH)	264 x 225 x 96.4 mm
Power requirements	AC100–240V, 2.9 A, 50/60 Hz
Lamp power	189 W
Light source type	Lamp
Service life of light source	3000 h
RMS rated power	5 W
Serial interface type	RS-232
VGA (D-Sub) ports quantity	5
Certification	CB, ROHS, WEEE, UL/cUL, FCC-B, ICES-003, IRAM (Argentina), NOMPSB, C-tick, EK, CE, TUV/GS, GOST-R, Hygienic, SASO UKrSEPRO, CCC
Power consumption (typical)	242 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Market positioning	Presentation

Weight and Dimensions

Weight	2300 g
