ViewSonic PJD5111 User Manual

Operation26
Magnifying and searching for details
If you need to find the details on the projected picture, magnify the picture. Use the
direction arrow keys for navigating the picture.
• Using the remote control

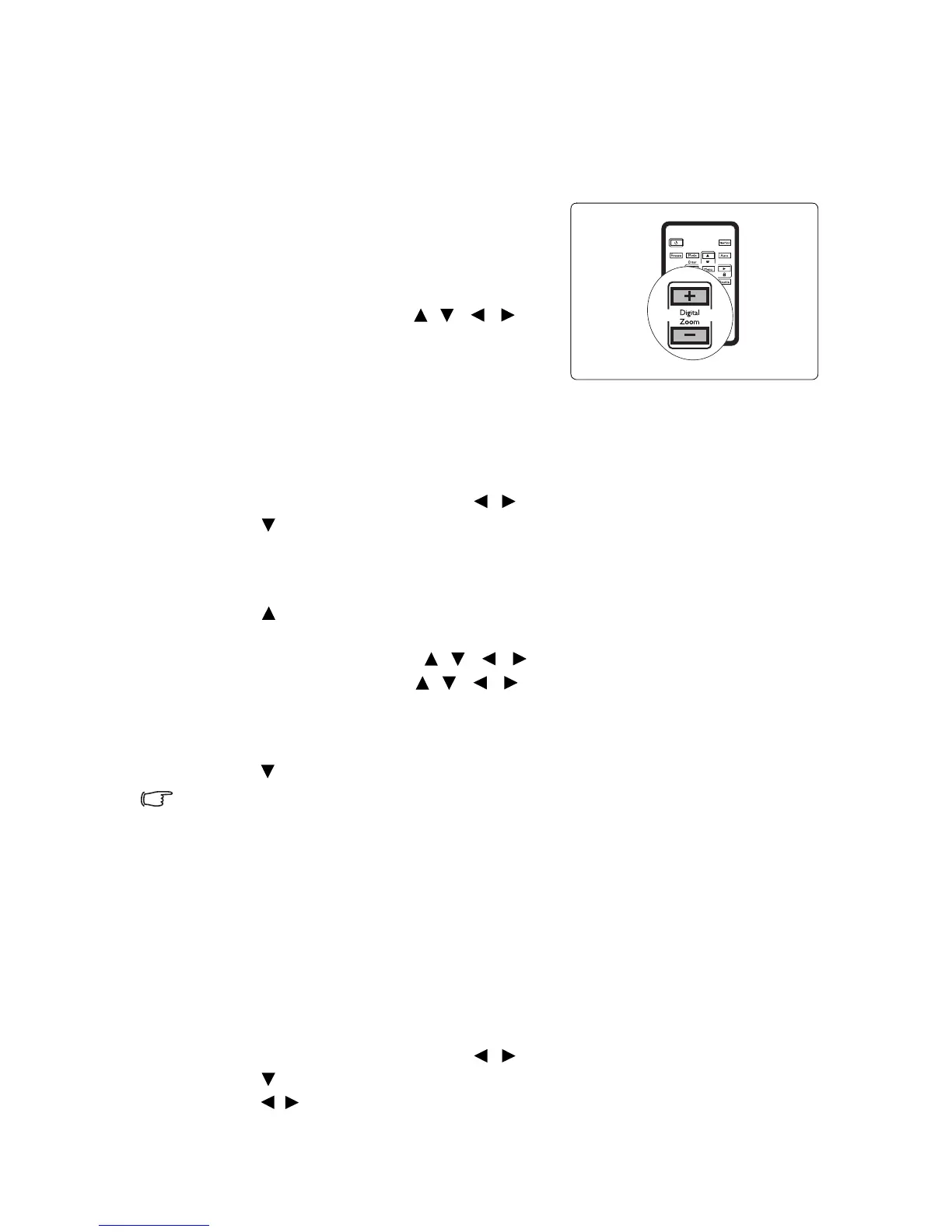

1. Press Digital Zoom +/- to display the Zoom
bar.
2. Press Digital Zoom + to magnify the center of
the picture. Press the key repeatedly until the
picture size is suitable for your need.
3. Use the directional arrows ( , , , ) on
the projector or remote control to navigate the
picture.
4. To restore the picture to its original size, press
AUTO. You can also press Digital Zoom -.
When the key is pressed again, the picture is further reduced until it is restored to the
original size.
• Using the OSD menu
1. Press MENU/EXIT and then press / until the DISPLAY menu is highlighted.
2. Press
to highlight Digital Zoom and press MODE/ENTER. The Zoom bar
displays.
3. Repeat steps 2-4 in the section of "Using the remote control" above. Or if you are
using the projector control panel, continue to the following steps.
4. Press on the projector repeatedly to magnify the picture to a desired size.
5. To navigate the picture, press MODE/ENTER to switch to the paning mode and
press the directional arrows ( , , , ) to navigate the picture.
6. Use the directional arrows ( , , , ) on the projector or remote control to
navigate the picture.
7. To reduce size of the picture, press MODE/ENTER to switch back to the zoom in/out
functionality, and press AUTO to restore the picture to its original size. You can also
press repeatedly until it is restored to the original size.
The picture can only be navigated after the picture is magnified. You can further magnify the
picture while searching for details.
Selecting the aspect ratio
The 'aspect ratio' is the ratio of the image width to the image height. Most analog TV and
computers are in 4:3 ratio, which is the default for this projector, and digital TV and DVDs
are usually in 16:9 ratio.
With the advent of digital signal processing, digital display devices like this projector can
dynamically stretch and scale the image output to a different aspect than that of the image
input signal.
To change the projected image ratio (no matter what aspect the source is):
1. Press MENU/EXIT and then press / until the DISPLAY menu is highlighted.
2. Press
to highlight Aspect Ratio.
3. Press / to select an aspect ratio to suit the format of the video signal and your
display requirements.

ViewSonic PJD5111 Specifications

General

Projection distance	1.5/6 m
Vertical scan range	50 - 87 Hz
Horizontal scan range	30 - 70 kHz
Projection technology	DLP
Contrast ratio (typical)	2800:1
Screen size compatibility	35/155 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	40 °
Digital zoom	1.1 x
Focal length range	21 - 23 mm
I/O ports	1 × RCA jack 1 × 4-pin mini-DIN % × 15-pin mini D-sub(RGB)
Audio input	1 × 3.5 mm mini jack
Aspect ratio	4:3, 16:9
RS-232 ports	1
Dimensions (WxDxH)	264 x 225 x 96.4 mm
Power requirements	AC100–240V, 2.9 A, 50/60 Hz
Lamp power	189 W
Light source type	Lamp
Service life of light source	3000 h
RMS rated power	5 W
Serial interface type	RS-232
VGA (D-Sub) ports quantity	5
Certification	CB, ROHS, WEEE, UL/cUL, FCC-B, ICES-003, IRAM (Argentina), NOMPSB, C-tick, EK, CE, TUV/GS, GOST-R, Hygienic, SASO UKrSEPRO, CCC
Power consumption (typical)	242 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Market positioning	Presentation

Weight and Dimensions

Weight	2300 g
