ViewSonic PJD5111 User Manual

Operation20
Using the menus

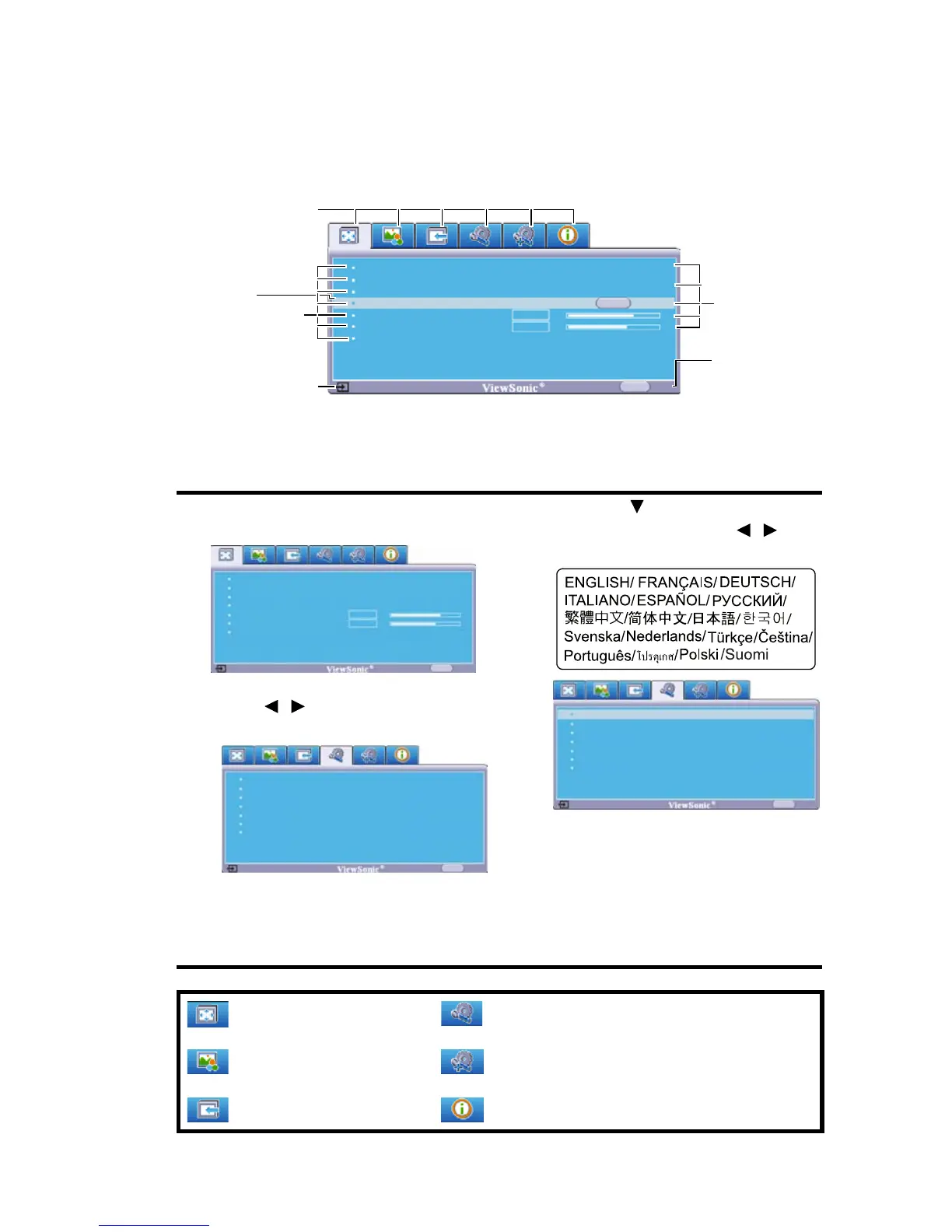

The projector is equipped with On-Screen Display (OSD) menus for making various
adjustments and settings.
Below is the overview of the OSD menu.
To use the OSD menus, please set them to your familiar language first.
1. Press MENU/EXIT on the projector or
remote control to turn the OSD menu on.
3. Press to highlight
Language and press / to
select a preferred language.
4. Press MENU/EXIT twice* on
the projector or remote control
to leave and save the settings.
*The first press leads you back
to the main menu and the
second press closes the OSD
menu.
2. Use / to highlight the SYSTEM
SETUP: Basic menu.
: DISPLAY
: PICTURE
: SOURCE
: SYSTEM SETUP: Basic
: SYSTEM SETUP: Advanced
: INFORMATION
Current input
signal
Main menu icon
Sub-menu
Highlight
Press MENU/
EXIT to the
previous
page or to
exit.
Status
Screen Color
Aspect Ratio
Phase
H. Size
Digital Zoom
Off
Auto
16
0
MENU Exit
Analog RGB
ENTER
Keystone
Position
Screen Color
Aspect Ratio
Position
Phase
H. Size
Digital Zoom
Off
Auto
MENU
Exit
Keystone
16
0
Analog RGB
Projector Position
Auto Power Off
Blank Timer
Timer Controller
Panel Key Lock
Splash Screen
Analog RGB
MENU Exit
Front Table
Disable
Disable
Off
Disable
ViewSonic
English
Language
Projector Position
Auto Power Off
Blank Timer
Timer Controller
Panel Key Lock
Splash Screen
Analog RGB
MENU Exit
Front Table
Disable
Disable
Off
Disable
ViewSonic
EnglishLanguage

ViewSonic PJD5111 Specifications

General

Projection distance	1.5/6 m
Vertical scan range	50 - 87 Hz
Horizontal scan range	30 - 70 kHz
Projection technology	DLP
Contrast ratio (typical)	2800:1
Screen size compatibility	35/155 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	40 °
Digital zoom	1.1 x
Focal length range	21 - 23 mm
I/O ports	1 × RCA jack 1 × 4-pin mini-DIN % × 15-pin mini D-sub(RGB)
Audio input	1 × 3.5 mm mini jack
Aspect ratio	4:3, 16:9
RS-232 ports	1
Dimensions (WxDxH)	264 x 225 x 96.4 mm
Power requirements	AC100–240V, 2.9 A, 50/60 Hz
Lamp power	189 W
Light source type	Lamp
Service life of light source	3000 h
RMS rated power	5 W
Serial interface type	RS-232
VGA (D-Sub) ports quantity	5
Certification	CB, ROHS, WEEE, UL/cUL, FCC-B, ICES-003, IRAM (Argentina), NOMPSB, C-tick, EK, CE, TUV/GS, GOST-R, Hygienic, SASO UKrSEPRO, CCC
Power consumption (typical)	242 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Market positioning	Presentation

Weight and Dimensions

Weight	2300 g
