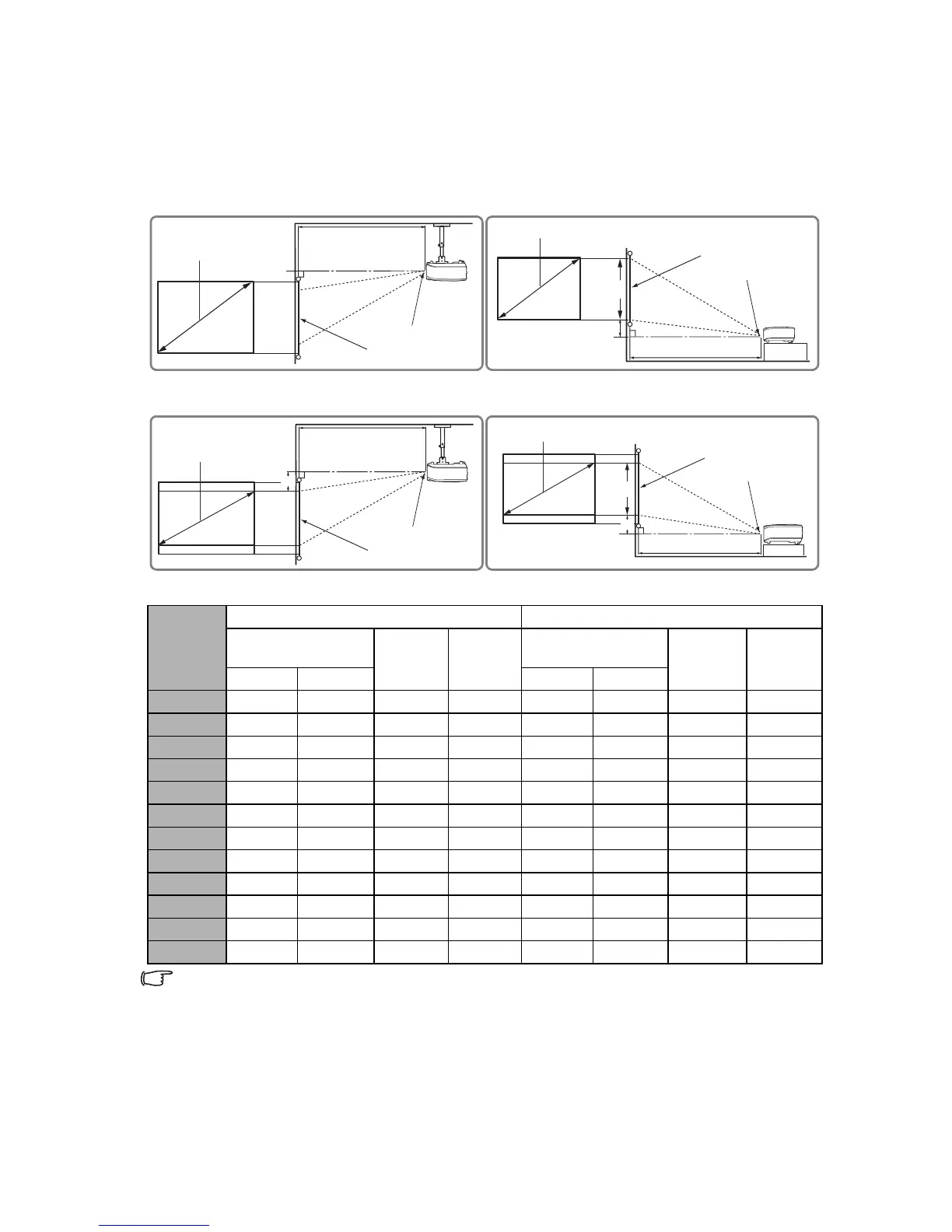

Positioning your projector12
Projection dimensions
Refer to "Dimensions" on page 49 for the center of lens dimensions of this projector before
calculating the appropriate position.
There is 3% tolerance among these numbers due to optical component variations. It is
recommended that if you intend to permanently install the projector, you should physically
test the projection size and distance using the actual projector in situ before you permanently
install it, so as to make allowance for this projector's optical characteristics. This will help you
determine the exact mounting position so that it best suits your installation location.
(a) Screen
Size
[inch (m)]
4:3 Screen 16:9 Screen
(b) Projection distance
[m (inch)]
(c) Image
height
[cm (inch)]
(d) Vertical
offset
[cm (inch)]
(b) Projection
distance [m (inch)]
(c) Image
height
[cm (inch)
(d) Vertical
offset
[cm (inch)]
min. max. min. max.
40 (1.0) 1.5 (59) 1.7 (65) 61 (24) 6 (2) 1.6 (65) 1.8 (71) 50 (20) 15 (6)
50 (1.3) 1.9 (74) 2.1 (82) 76 (30) 8 (3) 2.1 (81) 2.3 (89) 62 (25) 19 (7)
60 (1.5) 2.3 (89) 2.5 (98) 91 (36) 9 (4) 2.5 (97) 2.7 (107) 75 (29) 22 (9)
70 (1.8) 2.6 (104) 2.9 (114) 107 (42) 11 (4) 2.9 (113) 3.2 (125) 87 (34) 26 (10)
80 (2.0) 3.0 (119) 3.3 (131) 122 (48) 12 (5) 3.3 (129) 3.6 (142) 100 (39) 30 (12)
90 (2.3) 3.4 (134) 3.7 (147) 137 (54) 14 (5) 3.7 (146) 4.1 (160) 112 (44) 34 (13)
100 (2.5) 3.8 (149) 4.2 (163) 152 (60) 15 (6) 4.1 (162) 4.5 (178) 125 (49) 37 (15)
120 (3.0) 4.5 (178) 5.0 (196) 183 (72) 18 (7) 4.9 (194) 5.4 (214) 149 (59) 45 (18)
150 (3.8) 5.7 (223) 6.2 (245) 229 (90) 23 (9) 6.2 (243) 6.8 (267) 187 (74) 56 (22)
200 (5.1) 7.5 (297) 8.3 (327) 305 (120) 30 (12) 8.2 (324) 9.0 (356) 249 (98) 75 (29)
250 (6.4) 9.4 (371) 10.4 (409) 381 (150) 38 (15) 10.3 (405) 11.3 (445) 311 (123) 93 (37)
300 (7.6) 11.3 (446) 12.5 (490) 457 (180) 46 (18) 12.3 (486) 13.6 (534) 374 (147) 112 (44)
(a)
(c)
(b)
(e)
(f)
(d)
(a)
(d)
(b)
(e)
(f)
(c)
(a)
(d)
(c)
(b)
(e)
(f)
(a)
(c)
(b)
(e)
(f)
(d)
(f): Center of lens(e): Screen
• 4:3 image on a 4:3 screen
• 16:9 image on a 4:3 screen

ViewSonic PJD5111 Specifications

General

Projection distance	1.5/6 m
Vertical scan range	50 - 87 Hz
Horizontal scan range	30 - 70 kHz
Projection technology	DLP
Contrast ratio (typical)	2800:1
Screen size compatibility	35/155 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	40 °
Digital zoom	1.1 x
Focal length range	21 - 23 mm
I/O ports	1 × RCA jack 1 × 4-pin mini-DIN % × 15-pin mini D-sub(RGB)
Audio input	1 × 3.5 mm mini jack
Aspect ratio	4:3, 16:9
RS-232 ports	1
Dimensions (WxDxH)	264 x 225 x 96.4 mm
Power requirements	AC100–240V, 2.9 A, 50/60 Hz
Lamp power	189 W
Light source type	Lamp
Service life of light source	3000 h
RMS rated power	5 W
Serial interface type	RS-232
VGA (D-Sub) ports quantity	5
Certification	CB, ROHS, WEEE, UL/cUL, FCC-B, ICES-003, IRAM (Argentina), NOMPSB, C-tick, EK, CE, TUV/GS, GOST-R, Hygienic, SASO UKrSEPRO, CCC
Power consumption (typical)	242 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Market positioning	Presentation

Weight and Dimensions

Weight	2300 g
