ViewSonic PJD5111 User Manual

Connection 17
Connecting an S-Video source device
Examine your Video source device to determine if it has an unused S-Video output socket
available:
• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.
To connect the projector to an S-Video source device:
1. Take an S-Video cable and connect one end to the S-Video output socket of the Video
source device.
2. Connect the other end of the S-Video cable to the S-VIDEO socket on the projector.
3. If you wish to make use of the projector (mixed mono) speaker in your presentations,
take a suitable audio cable and connect one end of the cable to the audio output socket
of the device, and the other end to the AUDIO IN socket of the projector.
4. If you wish, you can use another suitable audio cable and connect one end of the cable
to the AUDIO OUT socket of the projector, and the other end to your external
speakers
Once connected, the audio can be controlled by the projector On-Screen Display
(OSD) menus. See "Adjusting the sound" on page 32 for details.

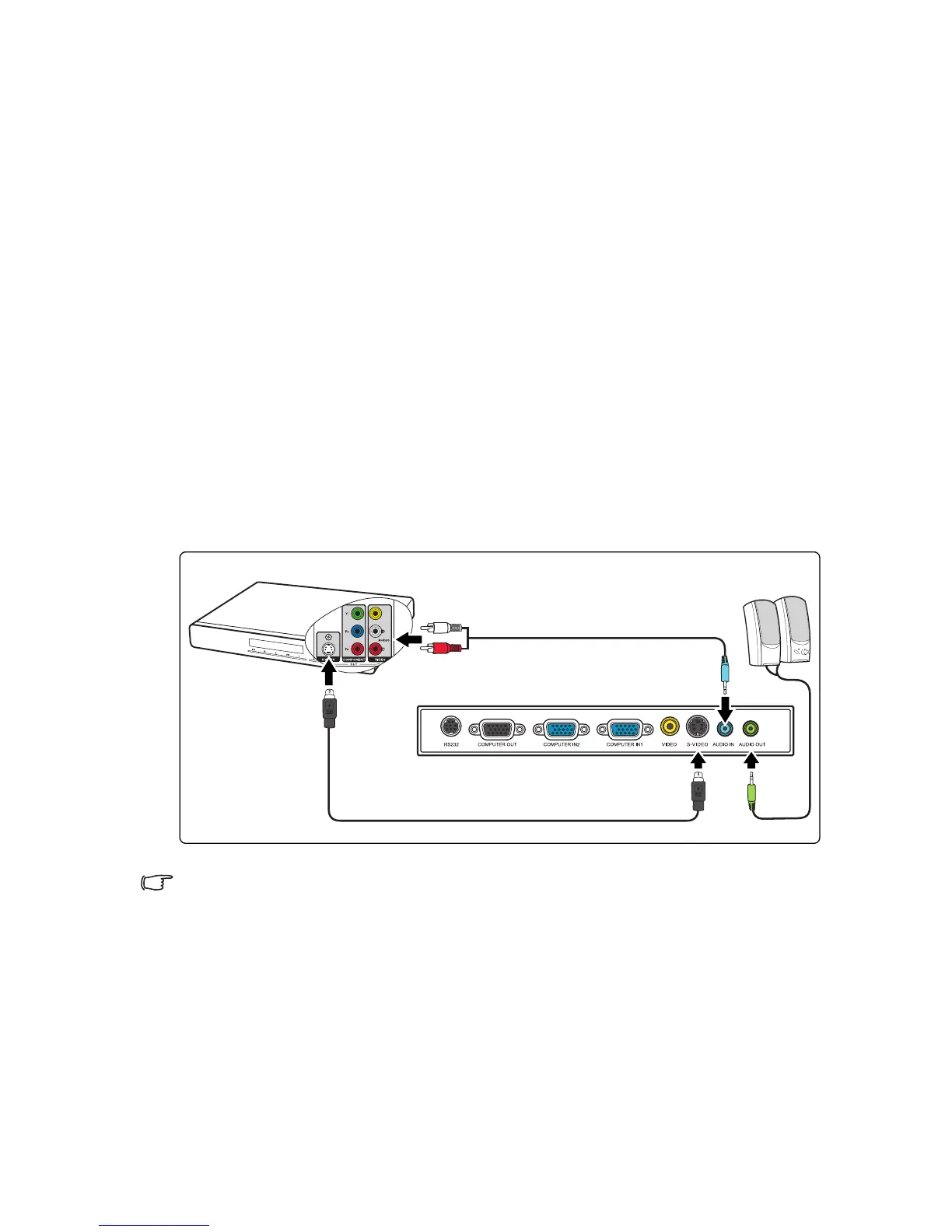

The final connection path should be like that shown in the following diagram:
• The projector is only capable of playing mixed mono audio, even if a stereo audio input is
connected. See "Connecting audio" on page 15 for details.
• If the selected video image is not displayed after the projector is turned on and the correct
video source has been selected, check that the Video source device is turned on and
operating correctly. Also check that the signal cables have been connected correctly.
• If you have already made a Component Video connection between the projector and this
S-Video source device using Component Video connections, you need not connect to this
device using an S-Video connection as this makes an unnecessary second connection of
poorer picture quality. See "Connecting Video source devices" on page 15 for details.
AV device
S-Video cable
Audio cable
Audio
cable
Speakers

ViewSonic PJD5111 Specifications

General

Projection distance	1.5/6 m
Vertical scan range	50 - 87 Hz
Horizontal scan range	30 - 70 kHz
Projection technology	DLP
Contrast ratio (typical)	2800:1
Screen size compatibility	35/155 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	40 °
Digital zoom	1.1 x
Focal length range	21 - 23 mm
I/O ports	1 × RCA jack 1 × 4-pin mini-DIN % × 15-pin mini D-sub(RGB)
Audio input	1 × 3.5 mm mini jack
Aspect ratio	4:3, 16:9
RS-232 ports	1
Dimensions (WxDxH)	264 x 225 x 96.4 mm
Power requirements	AC100–240V, 2.9 A, 50/60 Hz
Lamp power	189 W
Light source type	Lamp
Service life of light source	3000 h
RMS rated power	5 W
Serial interface type	RS-232
VGA (D-Sub) ports quantity	5
Certification	CB, ROHS, WEEE, UL/cUL, FCC-B, ICES-003, IRAM (Argentina), NOMPSB, C-tick, EK, CE, TUV/GS, GOST-R, Hygienic, SASO UKrSEPRO, CCC
Power consumption (typical)	242 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Market positioning	Presentation

Weight and Dimensions

Weight	2300 g
