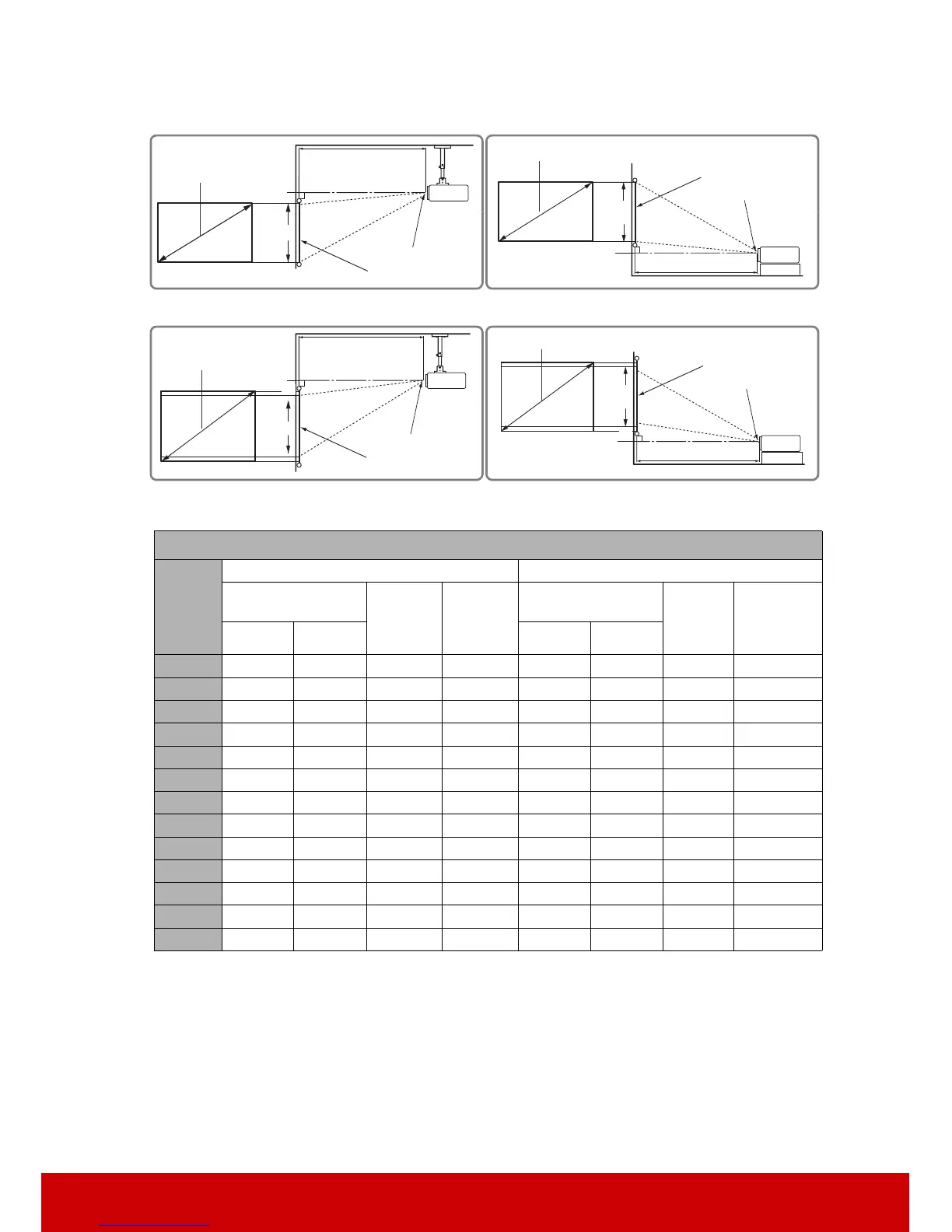

15
PJD6550Lw/PJD6552Lw/PJD6551Lws/PJD6552Lws
PJD6550Lw/PJD6552Lw
(a)
Screen
Size
[inch (m)]
16:10 image on a 16:10 Screen 16:10 image on a 4:3 Screen
(b) Projection
distance [m (inch)]
(c) Image
height
[cm (inch)]
(d) Vertical
offset
[cm (inch)]
(b) Projection
distance [m (inch)]
(c) Image
height
[cm
(inch)]
(d) Vertical
offset
[cm (inch)]
min. max. min. max.
30 (0.8) 0.8 (31) 1.0 (40) 40 (16) 3.0 (1.2) 0.7 (29) 1.0 (38) 38 (15) 2.9 (1.1)
40 (1.0) 1.0 (41) 1.4 (53) 54 (21) 4.0 (1.6) 1.0 (39) 1.3 (50) 51 (20) 3.8 (1.5)
50 (1.3) 1.3 (51) 1.7 (66) 67 (26) 5.0 (2.0) 1.2 (48) 1.6 (63) 64 (25) 4.8 (1.9)
60 (1.5) 1.6 (61) 2.0 (80) 81 (32) 6.1 (2.4) 1.5 (58) 1.9 (75) 76 (30) 5.7 (2.3)
70 (1.8) 1.8 (72) 2.4 (93) 94 (37) 7.1 (2.8) 1.7 (68) 2.2 (88) 89 (35) 6.7 (2.6)
80 (2.0) 2.1 (82) 2.7 (106) 108 (42) 8.1 (3.2) 2.0 (77) 2.5 (100) 102 (40) 7.6 (3.0)
90 (2.3) 2.3 (92) 3.0 (120) 121 (48) 9.1 (3.6) 2.2 (87) 2.9 (113) 114 (45) 8.6 (3.4)
100 (2.5) 2.6 (102) 3.4 (133) 135 (53) 10.1 (4.0) 2.5 (96) 3.2 (125) 127 (50) 9.5 (3.8)
120 (3.0) 3.1 (123) 4.1 (160) 162 (64) 12.1 (4.8) 2.9 (116) 3.8 (150) 152 (60) 11.4 (4.5)
150 (3.8) 3.9 (153) 5.1 (199) 202 (79) 15.1 (6.0) 3.7 (145) 4.8 (188) 191 (75) 14.3 (5.6)
200 (5.1) 5.2 (205) 6.8 (266) 269 (106) 20.2 (7.9) 4.9 (193) 6.4 (251) 254 (100) 19.1 (7.5)
250 (6.4) 6.5 (256) 8.4 (332) 337 (132) 25.2 (9.9) 6.1 (241) 8.0 (314) 318 (125) 23.8 (9.4)
300 (7.6) 7.8 (307) 10.1 (399) 404 (159) 30.3 (11.9) 7.4 (289) 9.6 (376) 381 (150) 28.6 (11.3)
(a)
(c)
(b)
(e)
(f)
(d)
(a)
(c)
(b)
(e)
(f)
(d)
(a)
(c)
(b)
(e)
(f)
(d)
(f): Center of lens(e): Screen
• 16:10 image on a 16:10 screen
• 16:10 image on a 4:3 screen
(a)
(d)
(c)
(b)
(e)
(f)
