30
Diagnostics
Service Diagnostics and Testing
7. Run all upper oven tests (DDOE305T – cont.)
Run all upper oven tests (DSOE305T – cont.)
Step Test Result To Change Test
12 Upper Convection Fan – Low speed
reverse
Run convection fan at low speed reverse*
* Oven uses a single direction convection
motor (Same direction as low speed)
Enter, Up or Down arrow
13 Upper Convection Fan – High speed
reverse
Run convection fan at low speed reverse*
* Oven uses a single direction convection
motor (Same direction as low speed)
Enter, Up or Down arrow
14 Upper Door Switch Check door interlock Enter, Up or Down arrow
15 Upper Oven Lights Check upper cavity lights Enter, Up or Down arrow
16 Upper Door Lock Door lock motor is advanced Enter, Up or Down arrow
17 Upper Door Unlock Engage door lock to unlock door Enter, Up or Down arrow
To end the test, press the “CLEAR” pad.
8. Run all lower oven tests (DSOE305T)
This test is similar to RUN ALL TESTS with the exception that only the lower oven components are tested.
This test will cycle the entire lower oven (double oven models) elements, fans, lights, door interlock
switches, and door lock motors in succession. To enter this test, enter diagnostic mode (see accessing the
diagnostic section, page 18). With the unit in diagnostic mode, press the “DOWN ARROW” pad to scroll
to the RUN ALL LOWER OVEN TESTS and press the “ENTER” Pad. When you have selected this test, the

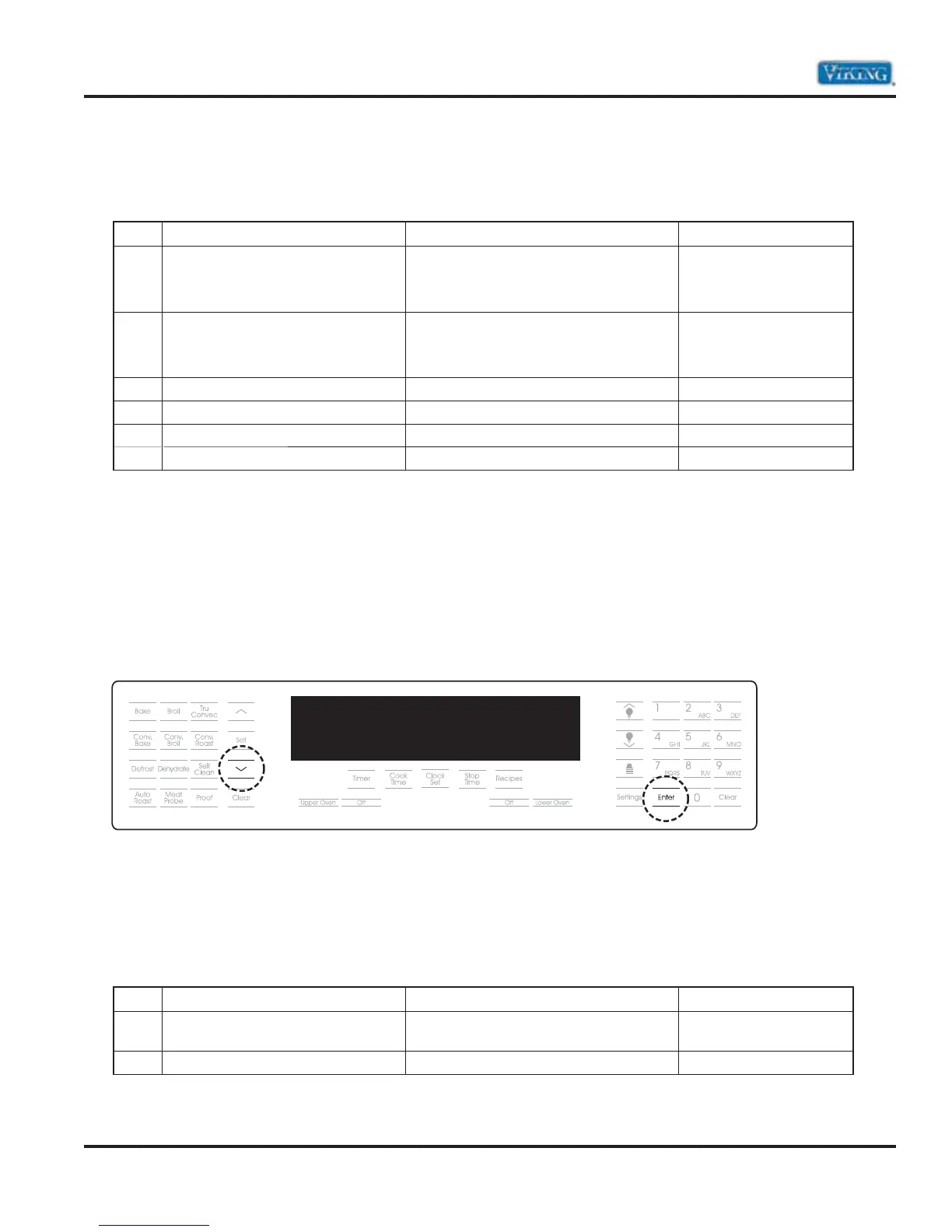

first screen you will see will be the one shown below.
To begin the test, select either “SET” or “ENTER” pad. Once the test has begun, use the “ENTER” pad,
“UP ARROW”, or “DOWN ARROW” pad to cycle through the tests.
The following is a table consisting of all the individual components that can be tested in this program.
To scroll through each test, use the “DOWN ARROW” or “UP ARROW” pad, and then press “SET” or
“ENTER” to run the selected component test.
Step Test Result To Change Test
1 Lower Inner Bake Element SKIP THIS TEST
(Not used on DSOE and DDOE models)
Enter, Up or Down arrow
2 Lower Outer Bake Element Run bake element*** Enter, Up or Down arrow
***If no amperage is read, check STEP 1 (Inner Bake Element). If amperage is read, the plug on the relay
board is reversed.
