Service Diagnostics and Procedures

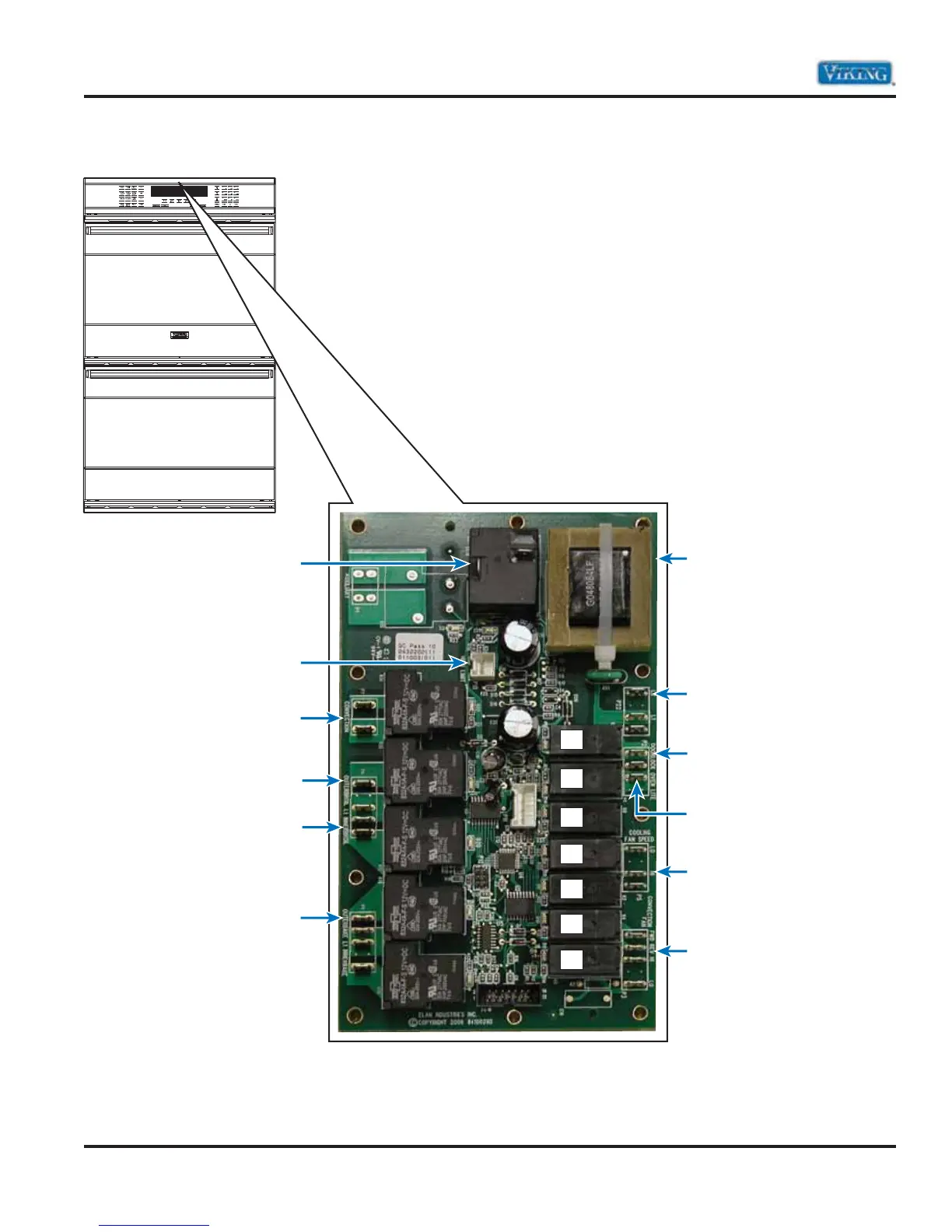

Parts Location–Relay Board
(P7)
Convection
Element
(K17)
Line
Break
(P10)
High Limit
(P6)
Outer Broil
(P6)
Inner Broil
(P9)
Bake
(P2)
Oven Door
Light
(P2)
Oven Door
Lock Motor
(P5)
Cooling Fan
Motor
(P3)
Convection Fan
Motor
(P-4)
Power
Supply
(P22)
Line Input
K1
K2
K3
K4
K5
K6
K7
