Service Diagnostics and Procedures
Meat Probe Socket
1. Slide unit out of installation (in order to
replace the meat probe socket, the side cover
has to be removed from the cabinet).
2. Remove door (see Door Removal, page
54) oven racks and rack supports (see Rack
Support, page 60).
3. Remove screws and right side trim.
4. Remove screws and vent assemblies.
5. Remove screws and front frame.
6. Remove side cover screws, slide out side cover
and remove insulation.
7. Meat probe socket is now accessible.
8. From inside the oven
cavity, remove nut and
toothed washer
to repair or replace
meat probe socket.
9. Reverse procedure to reinstall.
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit before servicing.
Wires removed during disassembly must be replaced on proper terminals to insure correct earth ground and
polarization. After servicing, reconnect electrical power.

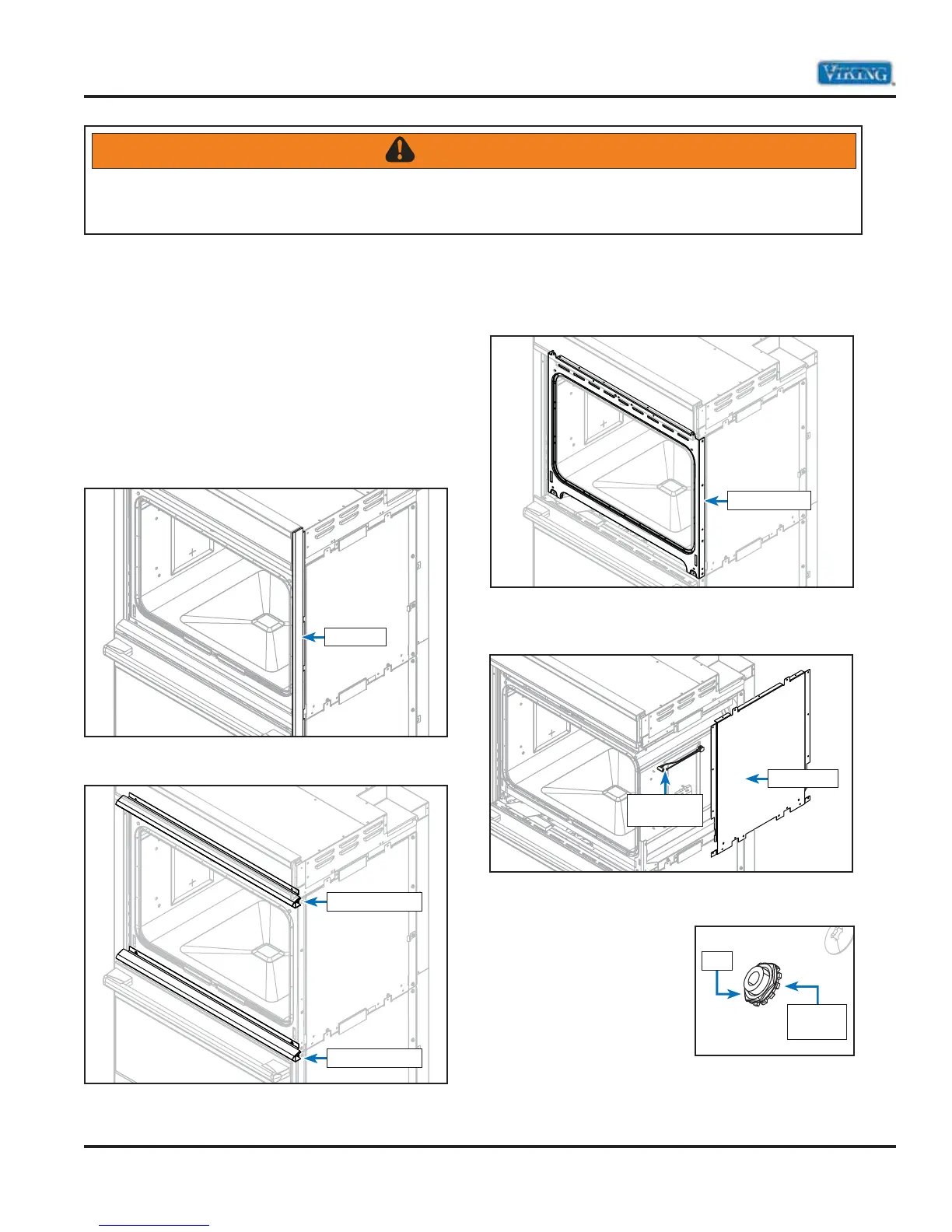

Side Trim
Vent Assembly
Vent Assembly
Front Frame
Side Panel
Meat Probe
Socket
Toothed
Washer
Nut
