Service Diagnostics and Procedures
Relay Board Diagnosis
Checking the door lock position switches

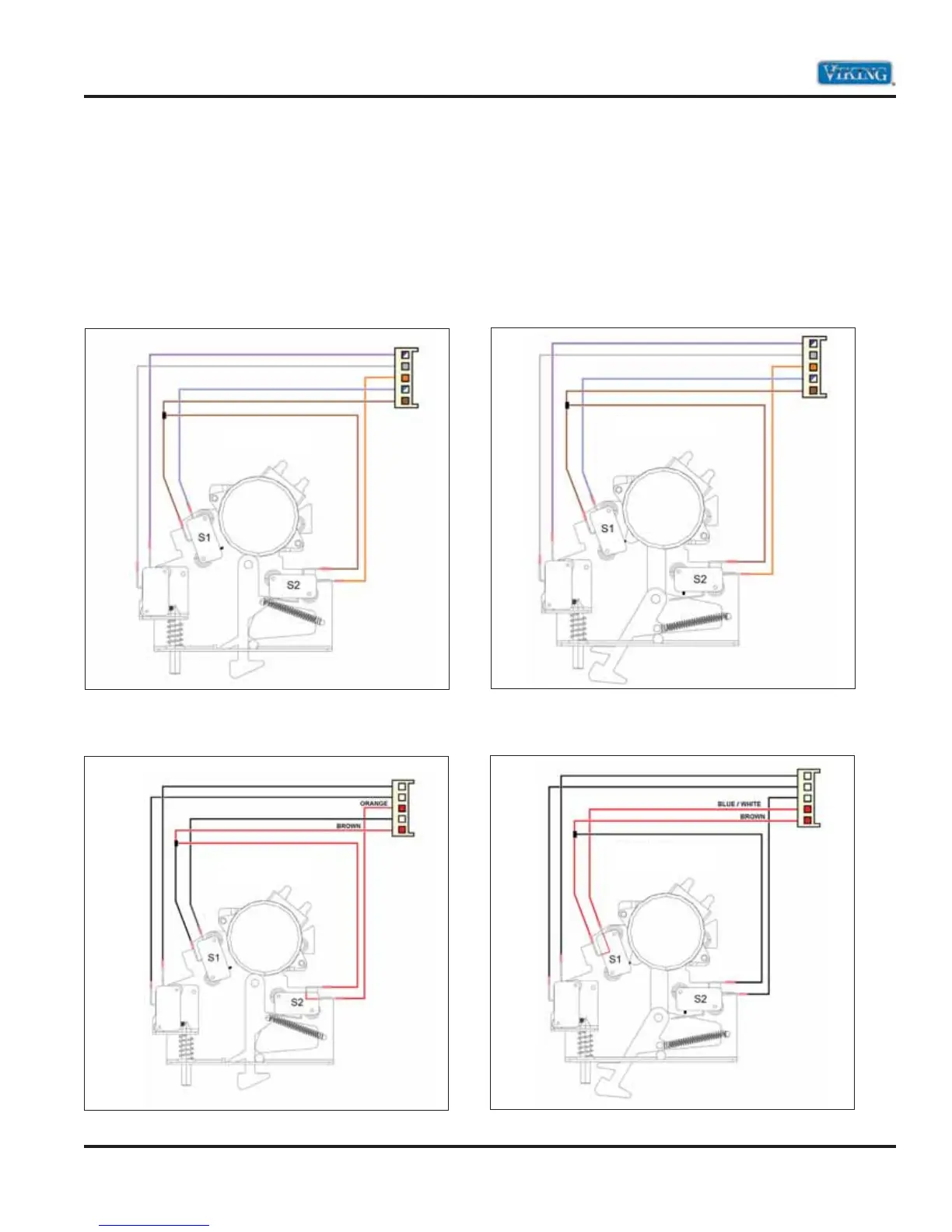

With the door in the unlocked position, the S1
switch (N.O.) is being activated by the motor cam.
Shown below are the switch positions and wire
colors. To test, ohm out the wires between blue
and light brown. The reading should be zero (0) ї.
The S2 switch is N.O. and will read infinite ohms ()
when the door is unlocked.
Shown below is the closed circuit in red.
When the door locks, the S1 switch (N.O.) is no
longer in contact with the motor cam and will read
infinite ohms (). The S2 switch is N.O. and should
close when the door is locked. To test, ohm out the
orange and light brown wires. The reading should
read zero (0) ї when the door is locked.
Shown below is the closed circuit in red.
Door Latched Door Unlatched
Door Latched Door Unlatched
