Section B – Cabinet
Door Tab
REMOVE AND REINSTALL
The door tab prevents the door pan assembly from being
raised and unlatched while the compactor is operating in
AUTO DELAY mode. If the door tab is chipped or broken,
replace it.

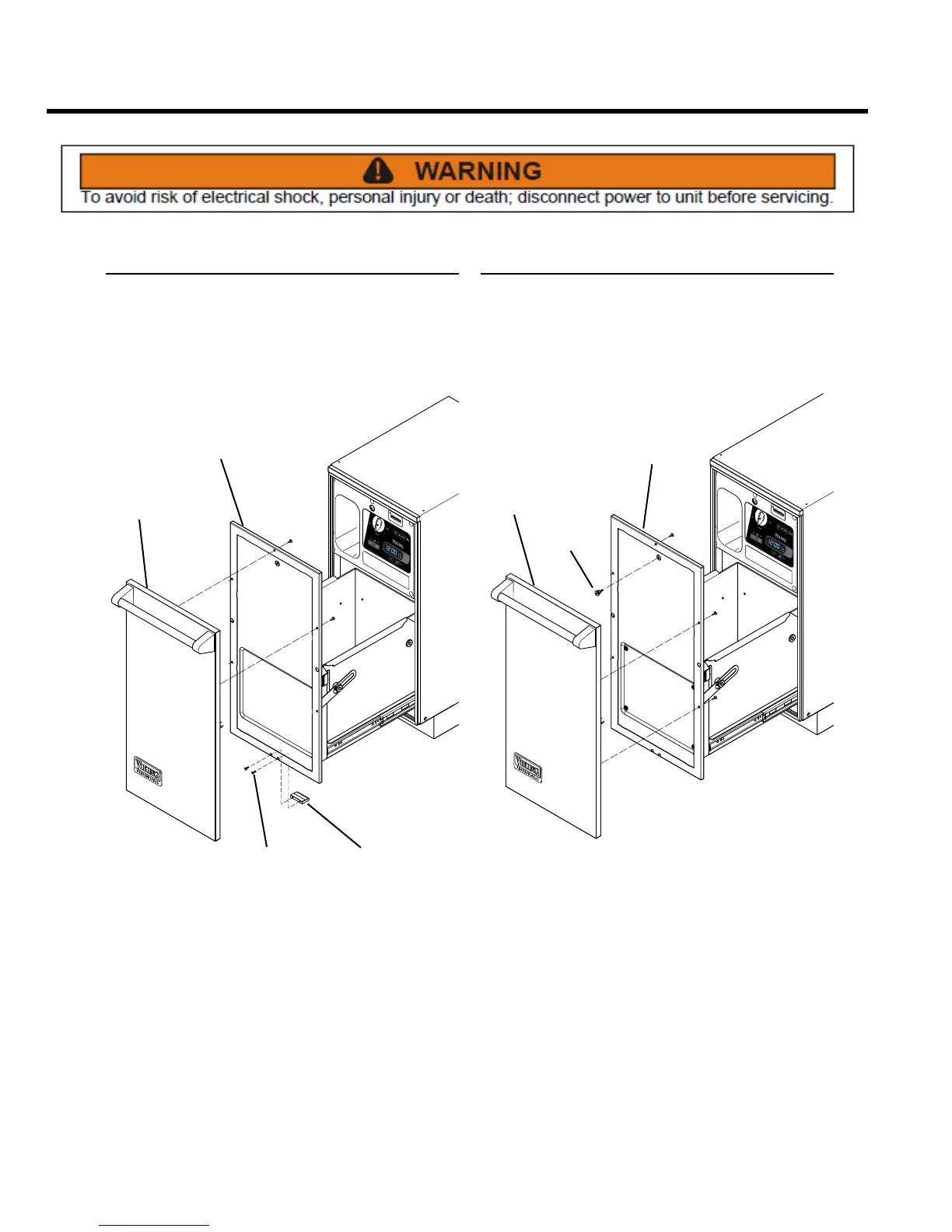

DOOR PAN
ASSEMBLY
DECORATIVE
DOOR PANEL
DOOR TAB
2 SCREWS
1. Remove the decorative door panel (see Cabinet,
Decorative Door Panel) to access the door pan
assembly.
2. Remove the two Phillips head screws that attach the
door tab.
3. Re-assemble in reverse order.
Safety Interlock Actuator
REMOVE AND REINSTALL
This safety device prevents the compactor from
operating except when the door is closed. NOTE: If the
interlock actuator should break o, the compactor will
not function; replace it promptly.
DOOR PAN
ASSEMBLY
DECORATIVE
DOOR PANEL
ACTUATOR
1. Remove the decorative door panel (see Cabinet,
Decorative Door Panel) to access the door pan
assembly.
2. Remove the damaged actuator.
3. Push the replacement actuator in place on the door
pan. NOTE: Conrm that the actuator is fully seated.
4. Re-install the decorative door panel.
