Viking FCU150 - Section D - Electrical Components

22
A
G
B
C, D, E
H
J, K
I
F
L

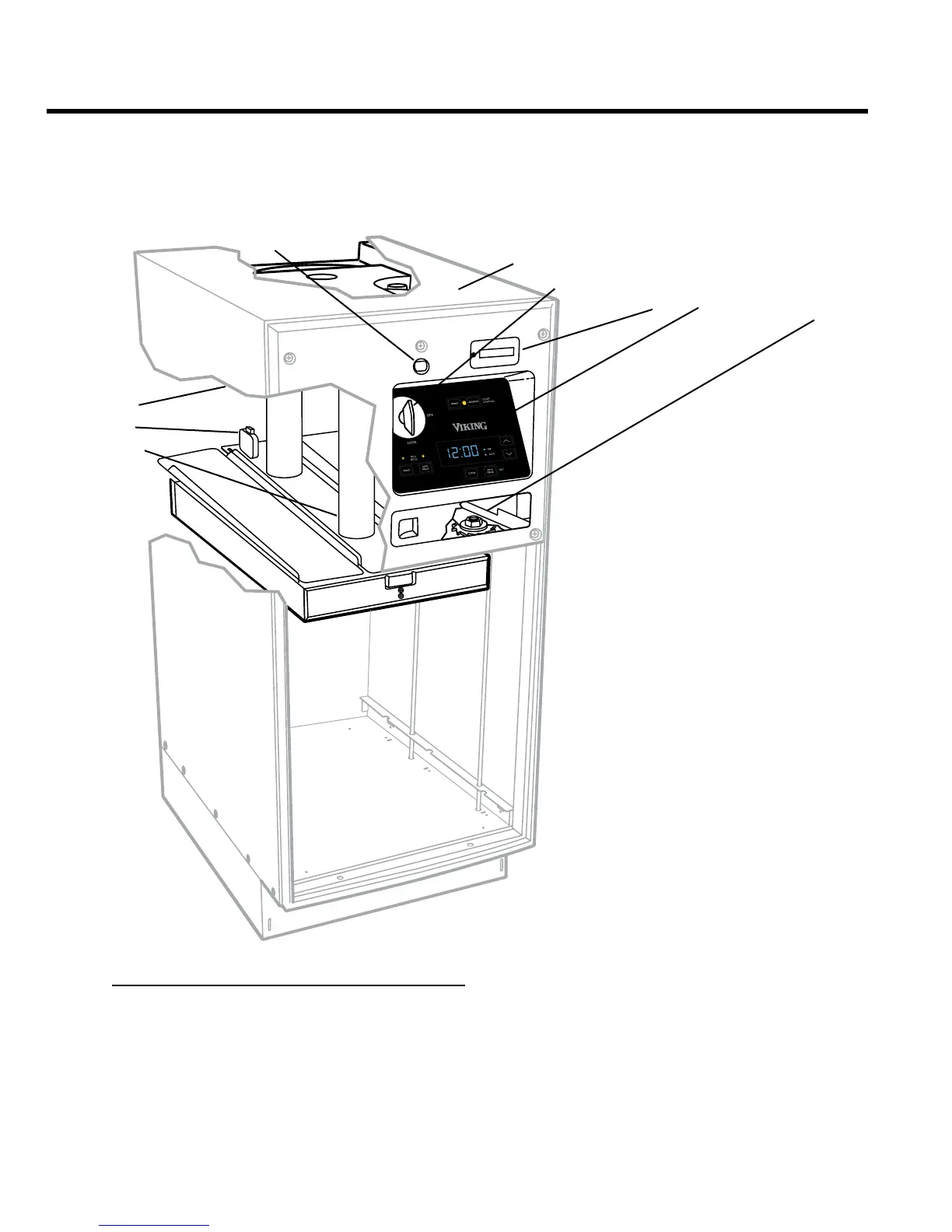

Legend
A. Cabinet Cover
B. Control Panel Assembly
C. Display Module Assembly
D. Power Supply Board
E. Control Board
F. Cabinet Safety Interlock Switch
G. Key Switch Assembly
H. Upper Limit Switch Assembly
I. Lower Limit Switch
J. Motor Centrifugal Switch Assembly
K. Motor Capacitor
L. Odor Disk Gear Motor Assembly
Section D – Electrical Components
