Section A – Installation
Your compactor has been designed to require minimum
space without loss of capacity.

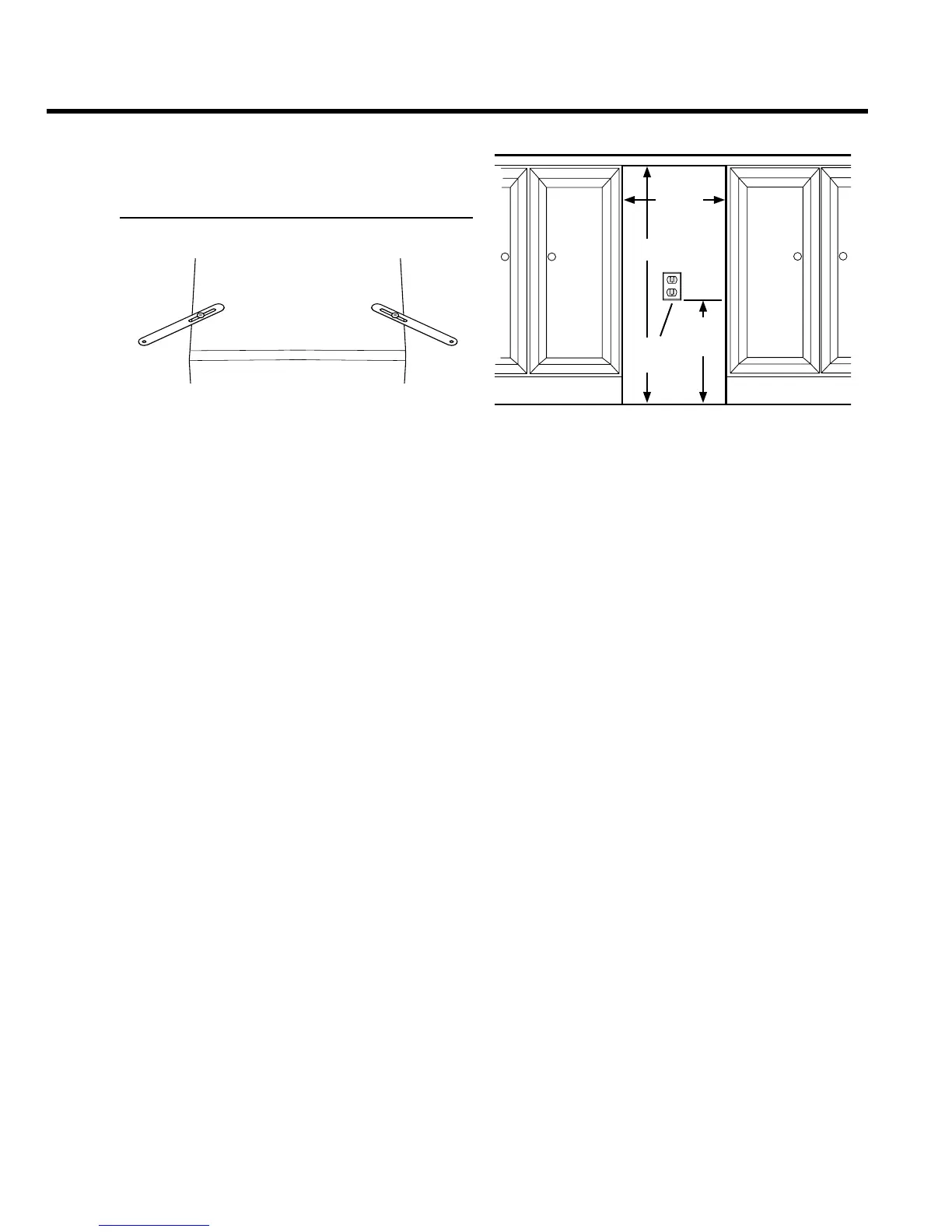

Built-in Installation
MOUNTING STRAPS
TOP OF
COMPACTOR
FRONT OF
COMPACTOR
Two under-counter mounting straps are provided. Use
these straps to secure the compactor to the underside
of a countertop.
Fasten the slotted end of the straps to the compactor
using the holes in the top of the compactor cabinet as
shown.
NOTE: When installation compactor under granite or
solid surface countertops, bend the mounting straps so
they can be secured to the adjacent cabinetry.
UNDERCOUNTER OPENING
Opening
15" Wide
34-1/2" High
22" Deep
15" W
34
5
/8" H
24" D
12" MIN
ELECTRICAL
OUTLET
The compactor requires an under-counter opening 15-in.
wide, 34-5/8-in. high, and 24-in. deep.
Plan to provide an electrical outlet in the opening that
meets all applicable electrical codes and requirements.
See “Grounding Instructions” on Page 2 for specic
information.
