Viking VDSC536 - Heating Elements and Control Panel Removal

Disassembly
©2009 Viking Preferred Service 35
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.

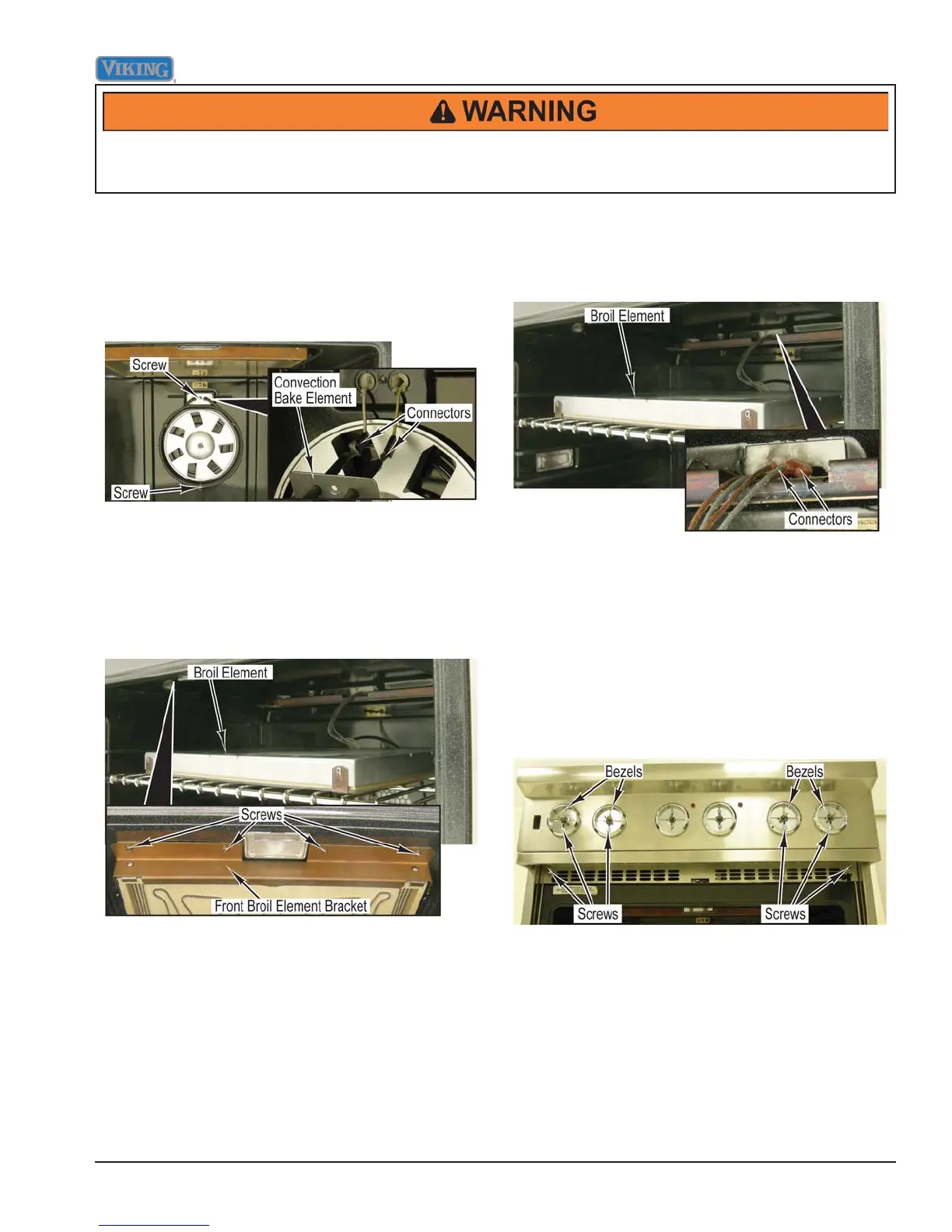

Convection Bake Element Removal
Condition Requirements:
Convection Fan Cover Removed
1. Remove two screws that attach the convection bake
element to the oven liner.
2. Mark and disconnect two wires from convection
element.
3. Reverse procedure for installation.
Broil Element Removal
Condition Requirements:
Door Assembly Removed
1. Place oven rack in second position from top.
2. Remove four screws and front broil element bracket
from oven cavity.
3. Remove broil element from back broil element
bracket and lower broil element to the oven rack.
4. Pull connectors into the oven cavity.
5. Mark and disconnect four connectors from broil
element.
Note: During installation, make sure broil connectors
go back through the oven liner.
6. Reverse procedure for installation.
Control Panel Assembly Removal
Condition Requirements:
Door Lowered
1. Remove all knobs.
2. Remove four screws and bezels from control panel
assembly.
3. Remove two screws from control panel assembly.
