Viking VDSC536 - Heating Element Strip Circuits

Wiring Diagrams
48 ©2009 Viking Preferred Service

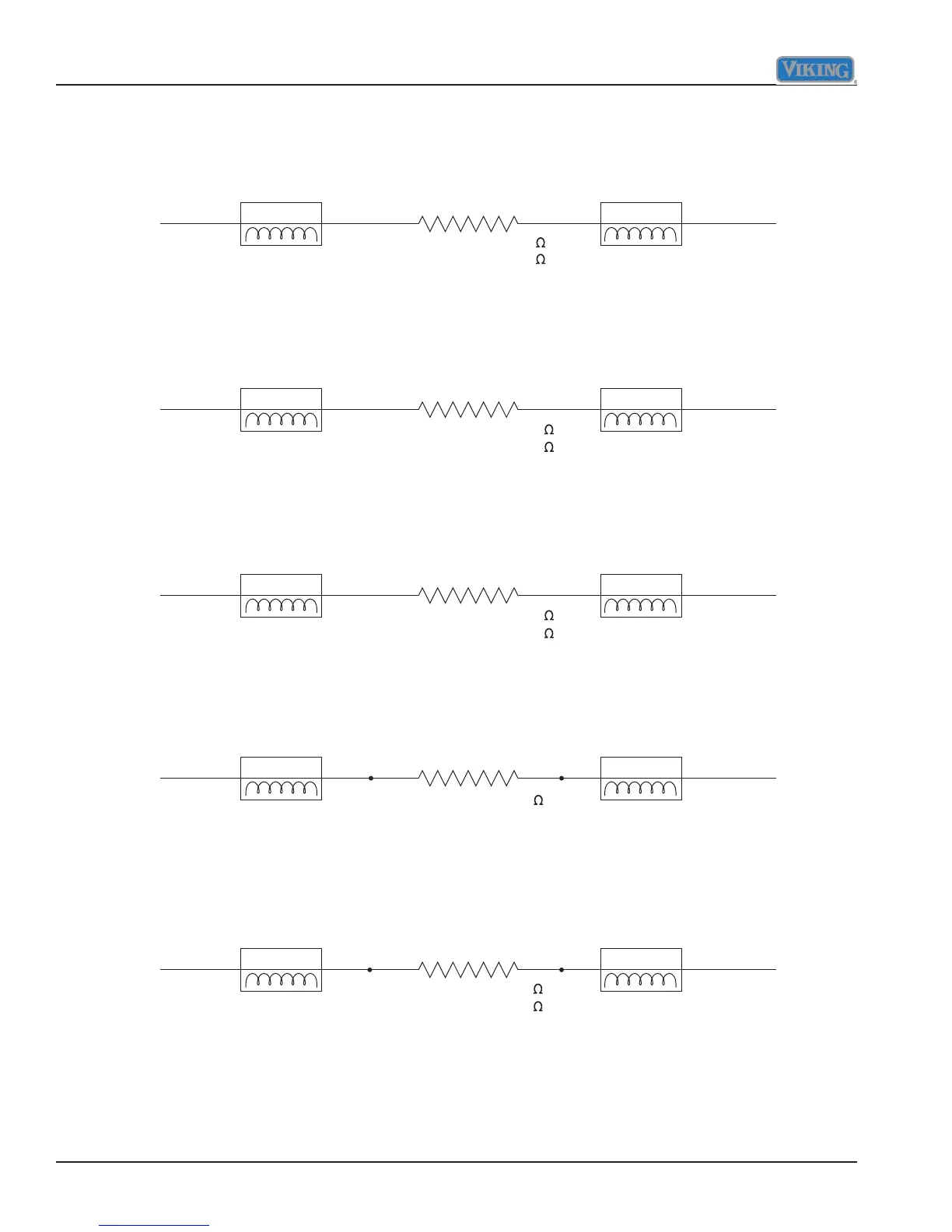

Strip Circuits
CONVECTION ELEMENT
(30", 36", & 48" RH Oven) 19.0
(48" LH Oven) 18.5
L1 L2
RED WHT
RELAY
K14
LINE
BREAK RELAY
K17
YEL BLK
OUTER BROIL ELEMENT
L1 L2
RED GREY
RELAY
K13
LINE
BREAK RELAY
K17
YEL BLK
(30", 36", & 48" RH Oven) 33.0
(48" LH Oven) 43.7
INNER BROIL ELEMENT
L1 L2
RED PURPLE
RELAY
K12
LINE
BREAK RELAY
K17
YEL BLK
(30", 36", & 48" RH Oven) 29.3
(48" LH Oven) 39.3
OUTER BAKE ELEMENT
L1 L2
RED BLUE
RELAY
K11
LINE
BREAK RELAY
K17
BLKWHT YELWHT
(30", 36", & 48" RH Oven) 38.0
(48" LH Oven) NOT EQUIPPED
INNER BAKE ELEMENT
L1 L2
RED ORG
RELAY
K10
LINE
BREAK RELAY
K17
WHT YEL BLKWHT
(30", 36", & 48" RH Oven) 39.0
(48" LH Oven) 32.4
