Viking VGSC548 - Bake Burner Orifi Ce Removal; Broil Burner Igniter Removal; Convection Fan Assembly Removal

Disassembly
©2010 Viking Preferred Service 29
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.

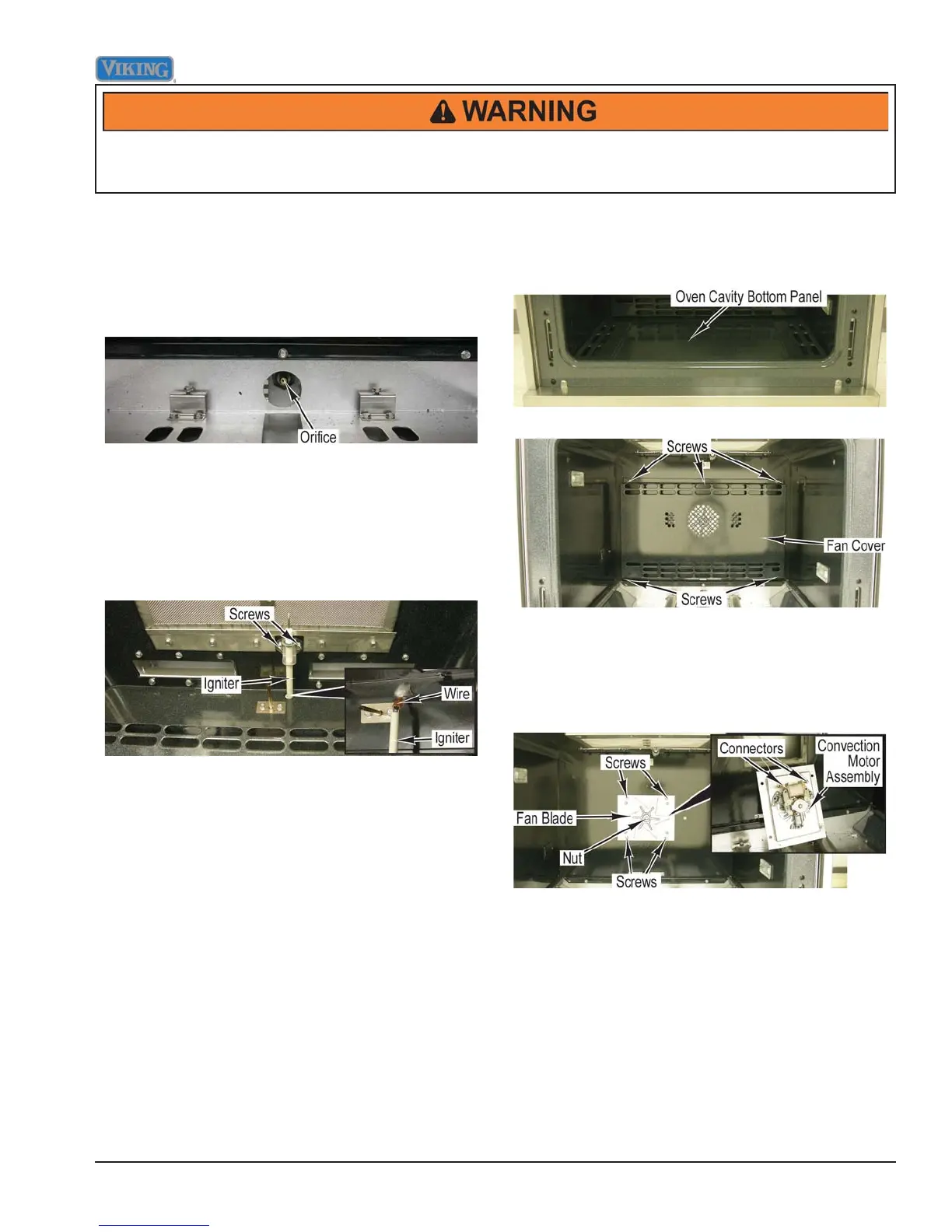

Bake Burner Orifi ce Removal
Condition Requirements:
Bake Burner Removed
Note: Before removing orifice, secure gas tubing to
avoid bending or twisting of gas tubing.
1. Remove orifi ce from manifold.
2. Reverse procedure for installation.
Broil Burner Igniter Removal
Condition Requirements:
Door Assembly Removed
1. Remove two screws and pull igniter wire into oven
cavity.
2. Disconnect wire to remove igniter from range.
(View of top of oven cavity)
3. Reverse procedure for installation.
Convection Fan Assembly Removal
Condition Requirements:
Rack Supports Removed
1. Lift to remove oven cavity bottom panel from range.
2. Remove fi ve screws and fan cover from oven cavity.
2. Remove four outer screws and convection motor
assembly from oven cavity.
3. Mark and disconnect two connectors from convection
motor assembly.
4. Remove left hand nut and fan blade from convection
fan.
5. Reverse procedure for installation.
