Viking VGSC548 - Orifi Ce Removal; Burner Base Assembly Removal; Surface Burner Valve Removal

Disassembly
34 ©2010 Viking Preferred Service
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.

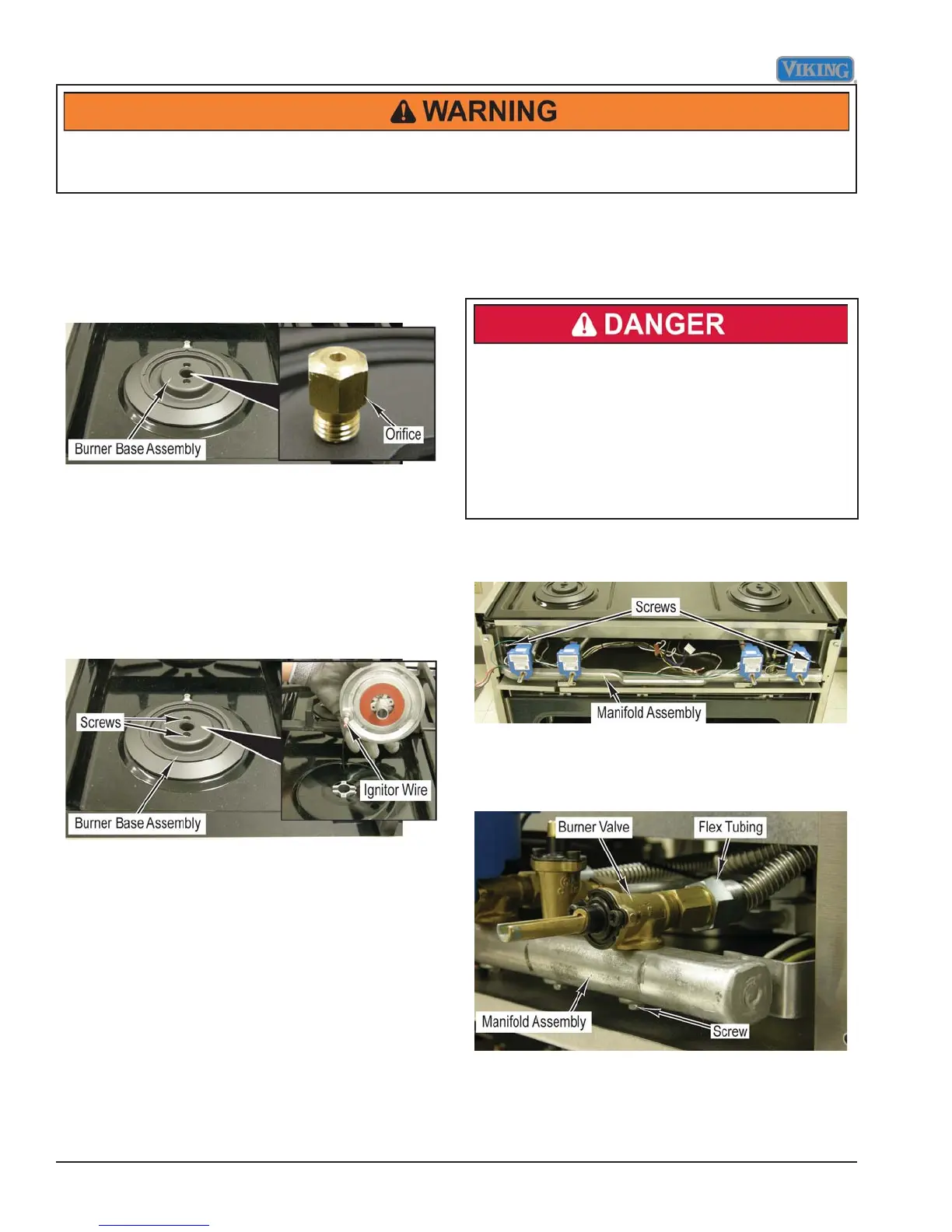

Orifi ce Removal
Condition Requirements:
None
1. Remove grates, burner cap, and burner head from
burner base assembly.
2. Remove orifi ce from jet holder.
3. Reverse procedure for installation.
Burner Base Assembly Removal
Condition Requirements:
None
1. Remove grates, burner cap, and burner head from
burner base assembly.
2. Remove two screws and lift burner base assembly
from range.
3. Disconnect wire from burner base assembly.
4. Reverse procedure for installation.
Surface Burner Valve Removal
Condition Requirements:
Control Panel Assembly Removed
Gas Shut Off
Gas leak hazard. To avoid risk of personal injury
or death, leak testing of the appliance must
be conducted according to the manufacturer’s
instructions. Before placing appliance in operation,
always check for gas leaks with soapy water solution.
DO NOT USE AN OPEN FLAME TO CHECK FOR
GAS LEAKS.
1. Remove two of the screws that secure manifold
assembly to range.
2. Pull to remove spark module from burner valve.
3. Remove fl ex tubing from back of burner valve.
4. Remove screw and burner valve from manifold
assembly.
5. Reverse procedure for installation.
6. Perform gas leak test.
