Disassembly
32 ©2010 Viking Preferred Service
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.

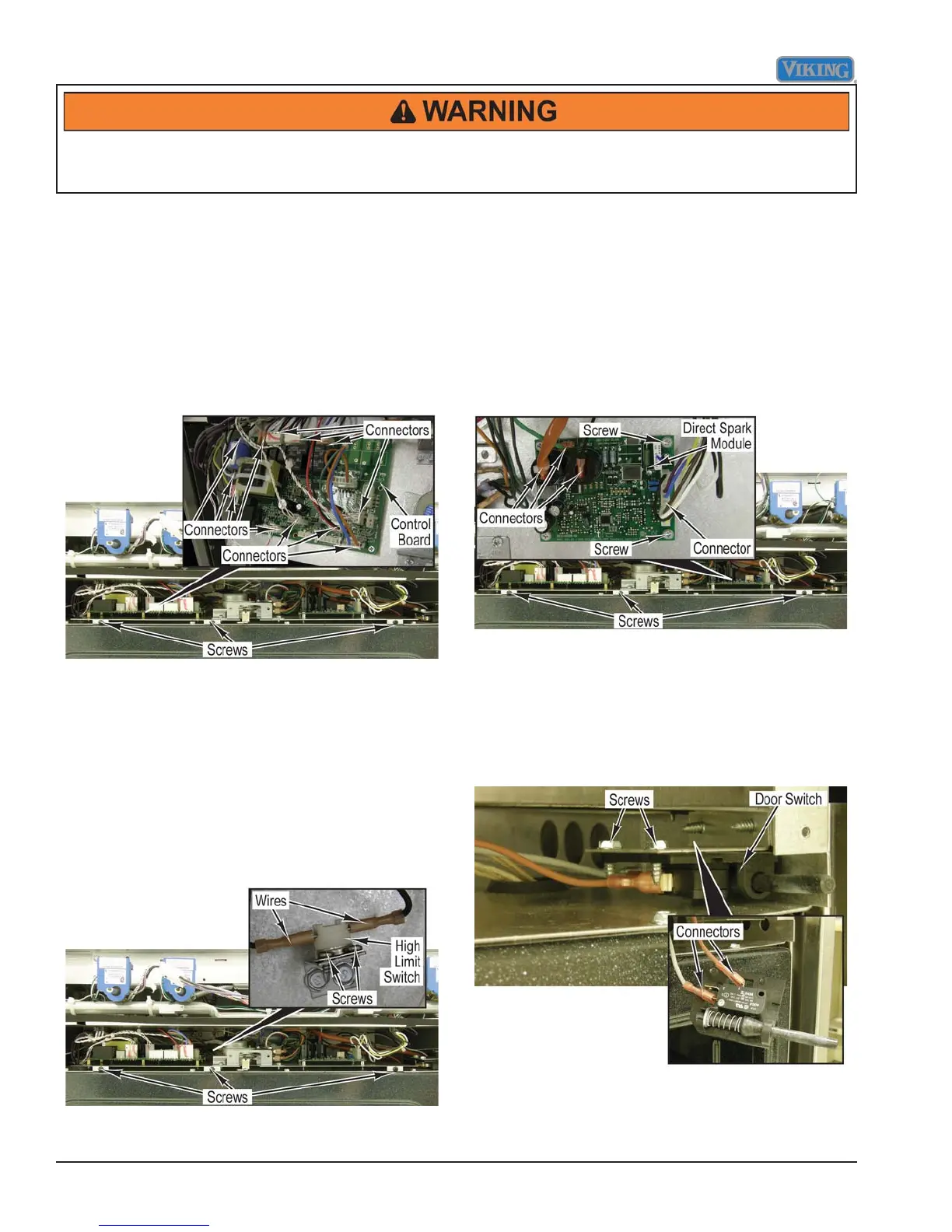

Control Board Removal
Condition Requirements:
Control Components Accessed
1. Remove screws and slide component tray forward.
Note: VGSC530 shown. Other component tray
configurations may be different on other models.
2. Mark and disconnect wires and connectors from
control board. (See page 14)
3. Remove four screws and control board from
component tray.
4. Reverse procedure for installation.
High Limit Switch Removal
Condition Requirements:
Control Components Accessed
1. Remove screws and slide component tray forward.
Note: VGSC530 shown. Other component tray
configurations may be different on other models.
2. Mark and disconnect wires from high limit switch.
3. Remove two screws and high limit switch from
component tray.
4. Reverse procedure for installation.
Direct Spark Module Removal
Condition Requirements:
Control Components Accessed
1. Remove screws and slide component tray forward.
Note: VGSC530 shown. Other component tray
configurations may be different on other models.
2. Mark and disconnect connectors from direct spark
module.
3. Remove four screws and direct spark module from
component tray.
4. Reverse procedure for installation.
Door Switch Removal
Condition Requirements:
Control Components Accessed
1. Remove two screws and door switch from range.
2. Mark and disconnect two connectors from door
switch.
3. Reverse procedure for installation.
