9) FITTING THE BARS
Fit the bar supports (Fig. 36/b) on the stairlift frame (Fig.
36/a), aligning the locator pins provided (Fig. 36/c).
Fix the bars with the screws supplied (Fig. 36/d).
Then connect the sheaths
9.1) Independent bars
In the bottom of the bar, connect the wire (Fig. 36/e) to
the platform interlock system (Fig. 36/f).
9.2) Retractable bars
In the bottom of the bar, connect the lever (Fig. 36/e)
with the screw and the self-locking nut (Fig. 36/h).

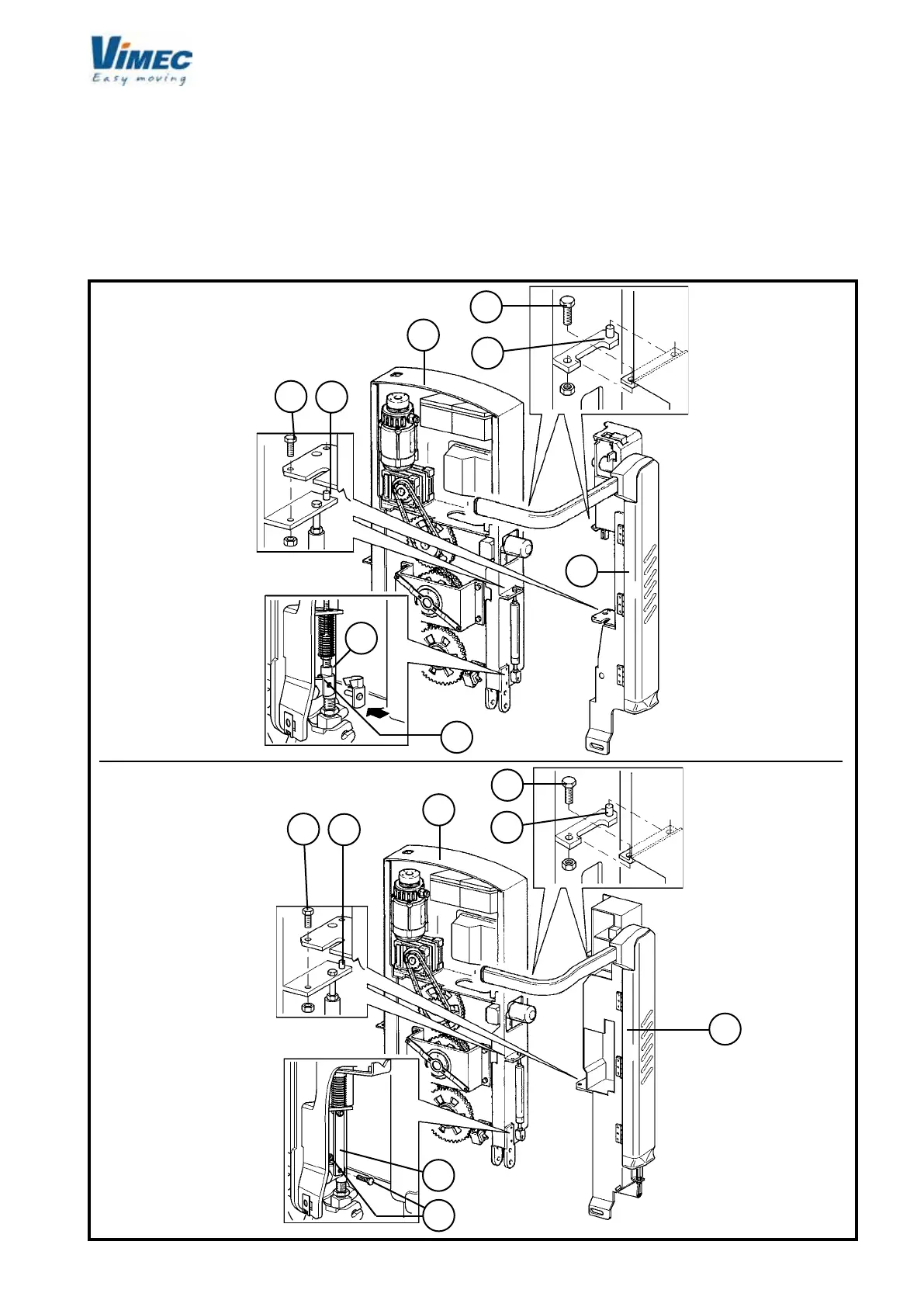

FIG.36
