31
a
a

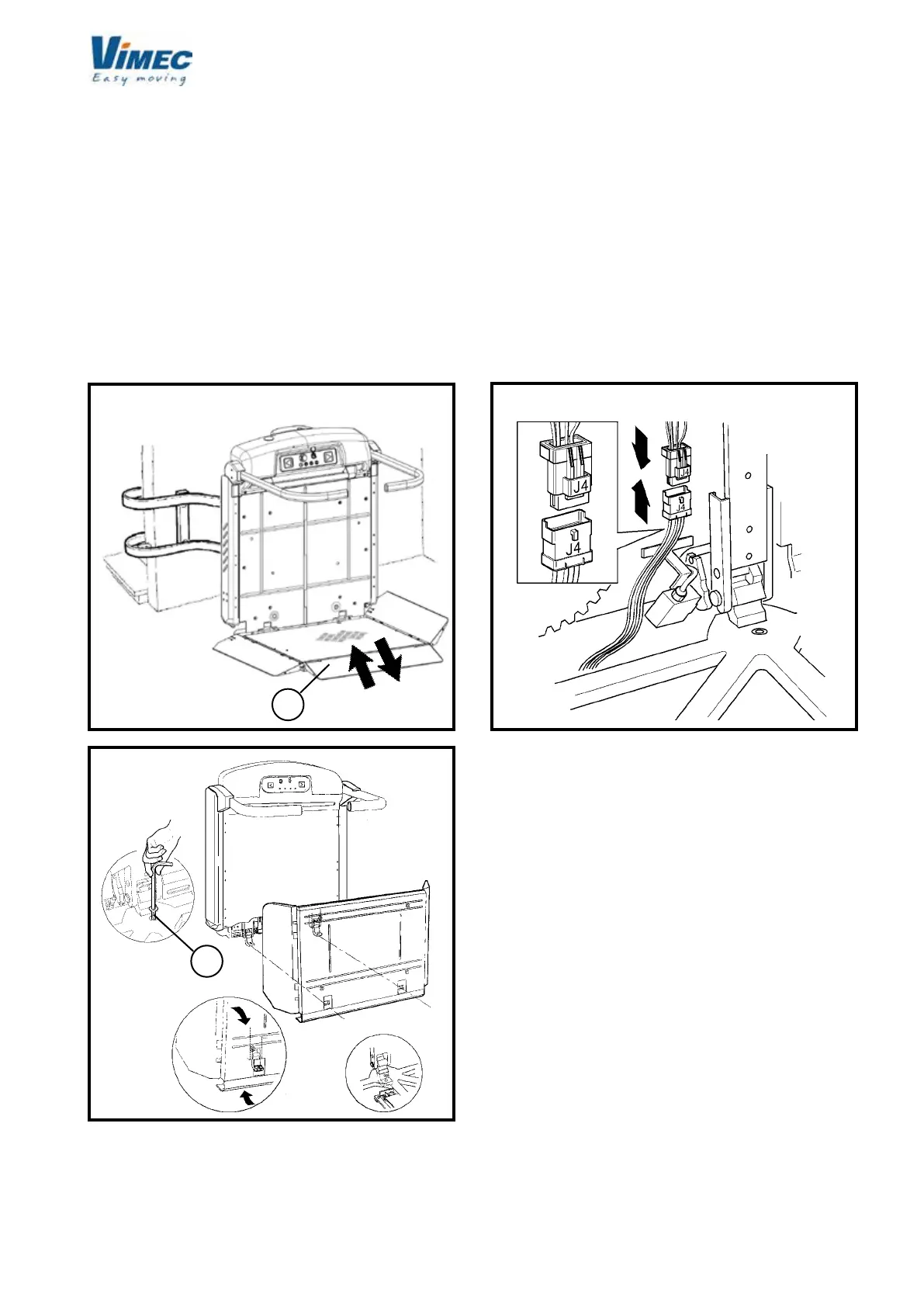

7) ASSEMBLING THE PLATFORM WITH DRIVEN
FRONT ACCESS (B.I. - B.R.)
On customer request it is possible to have a platform
with overturning front side (Fig. 37/a).
Such a platform permits, on the lower oor only, to
access/go down perpendicularly to the machine.
7.1) Assembling the platform
a) Remove the top plate from the platform by undoing
FIG.37
FIG.39
FIG.38
the relative screws.
b) Make sure that the two platform supports, xed by a
wedge and a plastic clamp, are in the assembly position
(Fig. 40/a/b).
c) Fit the platform, keeping it vertical and turning it
through 90° as shown in (Fig. 38).
d) Fix the platform to the frame using the TSPCE M8
at-head screws provided (Fig. 38/a).
e) Plug in the connector j4 (Fig. 39).
