vimec V65 B.R. User Manual

32
c
a
b
d
125
i
e h
b
c e
a
f
d
g
h

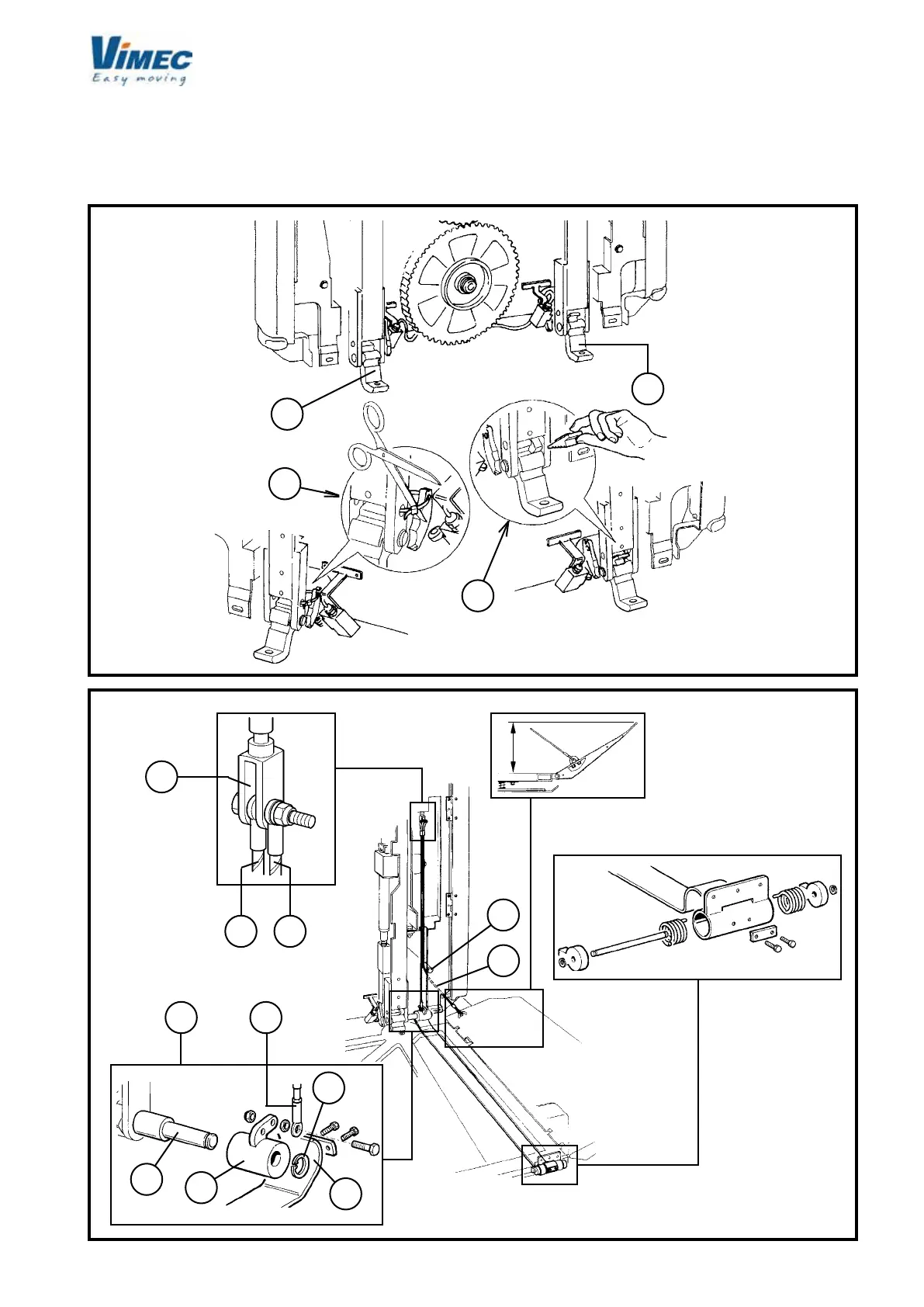

- Insert the eccentric (Fig. 41/f) with front guard board
handling belt (Fig. 41/g) on the special pin (Fig. 41/d)
and x it with a snap ring (Fig. 41/a).
- Fix the cable eye (Fig. 41/e) to the eccentric (Fig.
41/f) using the screw, nut and lock-nut, leaving the ne-
cessary clearance to allow the rotation of the eye itself.
- Connect the wire (Fig. 41/h) to the side guard board
with the screws provided, passing it around the pin
(Fig. 41/ i).
FIG.41
FIG.40
