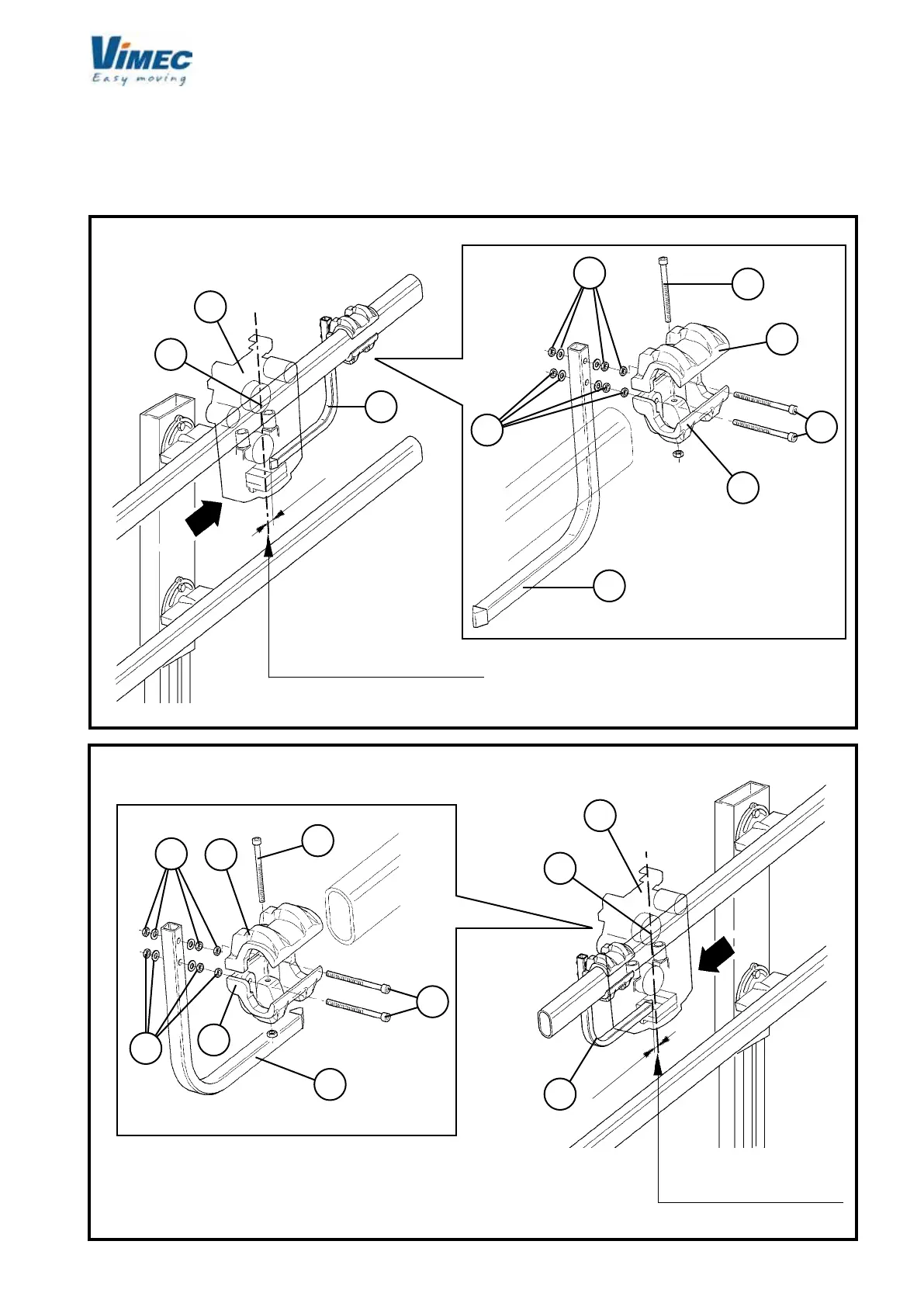

17) FITTING THE OVER-RUN DEVICE CAMS
- Set the stairlift in the stop position (Fig. 58/a - 59/a)
and mark the position of the stairlift’s centre-line on the
rails (Fig. 58/b - 59/b).
- Move the stairlift.
FIG. 58
FIG. 59
Machine centre line axis
Machine centre line axis
50 mm
- Fix the cam (Fig. 58/e - 59/e), on the rail 50 mm from
the stairlift’s centre-line marked earlier.
- Tighten all screws when done.
50 mm
