3.3) Main safety measures against risks of an elec-
trical nature
Protection against overcurrents, overloads, acci-
dental contacts and direct and indirect contacts.
- Differential circuit breaker on power supply system.
3.4) Warning and compulsory procedure signs and
data-plates
The stairlift is tted with the following warning and
compulsory procedure signs and data-plates:
- Emergency switch must be pressed before operation
in manual mode - Fig. 2/e.
- Stairlift identication plate.
- Sign for manual release of bars and platform
3.5) Supply condition
- Rails and rail connections - Fig. 7/a.
- Frame with carriages - Fig. 6.
- Set of bars - Fig. 7/f.
- Platform - Fig. 7/c.
- Casing - Fig. 7/d.
- Handwheel for manual operation - Fig. 7/e.
The system must be installed by skilled ope-
rators authorised by VIMEC.

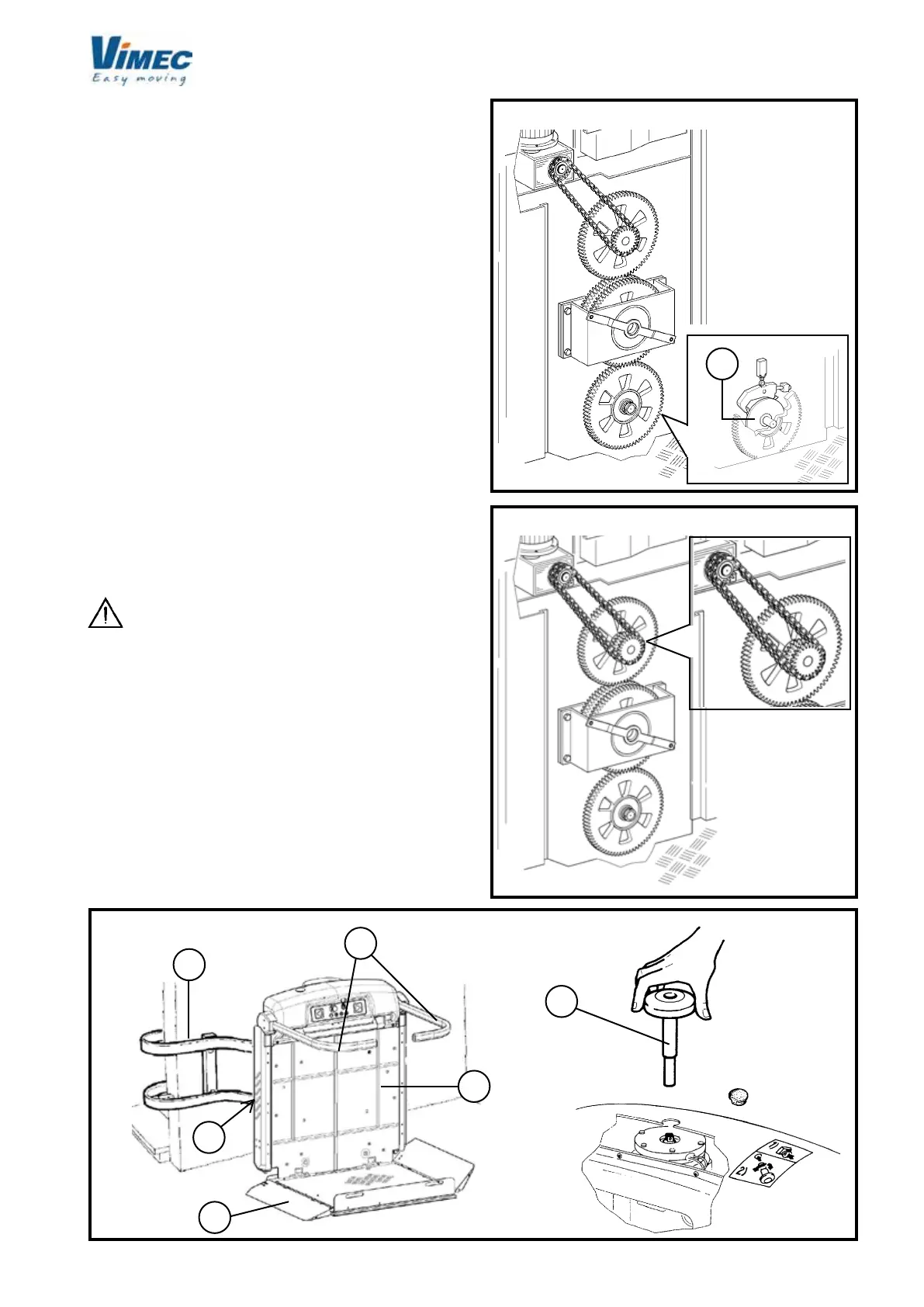

FIG.6
FIG.6 bis
FIG.7
