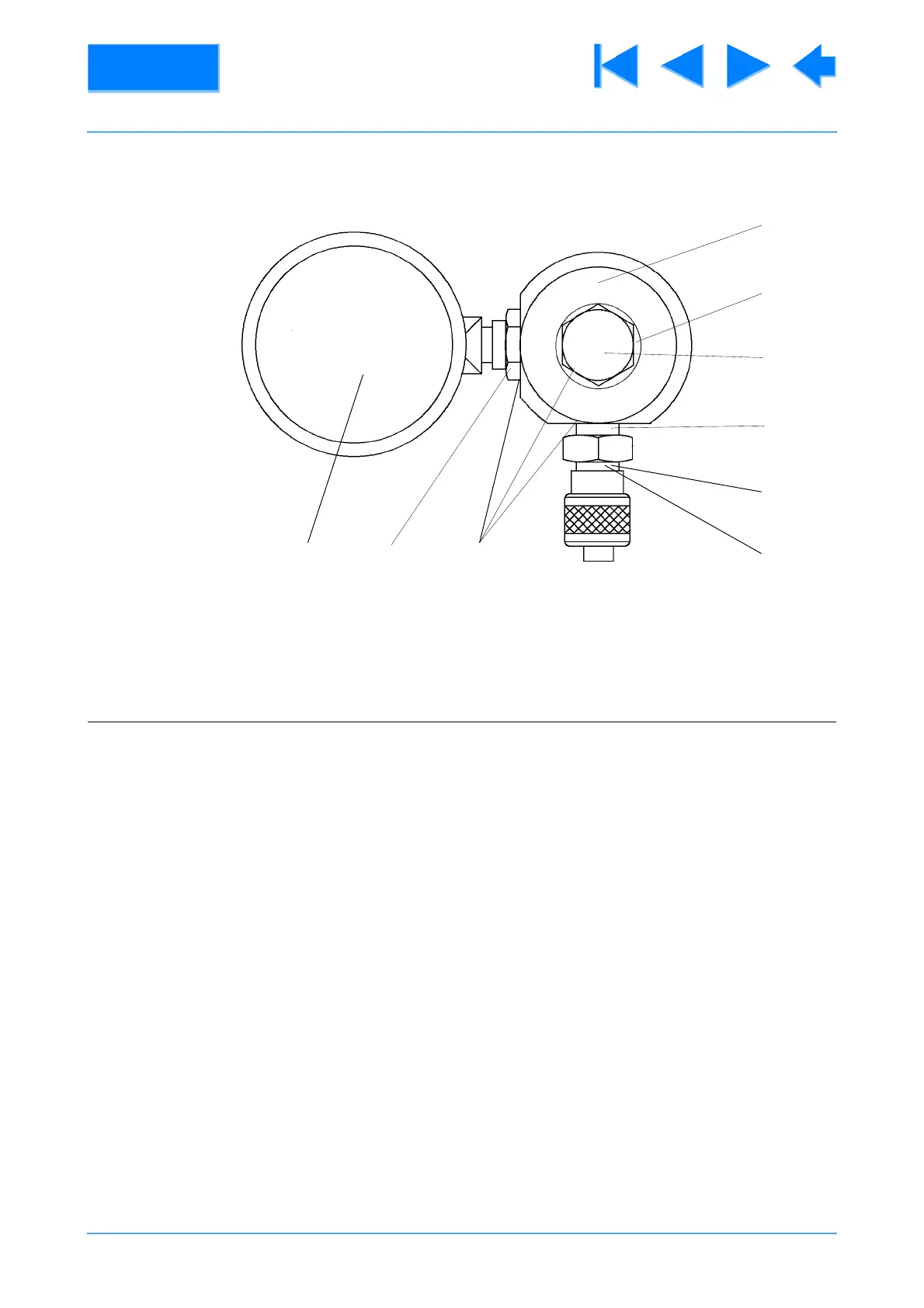

Pressure Gauge Assembly (Part No. 3702-33)
Pressure Gauge Assembly (USA) (Part No. 3054-11)
Pressure Gauge Assembly (Part No. 3702-33)
Pressure Gauge Assembly (USA) (Part No. 3054-11)
Item Name Qty Material
1 Banjo 1 Aluminium alloy HE 30 TF
2 Bonded seal 2 1/4 in. BSP, Dowty Ref PP-45-B
3 Banjo bolt 1 Mild steel BS970 EN1A
4 Bonded seal 1 2BA, Dowty Ref PP-45-3
5 Charging valve 1 Modified Part No. J005-020 - Schrader
valve No. 9886
5 Charging valve (USA only) 1 Modified Part No. J005-021 - Schrader
tank valve No. 8911
6 Valve core 1 Schrader valve core No. 230011
7 Hydraulic sealant A/R Loctite 542
8 Adaptor nut A/R Brass
9 Pressure gauge 1 Wika 0-400 psi (0-27 bar) 2 in. dia
1
2
3
4
5
987 6
