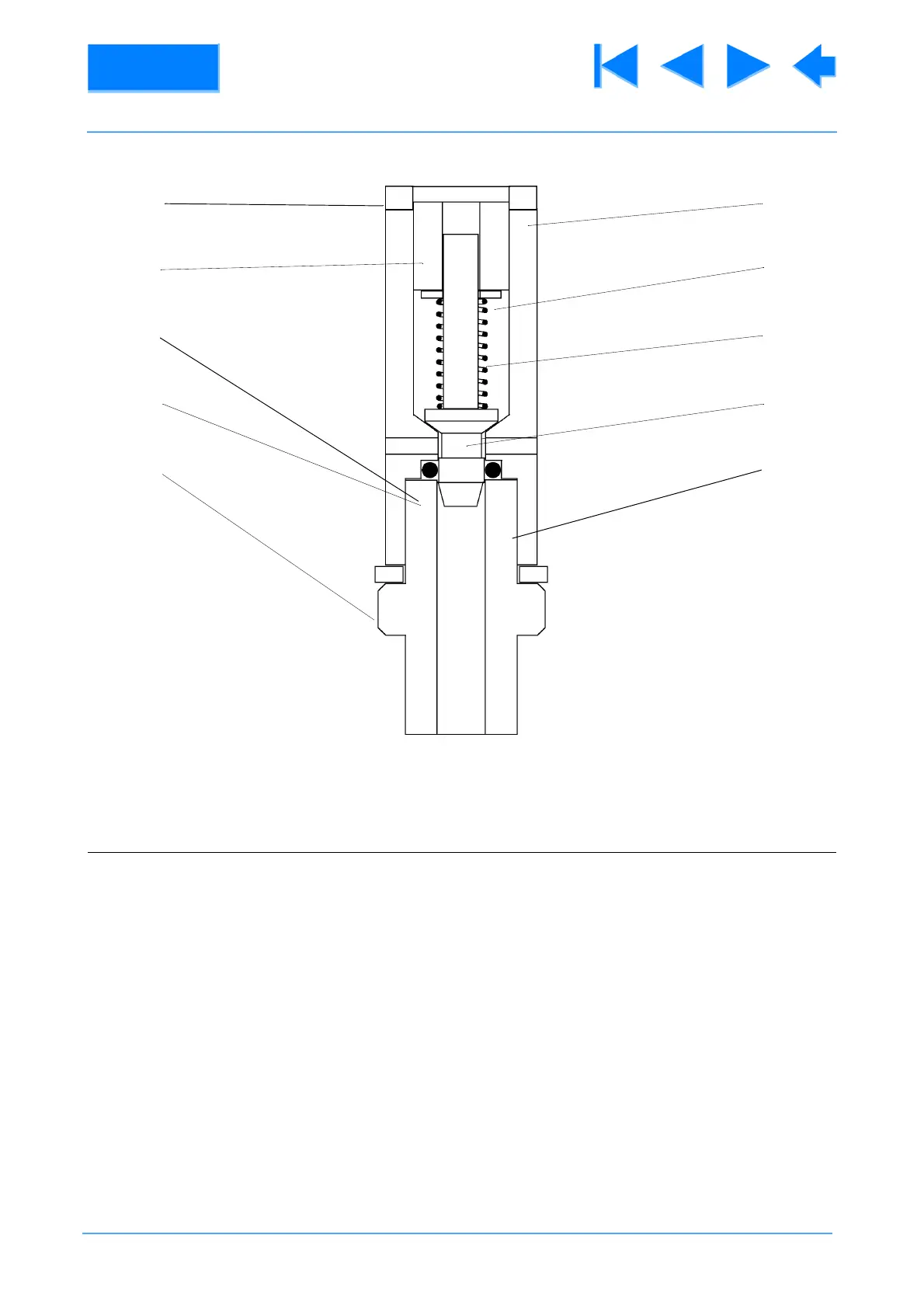

Safety Valve Assembly (Part No. 3702-26)
Relief Valve Assembly (Part No. 3374-13)
Item Name Qty Material
1 Body 1 Brass, BS2874 CZ121 Pb4
2 Small washer 1 2BA
3 Spring 1 Flexo Ref 143306
4 Spool 1 Stainless steel EN56AM
5 Spigot 1 Stainless steel EN56AM
6 Bonded seal 1 1/4 in. BSP, Dowty Ref PP-45-B
7 ‘O’ ring 1 Gaco Ref R2025
8 Silicone grease A/R MS4
9 Adjuster 1 Stainless steel EN58
10 Locking nut 1 Brass, BS2874 CZ121 Pb4
1
2
3
4
5
10
9
8
7
6
