Assembly
Column and ram
9 The arrangement of cords and chains within the column assembly is shown diagrammatically in Fig 5.1.
10 To assemble the column and ram:
10.1 Referring to Fig 6.2, assemble top tube except for top track clamps (3).

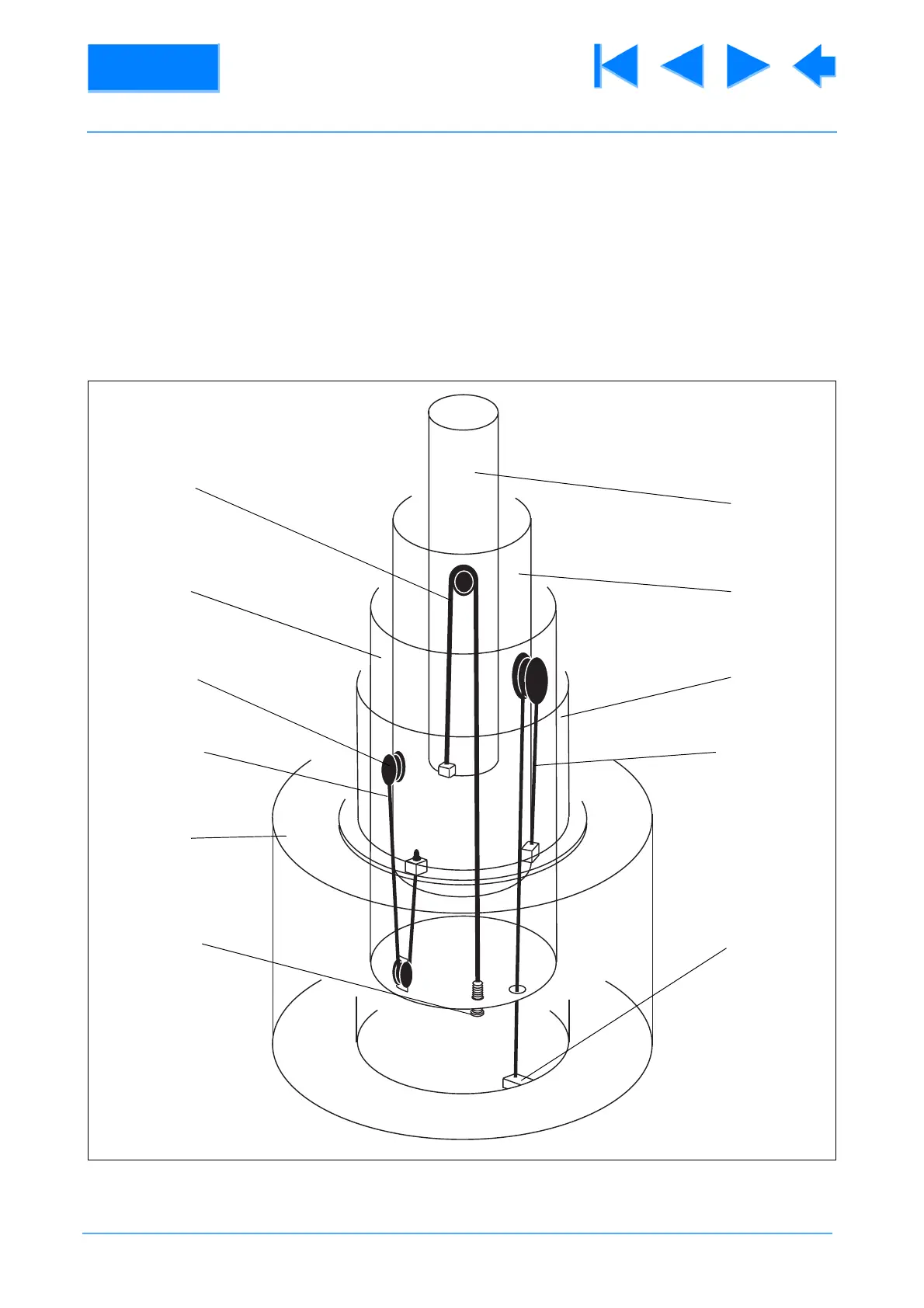

Fig 5.1 Arrangement of cords and chains in the column
Chain
Bottom
tube
Cord
adjuster
Short cord
Tank
Chain
adjuster
Long cord
Fixed
tube
Centre
tube
Top
tube
Cord
anchor
