Manual VIPA System 300V Chapter 6 Deployment CPU 31x with TCP/IP
HB130E - CPU - Rev. 11/50 6-59
The two CPs are configured by means of WinNCS. Start WinNCS and
create a project containing the function group "Ethernet". The procedure is
the same for both stations. It differs only in the parameters that must be
defined and is divided into the following 3 parts:
• basic CP configuration,
• configuration of connection blocks,
• transfer of configuration data into the CP.

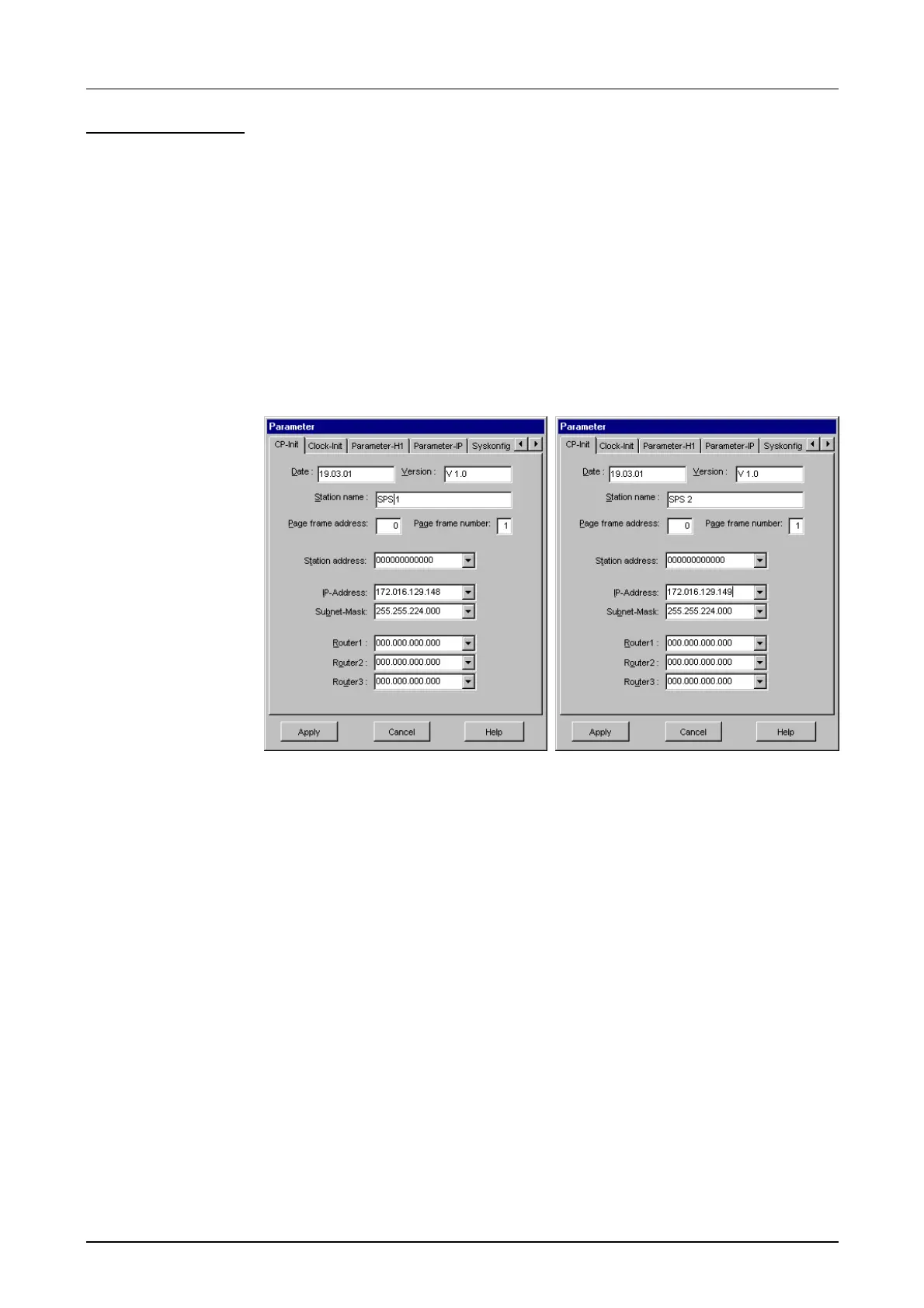

Insert two stations and select the following settings:
Station 1 Station 2
Request the required station addresses from your system administrator.
If necessary, you can enter additional settings into the configuration
windows.
