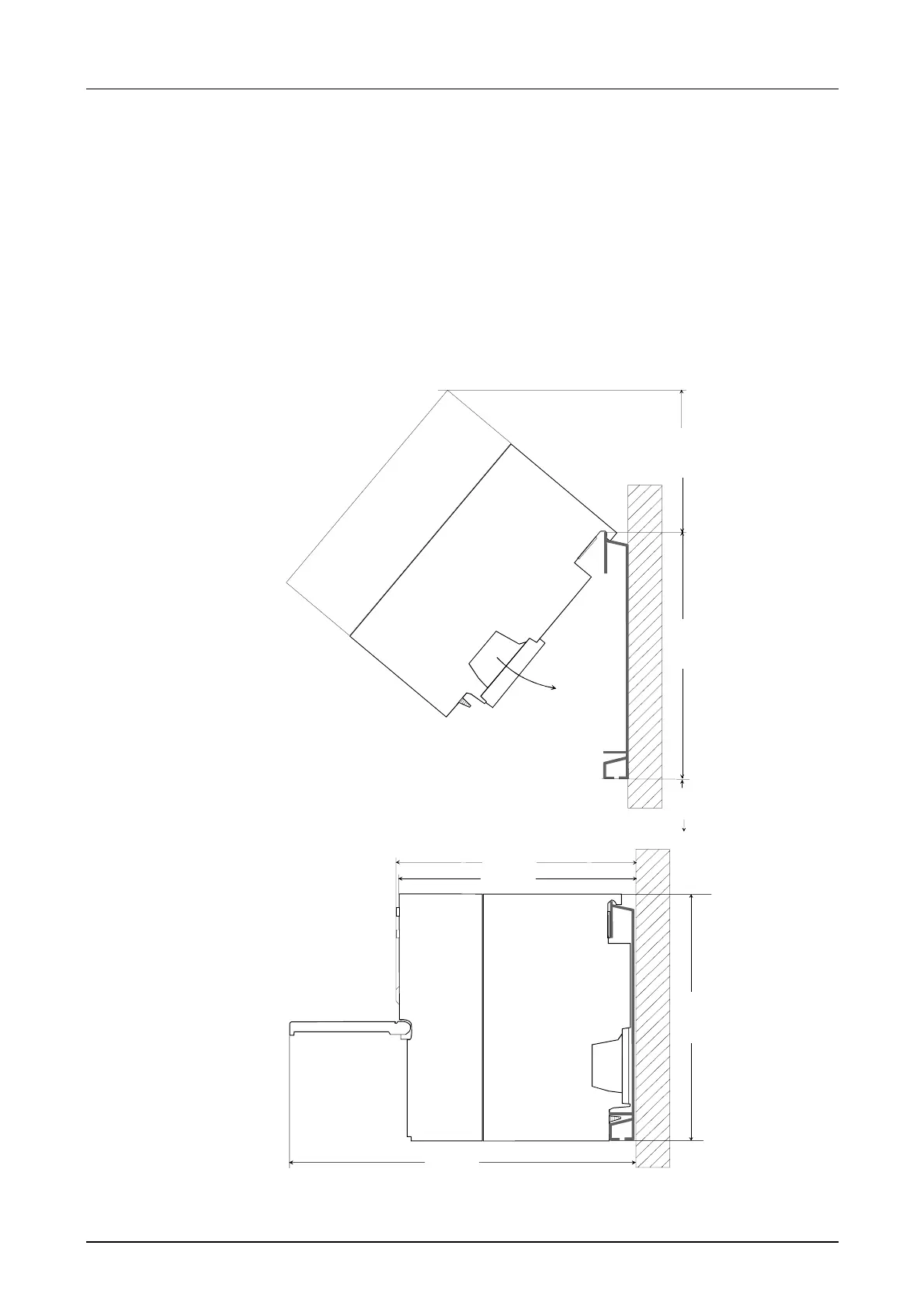

Installation dimensions
Here follows all the important dimensions of the System 300V.
1tier width (WxHxD) in mm: 40 x 125 x 120
2tier width (WxHxD) in mm: 80 x 125 x 120
3tier width (WxHxD) in mm: 120 x 125 x 120
65mm
40mm
122mm
125 mm
125mm
120mm
175mm
