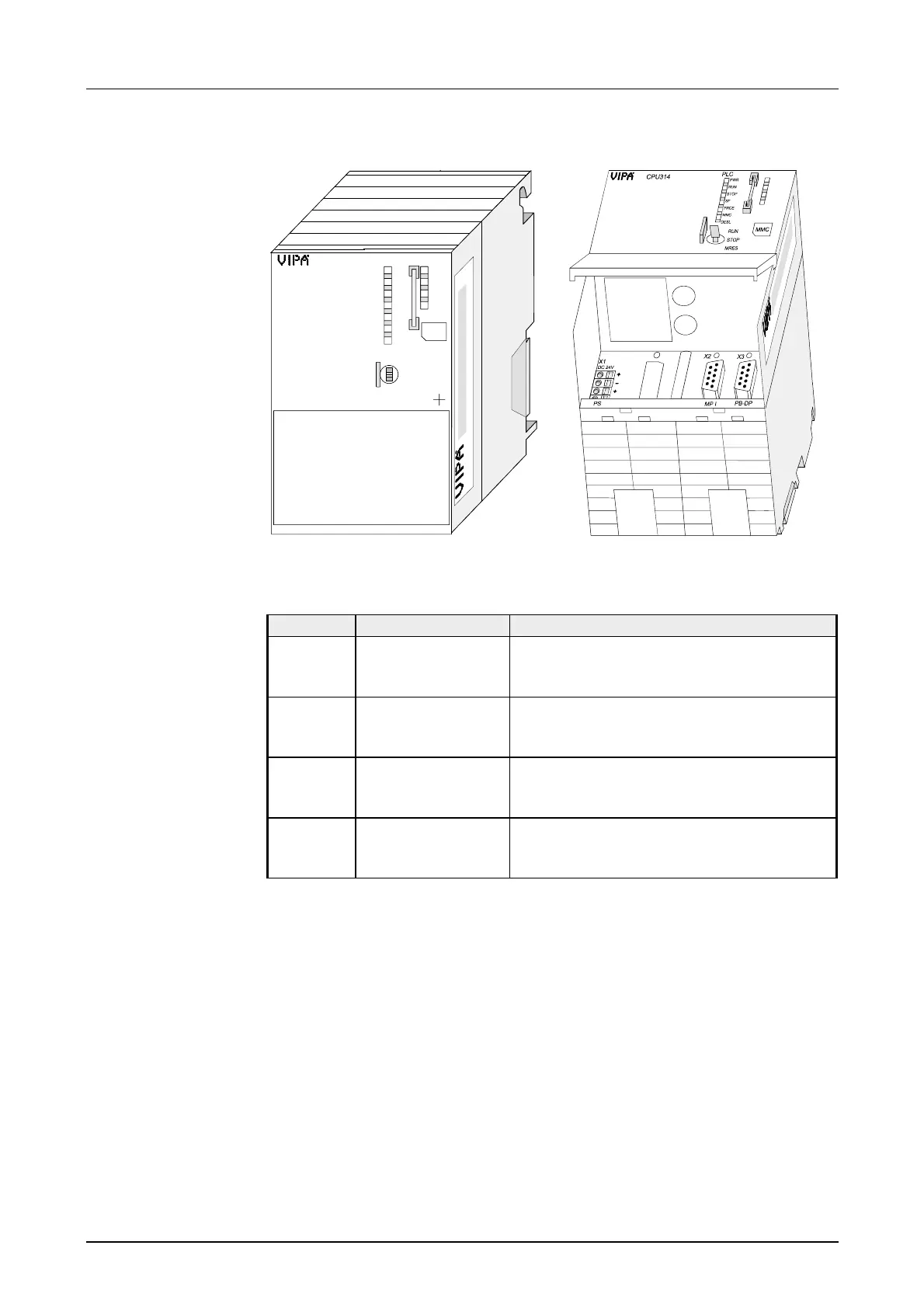

Manual VIPA System 300V Chapter 3 Hardware description
HB130E - CPU - Rev. 11/50 3-9
PWR
RUN
STOP
SF
FRCE
MMC
DESL
MMC
RUN
STOP
MRES
PLC
X1
VIPA 314-1sl01
X2 X3
CPU314
X2
3
4
DC 24V
+
-
+
-
Type Order number Description
CPU 314 VIPA 314-1SL01 SPS CPU 314 with DP slave
96kB Work / 144kB Load memory
CPU 315 VIPA 315-1SL01 SPS CPU 315 with DP slave
192kB Work / 256kB Load memory
CPU 316 VIPA 316-1SL01 SPS CPU 316 with DP slave
256kB Work / 512kB Load memory
CPU 317 VIPA 317-1SL01 SPS CPU 317 with DP-Slave
512kB Work-/ 1MB Load memory
CPU 31x
Ordering data
CPU 31x
