Chapter 3 Hardware description Manual VIPA System 300V
3-20 HB130E - CPU - Rev. 11/50
The DVI jack is suitable for analog and digital displays and monitors with a
max. resolution of 1280x1024pixel.

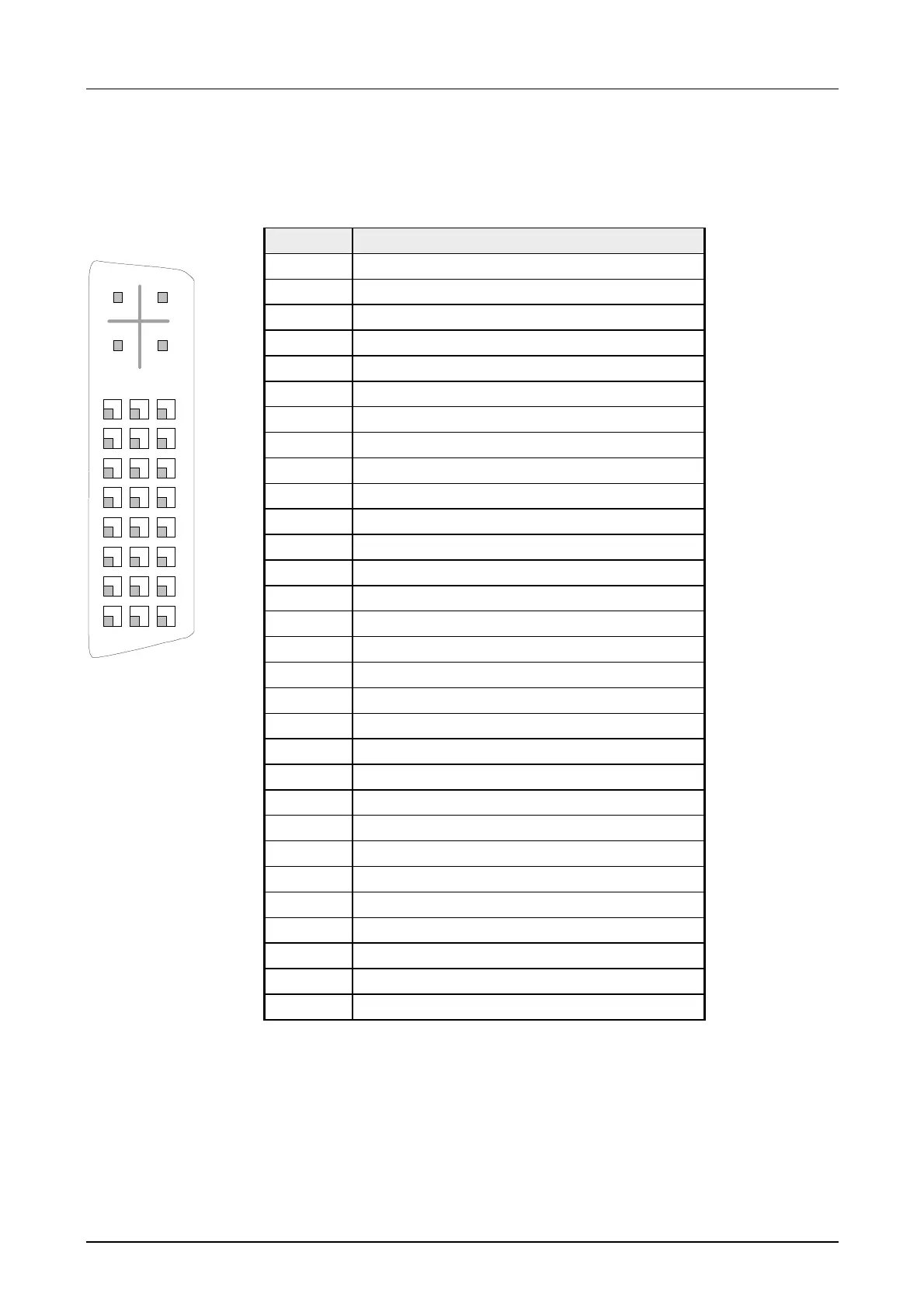

The jack has the following pin assignment:
Pin Signal
C1 Analog Red
C2 Analog Green
C3 Analog Blue
C4 Analog Horizontal Sync
C5 Analog RGB Return
1 T.M.D.S Data2-
2 T.M.D.S Data2+
3 T.M.D.S Data2/4 Shield
4 T.M.D.S Data4-
5 T.M.D.S Data4-
6 DDC Clock
7 DDC Data
8 Analog Vertical Sync
9 T.M.D.S Data1-
10 T.M.D.S Data1+
11 T.M.D.S Data1/3 Shield
12 T.M.D.S Data3-
13 T.M.D.S Data3+
14 +5V Power
15 Ground (return for +5V, HSync and VSync)
16 Hot Plug Detect
17 T.M.D.S Data0-
18 T.M.D.S Data0+
19 T.M.D.S Data0/5 Shield
20 T.M.D.S Data5-
21 T.M.D.S Data5+
22 T.M.D.S Clock Shield
23 T.M.D.S Clock+
24 T.M.D.S Clock-
DVI jack
1
2
3
4
5
6
7
8
17
18
19
20
21
22
23
24
C1
C2
C3
C4
9
16
C5
