• Insert another SIMATIC 300 station and name it as "...DP master".
• Open the hardware configurator and insert a profile rail from the
hardware catalog.
• Place the following Siemens CPU at slot 2:
CPU 315-2DP (6ES7 315-2AF03-0AB0 V1.2)
• Add your modules according to the real hardware assembly.
• Connect the CPU to Profibus, set a Profibus address >1 (preferably 2)
and switch the Profibus section via operating mode to "master
operation".
Dependent on the used VIPA CPU 31x of the slave part the assignment
happens either via Configured stations or by installing the VIPA GSD file
VIPA802F.gsd.
• Connect your slave system to the master system by dragging the "CPU
31x" from the hardware catalog at configured stations onto the master
system and select your slave system.
• In the service area of www.vipa.de the GSD file VIPA802F.gsd will be
found. Install this GSD at your hardware catalog.
• Connect your slave system to the master system by dragging the "CPU
31xDP" of the hardware catalog from Additional field devices > I/O >
VIPA_System_300V onto the master system.
• Open the Configuration at Object properties of your slave system.
• Via double click to the according configuration line you connect the
according input address area on the master CPU to the slave output
data and the output address area to the slave input data. Data
consistency can only be guaranteed for one unit! The choice "Data
consistency by length" is not supported.
• Save and compile your project.

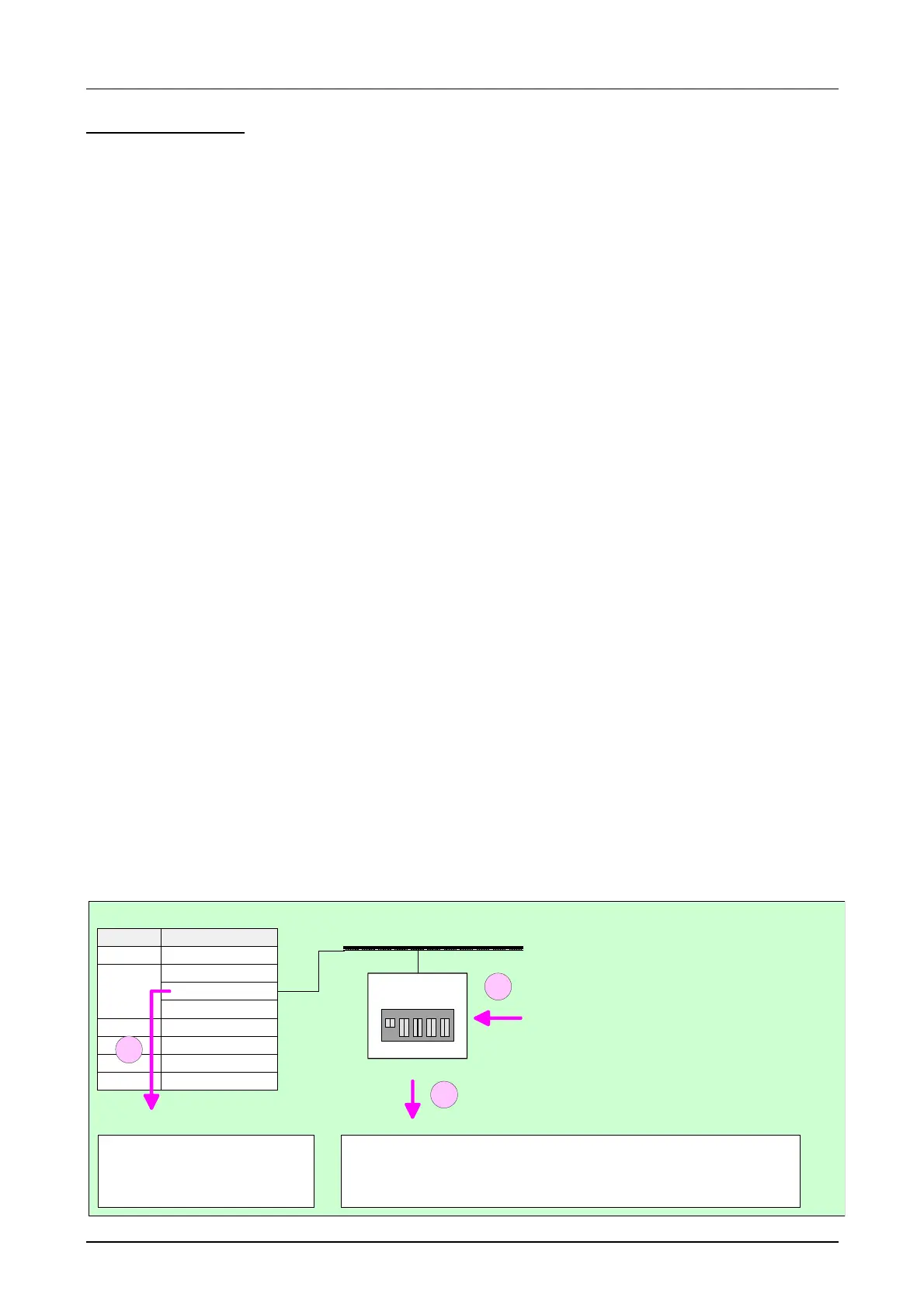

Module
CPU 315-2
DP
MPI/DP
I/O devices
...
Standard bus
Slot
1
2
X2
X1
3
Object properties
Operating mode: DP master
Connect: Profibus
Profibus address: > 1
Master section
DP master system
S7-300
CPU with DP slave/master:
Hardware catalog: CPU 31x from
Configured stations
Object properties
Configuration:
Input area slave CPU = Output area master-CPU
Output area slave CPU = Input area Master-CPU
1
2
3
CPU with DP slave:
Hardware catalog: CPU 31xDP from
Additional field devices > I/O > System300V
(VIPA802F.gsd)
Project
engineering of the
master section
Assignment
Assignment VIPA
CPU 31x with DP
slave/master
Assignment VIPA
CPU 31x with DP
slave
Connection
