Viper 480XV - Pigtail Harness Wire Connection Guide; Ignition and Starter Wire Connections; Fuel Pump Wire Connections

©
2005 Directed Electronics, Inc. all rights reserved 9
H1/19 VIOLET Unlock 87 (Normally Open)
Refer to
Door Lock Harness Wire Connection Guide section for connections.
H1/20 BLUE/BLACK Unlock 30 (Common)
Refer to
Door Lock Harness Wire Connection Guide section for connections.
pigtail harness wire connection guide
Locate the ignition and starter wires using a multimeter. Cut the appropriate wires and attach the
key side and car side wires to the corresponding pigtail harness wires.
Locate the fuel pump wire using a multimeter. Cut the appropriate wires and attach the key side
and car side wires to the corresponding pigtail harness wires.
NOTE: The current handling capacity of each immobilisation circuit is 20 amps
continuous and 30 amps peak.

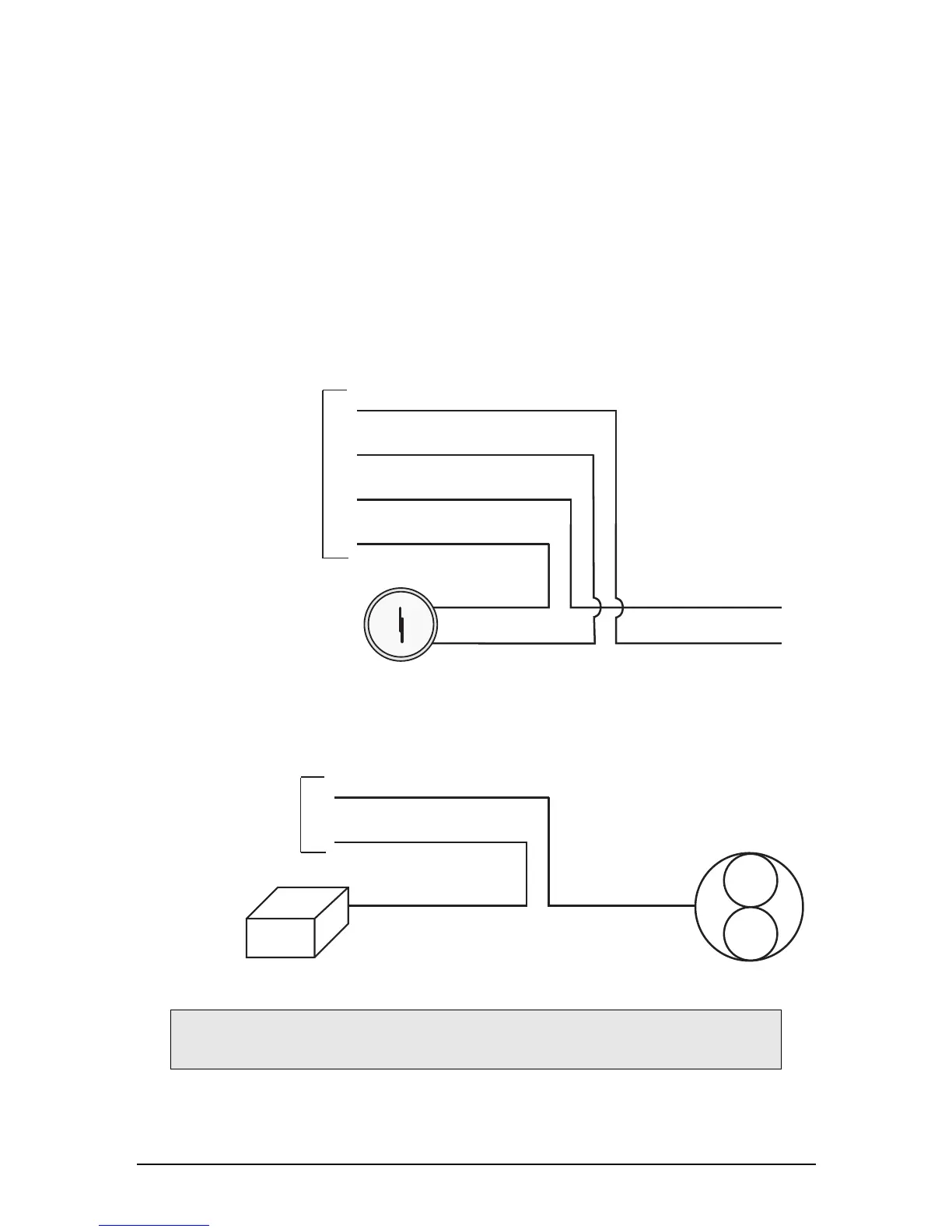

x
CUT
Fuel Pump Wire
From Control
Module (pigtail wires)
Fuel Pump In
Fuel Pump Out
Fuse Box
Fuel Pump
or
Relay
Ignition Ignition Side
Ignition Key Side
Starter Key Side
STR Starter Side
x
CUT
x
CUT
Starter
Ignition
From Control
Module (pigtail wires)
