10 © 2000 Directed Electronics, Inc. Vista, CA
This wire supplies (-) ground as long as the system is armed. This output ceases as soon as the system is
disarmed. This wire can be used to turn on an optional sensor or to ready an optional accessory, such as a
pager module.

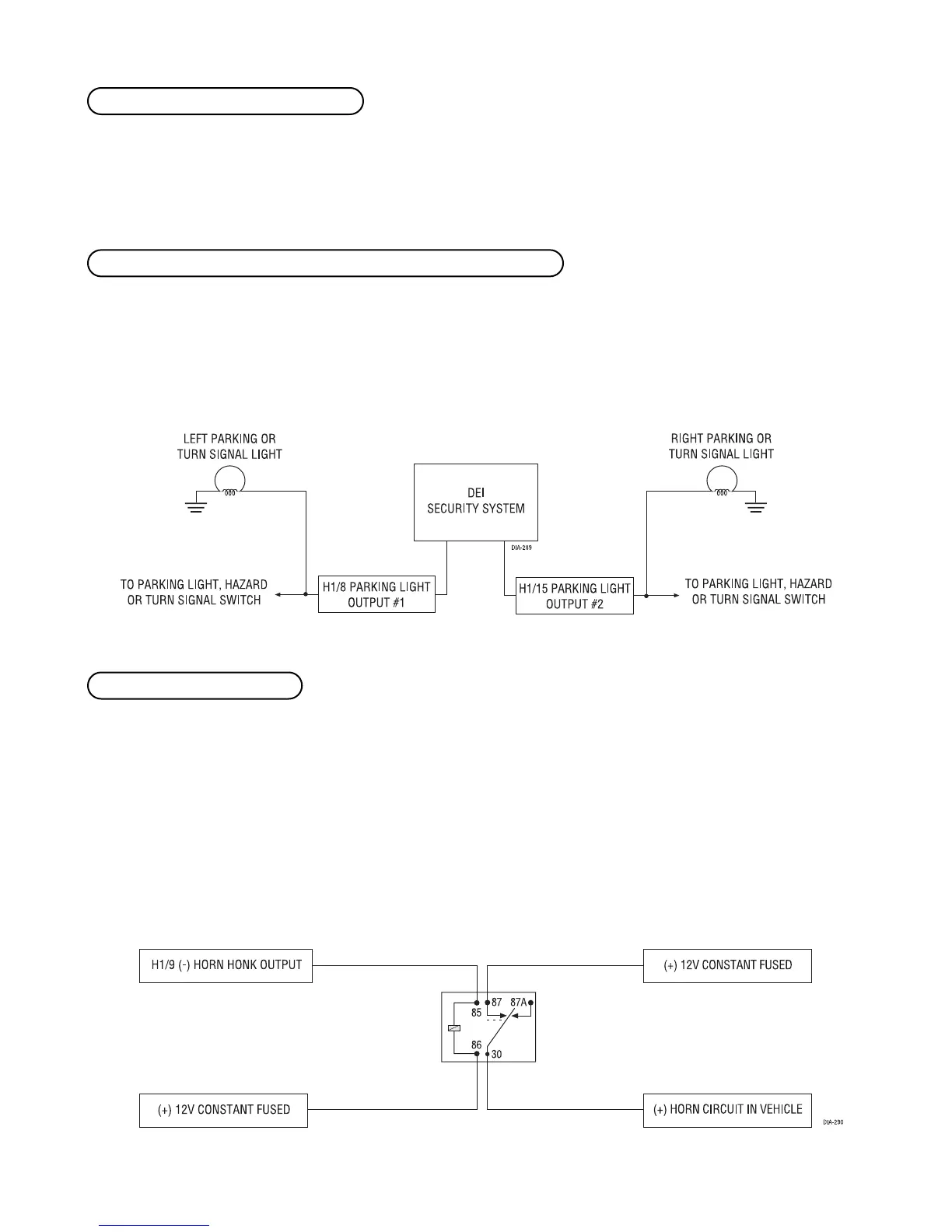

If the vehicle has only one complete parking light wire, connect only one of these parking light outputs directly
to the parking light circuit of the vehicle. This is a dual isolated output relay (both outputs are active at the
same time). An alternative to using the parking light flash is to use either turn signal flash or hazard light flash.
See the following diagram.
This wire supplies a (-) 200 mA output that can be used to honk the vehicle horn. This wire outputs pulses when
the alarm is triggered or when Panic Mode is activated. This wire can be programmed to output a single pulse
when locking the doors with the remote and two pulses when unlocking the doors with the remote. If the vehicle
has a (+) horn circuit or a horn circuit that draws more than 200 mA, an optional relay can be used to interface
with the system, as shown in the following diagram.
(+) Positive Horn Circuit
H1/9 (-) horn honk output
H1/8 parking light output #1 and H1/15 parking light output #2
H1/7 (-) ground-when-armed output
