Viper 700 ESP - Secondary Harness (H2), 10-pin Connector

6 © 2000 Directed Electronics, Inc. Vista, CA

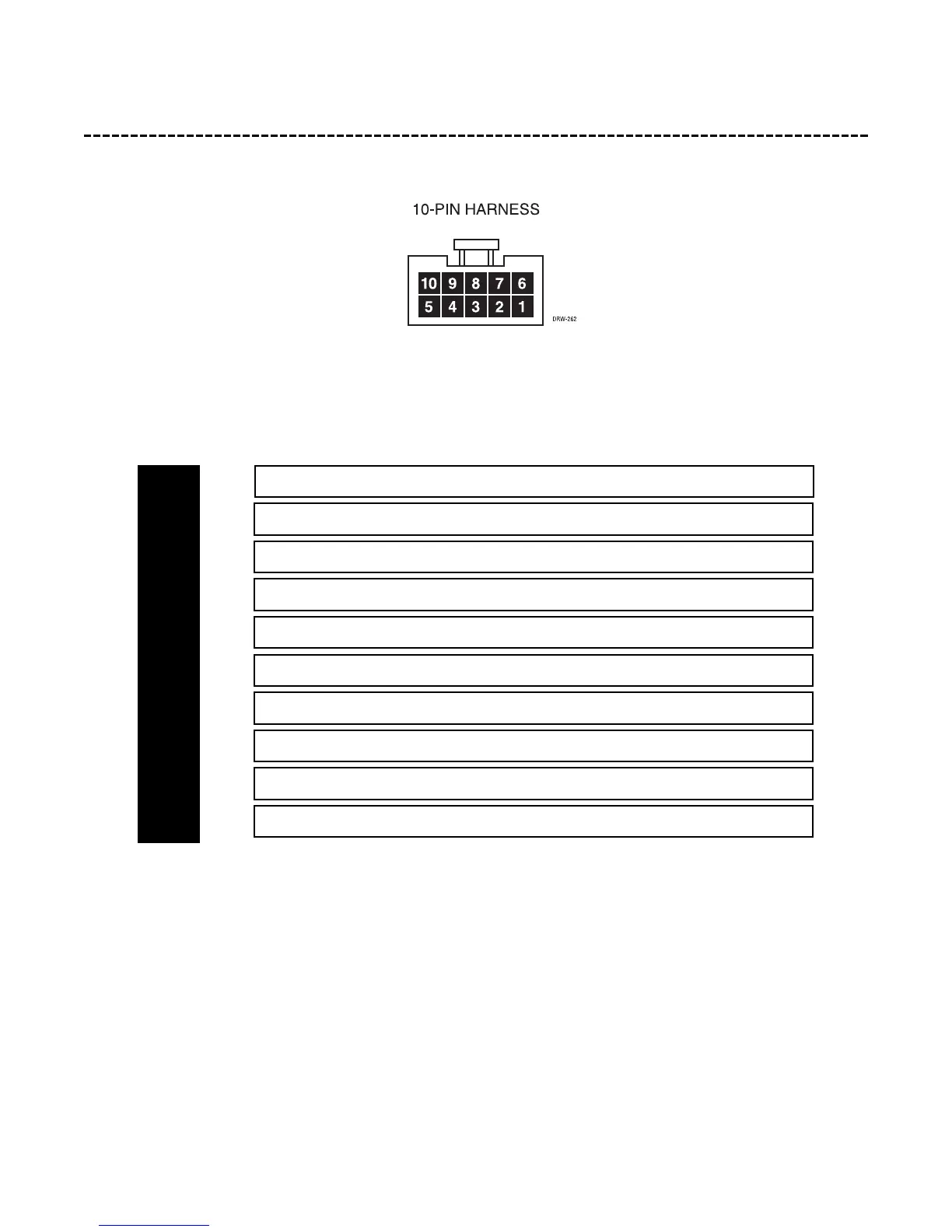

secondary harness (H2), 10-pin connector
NOTE: The labels for the pin numbers of this harness are located on the front of the plug, which is
the same side of the plug depicted in this diagram.
______
______
______
______
______
______
______
______
______
______
NORMALLY CLOSED INTERRUPT OUTPUT #1
(-) CHANNEL 3, 200 mA OUTPUT
(-) CHANNEL 2, 200 mA OUTPUT
NORMALLY CLOSED INTERRUPT INPUT #1
(+) 12V CONSTANT POWER INPUT
(-) CHANNEL 4, 200 mA OUTPUT
(-) VALET SWITCH INPUT
GROUND
NO FUNCTION
(+) IGNITION INPUT, ZONE 5
H2/1
H2/2
H2/3
H2/4
H2/5
H2/6
H2/7
H2/8
H2/9
H2/10
