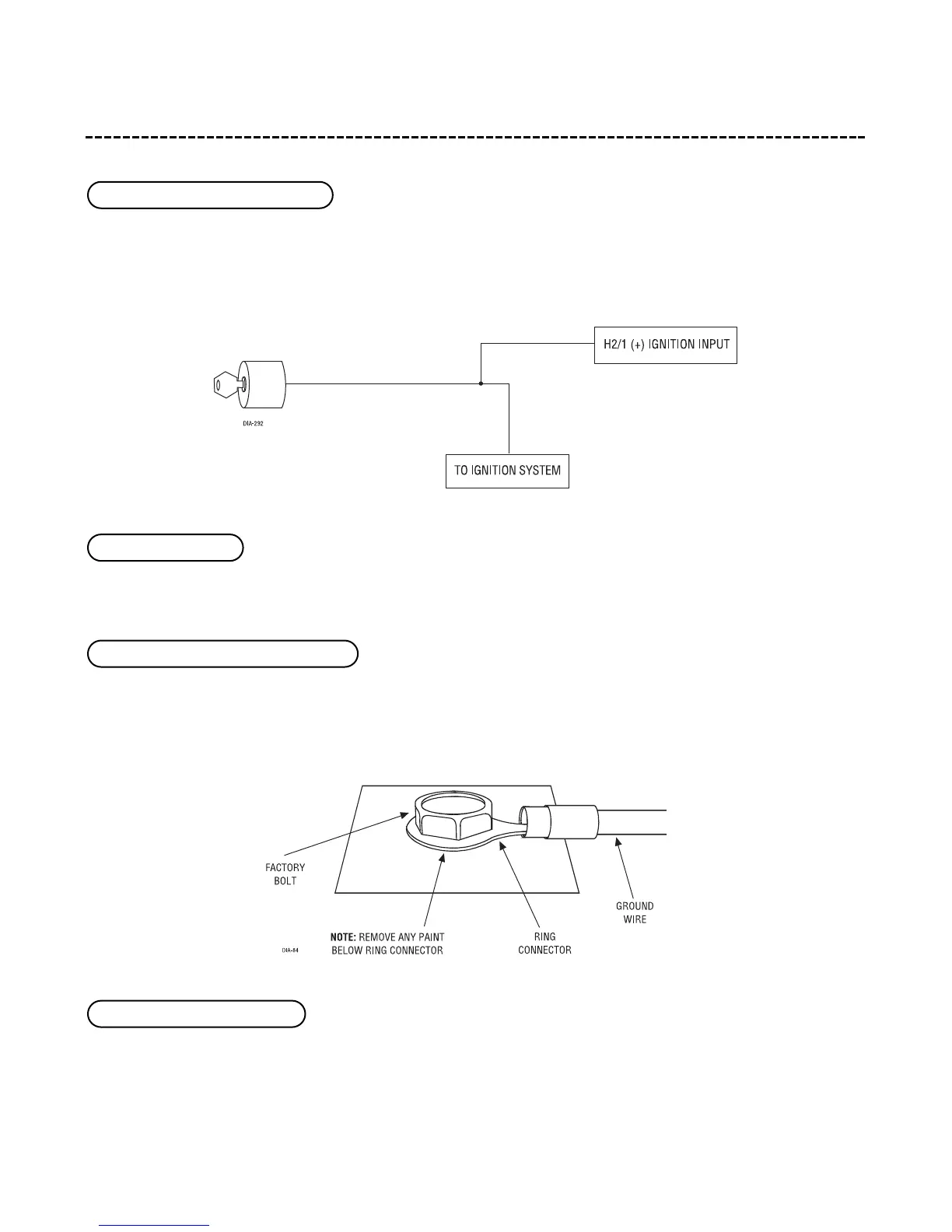

secondary harness (H2) wire connection guide
Connect this wire to the (+)12V ignition wire. This wire must show (+)12V with the key in run position and during
cranking. If the security system is armed and the ignition key is turned on, the H2/1 wire will trigger the alarm
and report Zone 5. Take great care that this wire cannot be shorted to the chassis at any point.
This wire has no function.
Remove any paint and connect this wire to bare metal, preferably with a factory bolt rather than your own screw.
(Screws tend to either strip or loosen with time.) We recommend grounding all your components, including the
siren, to the same point in the vehicle.
The Valet switch is used to program and enter Valet Mode. Connect the grey wire of the Valet switch to the H2/4
wire and the black wire of the Valet switch to chassis ground.
NOTE: The Valet switch will NOT override the alarm. Also, the alarm must be disarmed in order to
enter Valet Mode.
H2/4 (-) valet switch input
H2/3 (-) chassis ground connection
H2/2 no function
H2/1 (+) ignition input, zone 5
