Viper 700 ESP - Door Lock Harness (H3), 6-pin Connector

© 2000 Directed Electronics, Inc. Vista, CA 7

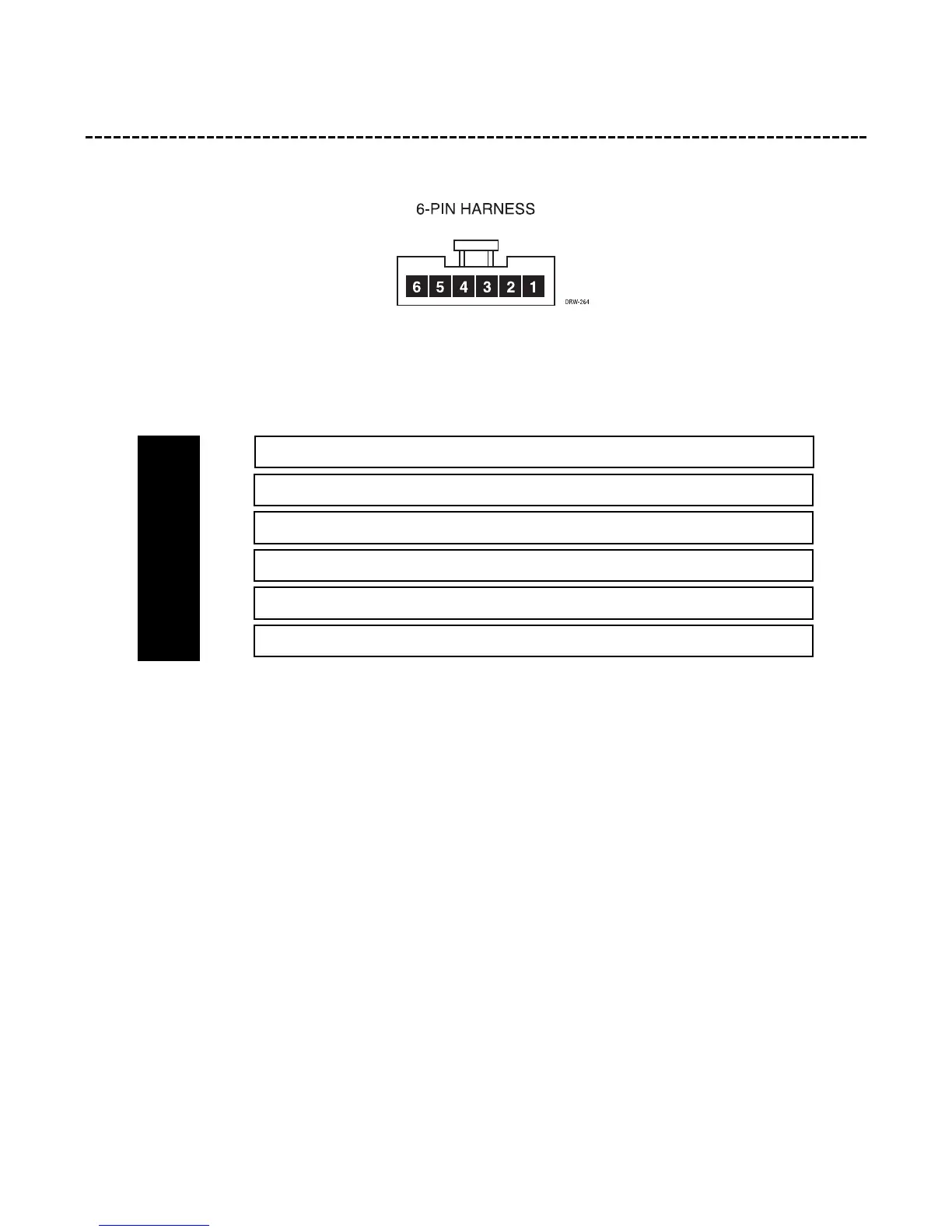

door lock harness (H3), 6-pin connector
NOTE: The labels for the pin numbers of this harness are located on the front of the plug, which is
the same side of the plug depicted in this diagram.
______
______
______
______
______
______
VIOLET NORMALLY OPEN INPUT TO UNLOCK RELAY 87
BLUE/BLACK OUTPUT OF UNLOCK RELAY 30
BROWN/BLACK NORMALLY CLOSED UNLOCK RELAY 87A
VIOLET/BLACK NORMALLY OPEN INPUT TO LOCK RELAY 87 (FUSED 15A)
GREEN/BLACK OUTPUT OF LOCK RELAY 30
WHITE/BLACK NORMALLY CLOSED LOCK RELAY 87A
H3/1
H3/2
H3/3
H3/4
H3/5
H3/6
