24 © 2000 Directed Electronics, Inc. Vista, CA
plug-in harnesses
The super bright LED operates at 2V DC. Make sure the LED wires are not shorted to ground as the LED will be
damaged. Multiple LED’s can be used, but they must be wired in series. The LED fits into a
9
/32
-inch mounting
hole. Be sure to check for clearance prior to drilling the mounting hole.
The black three pin port is provided for personal computer programming of the unit. When using the DEI Bitwriter
(P/N 998T) or optional PC Interface module (P/N 996T) it is possible to configure any and all of the program-
mable functions. For more information please refer to the guide packaged with the programmer.

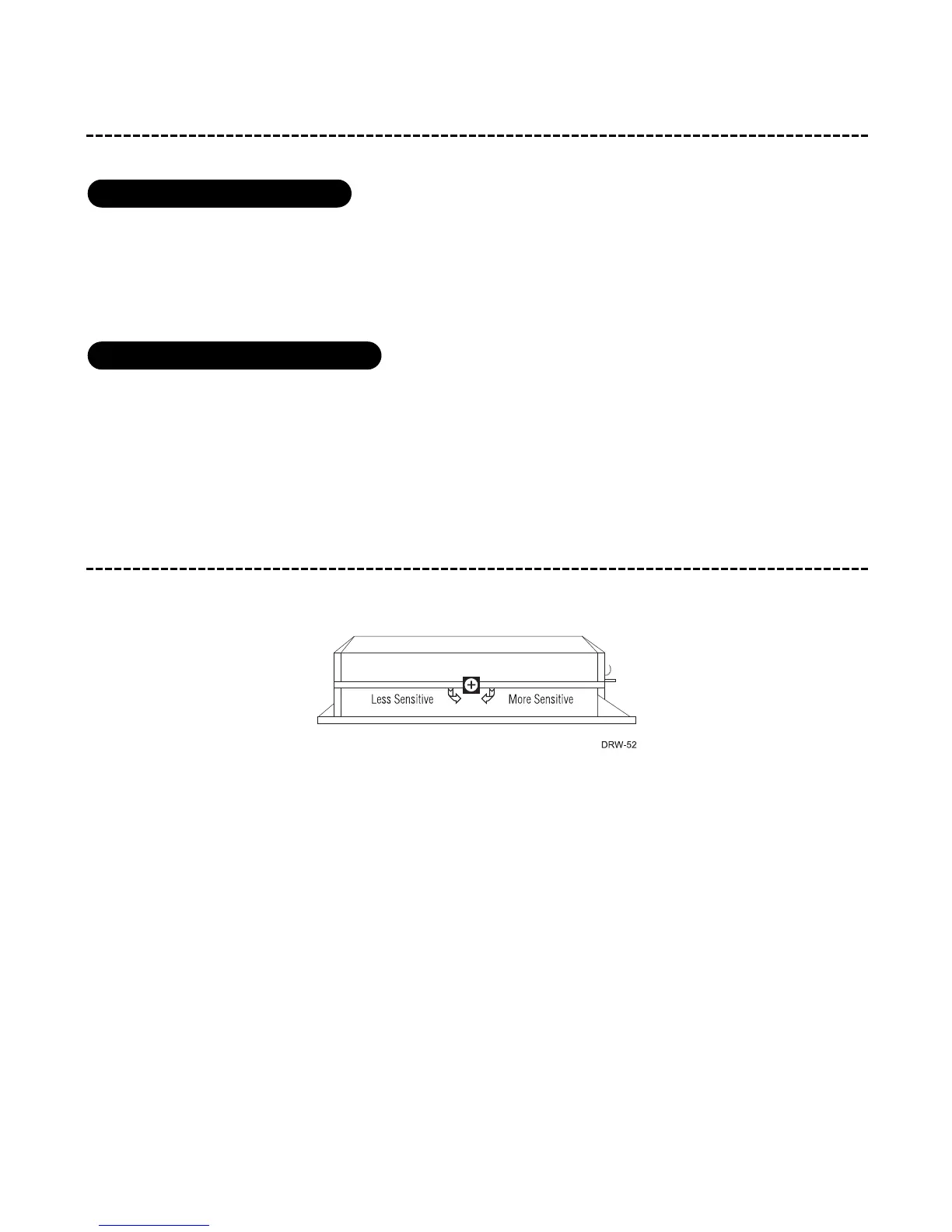

on-board doubleguard shock sensor
There is a Doubleguard
®
shock sensor inside the control unit. Adjustments are made via the rotary control as indi-
cated above. Since the shock sensor does not work well when mounted firmly to metal, we recommend against
screwing down the control module. We recommend mounting the control module to a large wiring loom. The full
trigger of the on-board shock sensor reports Zone 2. (See Table of Zones section of this guide.)
NOTE: When adjusting the sensor, it must be in the same mounting location that it will be after
the install is completed. Adjusting the sensor and then relocating the module requires readjustment.
programmer interface, 3-pin black plug
super-bright LED, 2-pin white plug
