Aperture priority
This option allows the exposure to be calculated automatically when the user
sets the aperture value (F14 – F1.6 & closed). This allows easy control of the
depth of eld while maintaining the correct exposure. Target brightness can
be set to users desired level.

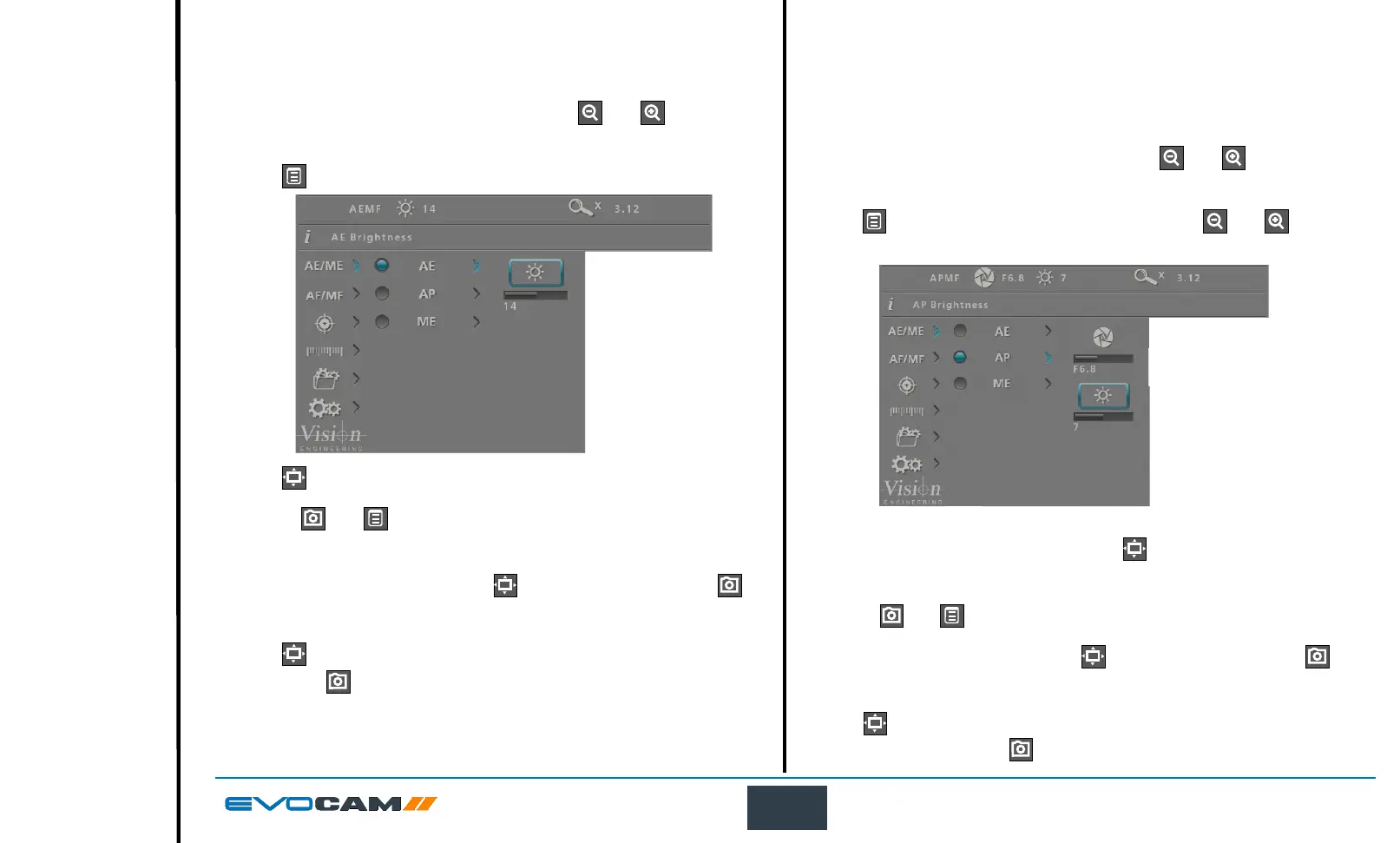

` With the exposure options displayed, use the
and buttons to
highlight aperture priority (AP).
` Press
to display the AP options and then use the and buttons to
highlight either the f-number option or the brightness option.
` With the required option selected, press
to enable the value to be
altered if necessary.
` Use the
and buttons to decrease or increase the value as required.
` With the required values set, press
to store it and then press to
return to the exposure menu.
` Press
to turn on the blue indicator next to the option to ensure it has
been selected then press to return to the main menu.
Auto exposure
Using this option, exposure is calculated and adjusted automatically. Target
brightness can be set to users desired level.
` With the exposure options displayed, use the
and buttons to
highlight automatic exposure (AE).
` Press
to display the highlighted brightness setting.
` Press
to enable the value to be altered if necessary.
` Use the
and buttons to decrease or increase the value as
required.
` With the required value set, press
to store it and then press to
return to the exposure menu.
` Press
to turn on the blue indicator next to the option to select it
then press to return to the main menu.
