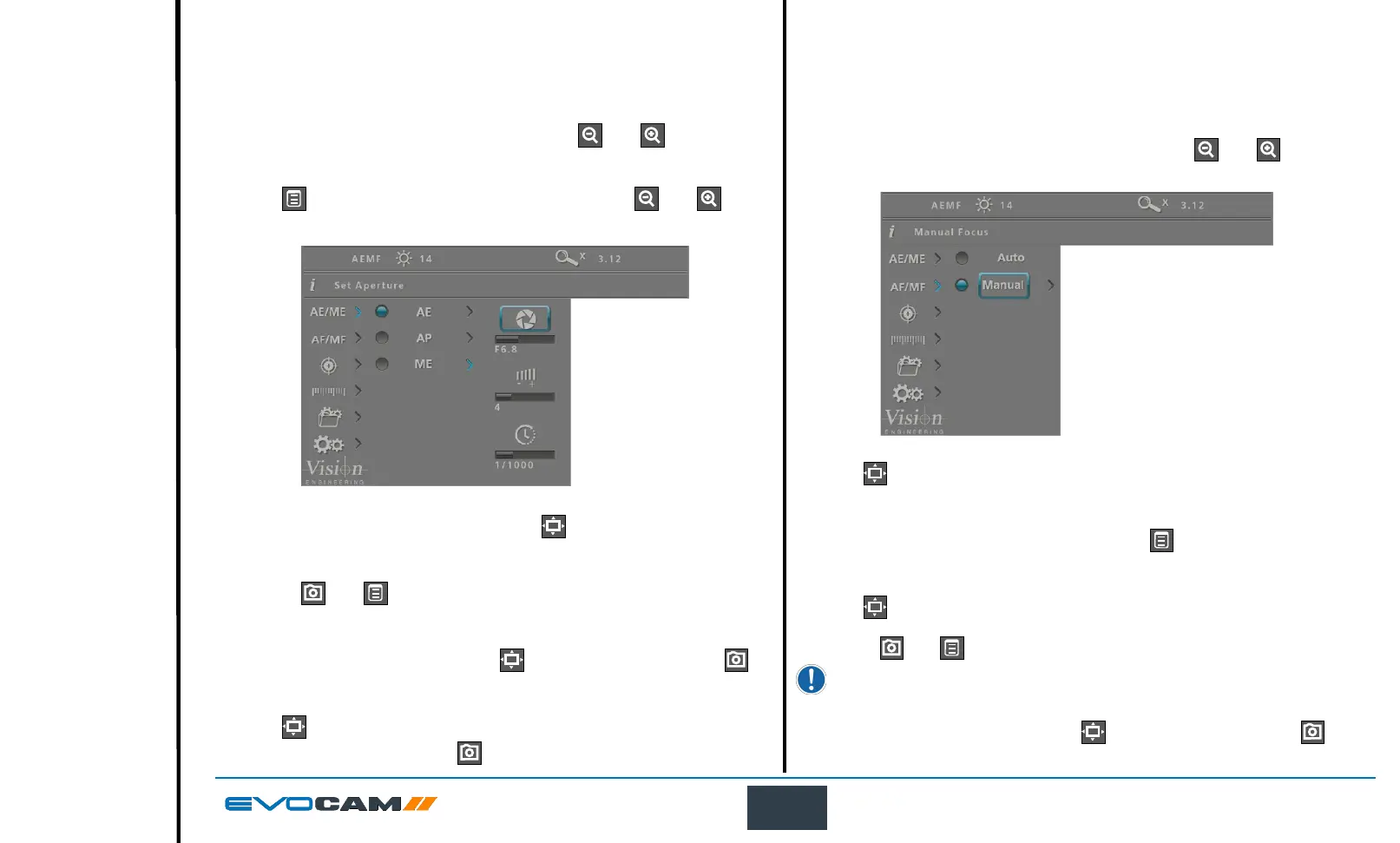

OPERATION
Focus options
Auto/Manual focus
This option allows the user to set the EVO Cam II’s focus to be set
automatically if the subject is within range, or set a specic focal distance.
` With the focus options (AF/MF) displayed, use the
and buttons to
highlight automatic or manual focus as required.
` Press
to turn on the blue indicator next to the required option to
ensure it has been selected.
` If the manual focus option is selected, press
to display the distance
setting.
` Press
to enable the value to be altered if necessary.
` Use the
and buttons to decrease or increase the value as required.
If the focus position is not set to ‘Inf’ the zoom will not maintain
parfocality.
` With the required values set, press to store it and then press to
return to the focus menu.
Manual exposure
This option enables exposure controls to be set manually. Aperture, Gain and
Exposure time can all be adjusted. Aperture (F14 – F1.6 & closed), Gain (1 -
15) and Exposure time (1/10,000 – 1s)
` With the exposure options displayed, use the
and buttons to
highlight manual exposure (ME).
` Press
to display the ME options and then use the and
buttons to highlight either the f-number, gain, or exposure time option.
` With the required option selected, press
to enable the value to be
altered if necessary.
` Use the
and buttons to decrease or increase the value as
required.
` With the required values set, press
to store it and then press to
return to the exposure menu.
` Press
to turn on the blue indicator next to the option to ensure it
has been selected then press to return to the main menu.
