102
ВАРШ.201219.009РЭ

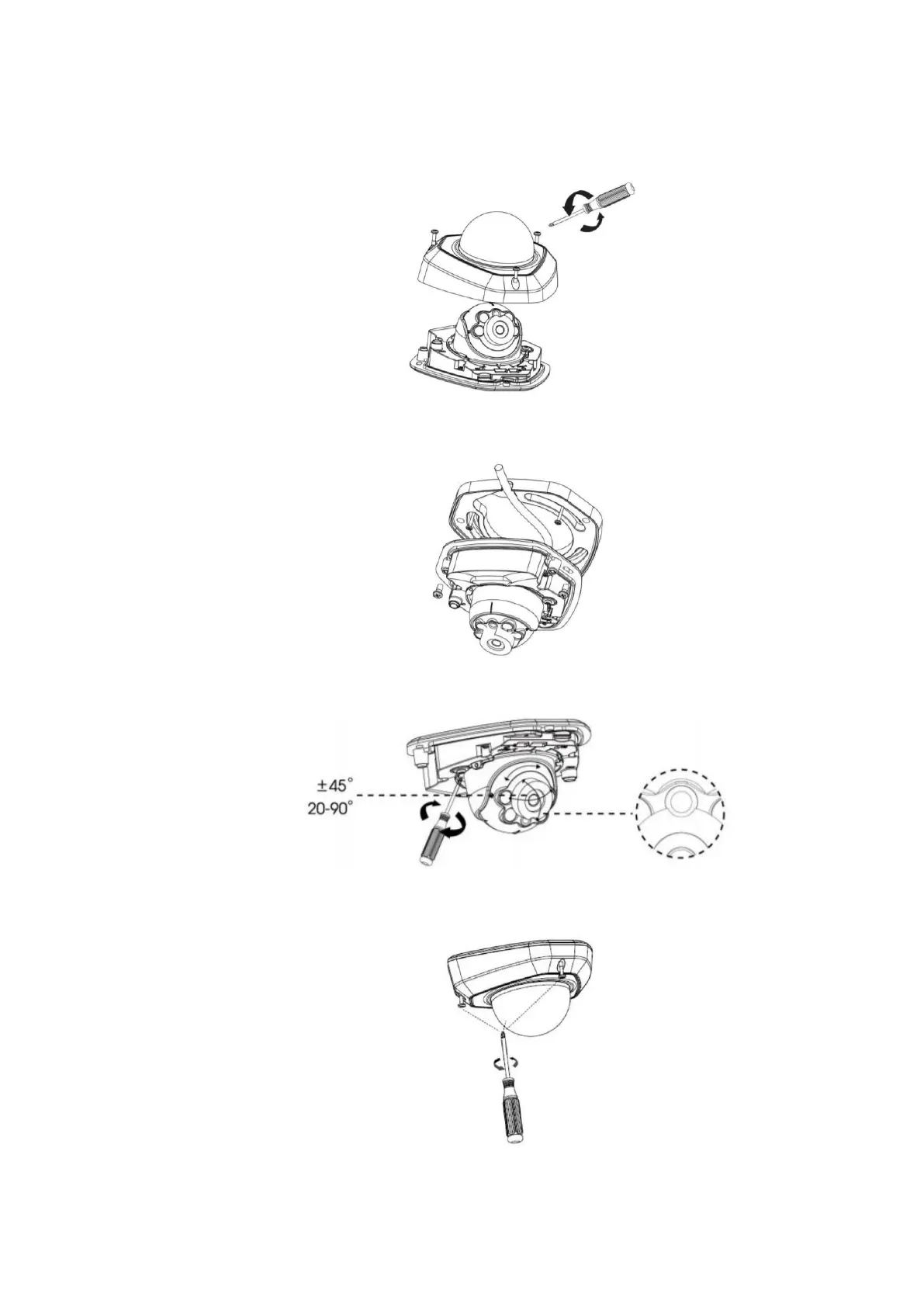

C.7 Mounting the VisorJet Smart Dome mini series, model VJS-D603-5
Step 1: Remove the camera cover;
Step 2: Fix the camera to the ceiling or wall using screws. Connect the cables;
Step 3: Loosen the clamping screw to adjust the angle of the lens, then tighten it;
Step 4: Close the camera cover.
