103
ВАРШ.201219.009РЭ

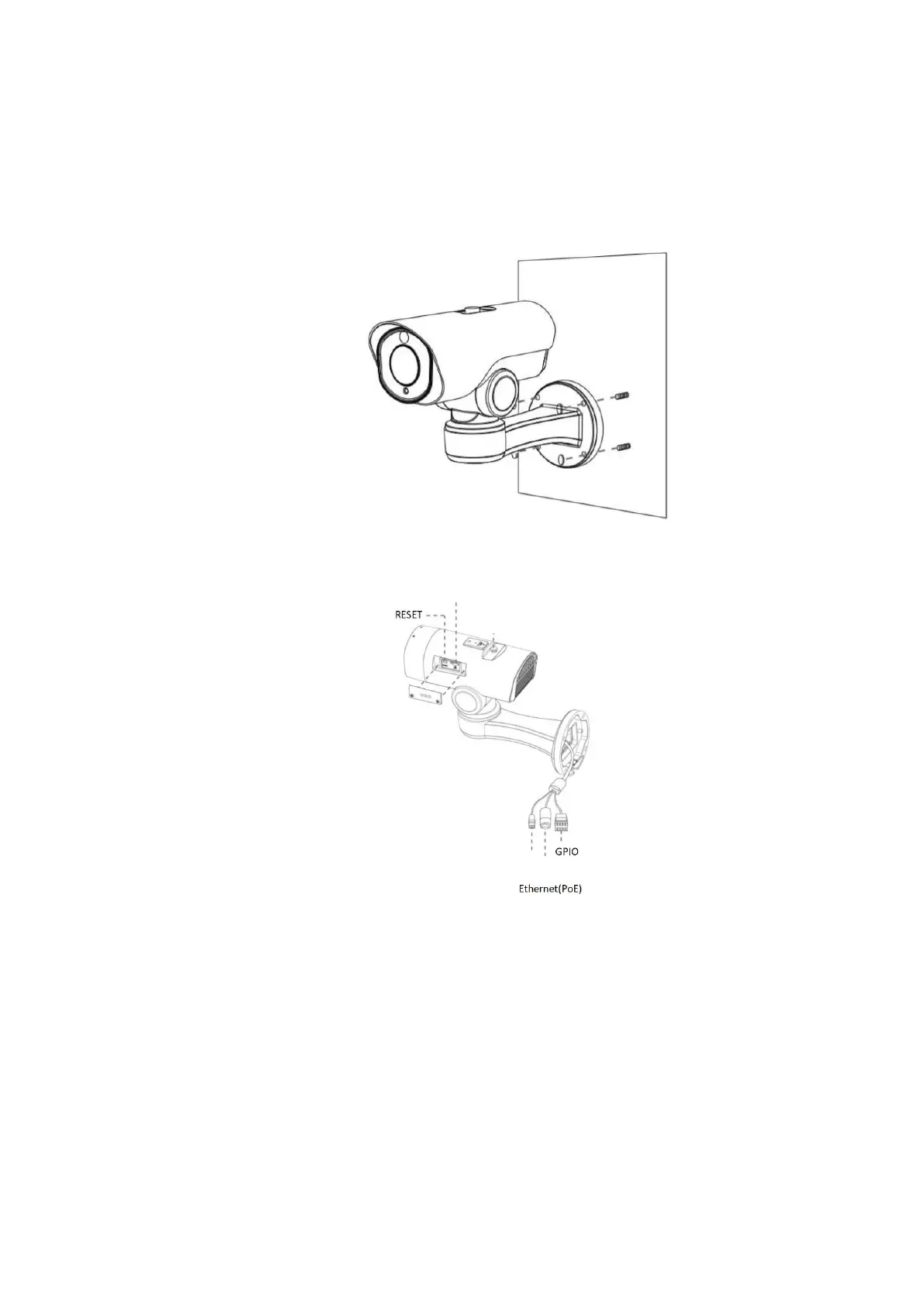

C.8 Mounting the VisorJet Smart PTZ Series, Models VJS-P612-2-LPR, VJS-P612-5
Lead out the cables and fix the camera where it should be installed using screws or self-
tapping screws.
Loosen the screws to access the SD card slot. Fasten the screws after installing the SD card.
Audio input/output
+12V
SD card
Binding screw
