Page.14.

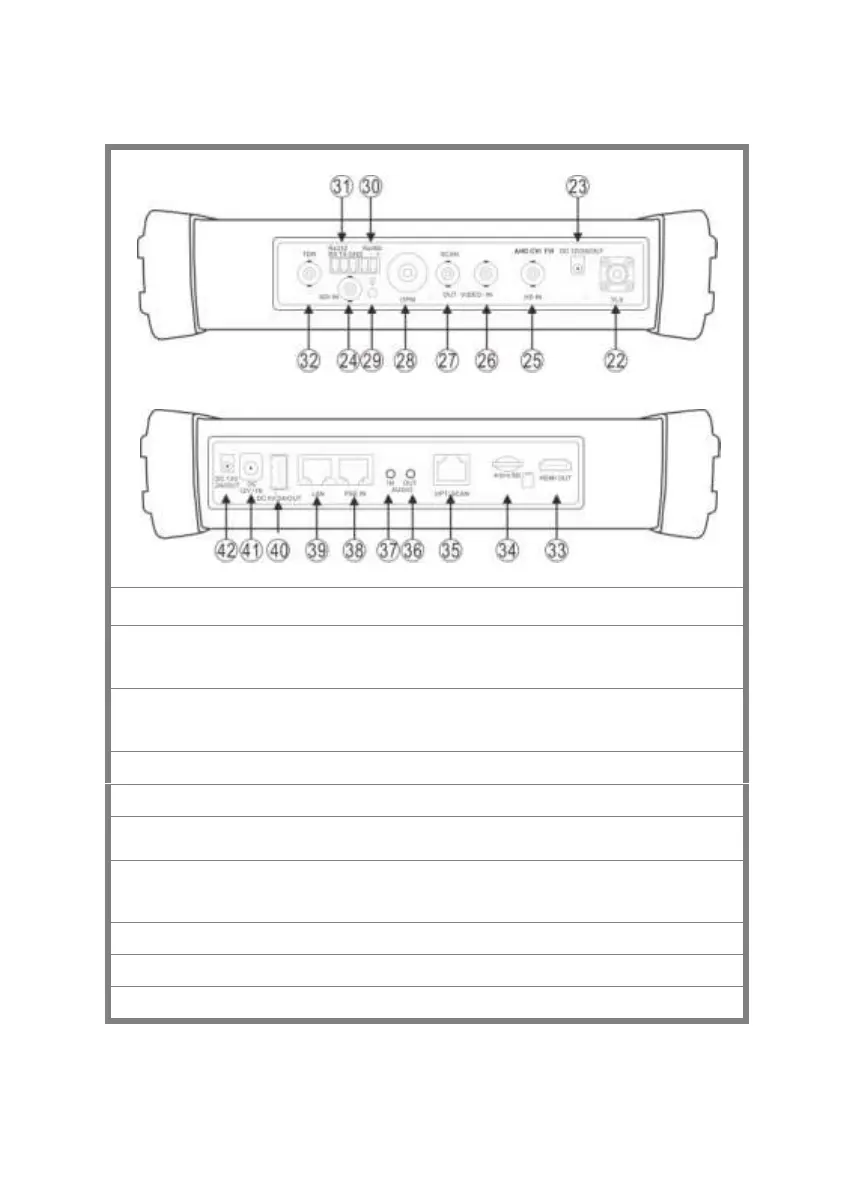

Top interface
Bottom interface
Multimeter interface (Optional)
The charge indicator: it lights red while the battery is being charged. As the charging is
complete, the indicator turns off automatically
The RS485/RS232 data transmission indicator: it lights red while the data is being
transmitted
The data received indicator: it lights red while the data is being received
The power indicator: it lights green while the tester is powered on by the adapter
Visible red laser source emits Interface (Not included)
DC12V2A power output , for provisional DC power supply
SDI input (BNC interface) (Not included)
"HD IN" , AHD /TVI/CVI Coaxial interface
Video signal input（BNC interface）
