When the value scale to be measured is unknown beforehand, set the range selector at the
highest position.
The maximum current of mA socket is 660mA; over-current will destroy the fuse, and will
damage the meter.
The maximum current of 10A socket is 10A, over-current will destroy the meter, and will
damage the operator.
In“ AC ” mode, only can input “AC ”, if not, will damage the meter.
E. Resistance Measuring

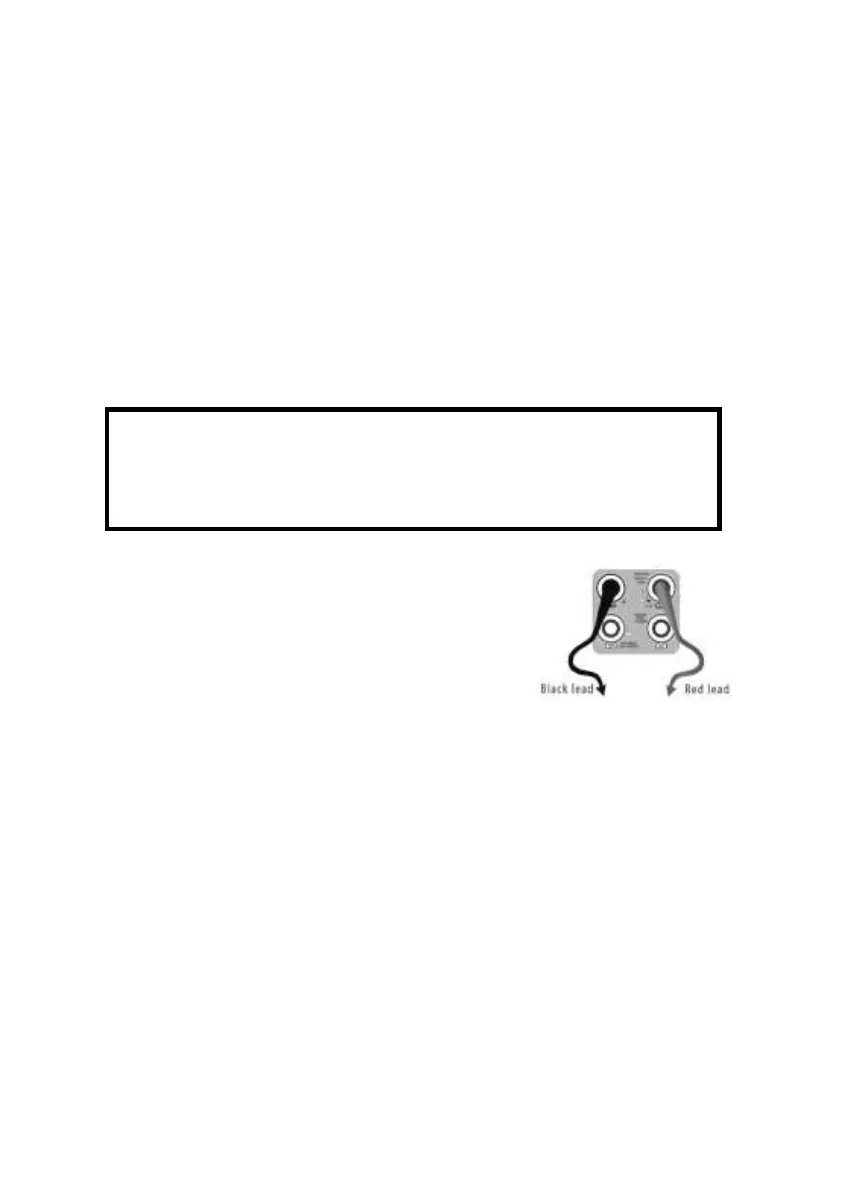

a. Connect the black test lead to the “COM ” jack and the red test lead to the “V/Ω” jack.
b. to select Ω, enter the Ω measurement
the tester default Auto range status, Press the key manually
select range ,Press “NEAR” to restore “Auto range”
Manual range:(Connect the red lead to black leads, will
display the measure range)
000.0Ω 660Ω range
0.000 KΩ 6.600KΩ range
00.00 KΩ 66.00KΩ range
000.0 KΩ 660.0KΩ range
0.000 MΩ 6.600MΩ range
00.00 MΩ 66.00MΩ range
F. Continuity Testing
WARNING!
When measuring in-circuit resistance, be sure the circuit under test has all power removed and
that all capacitors have discharged fully.
