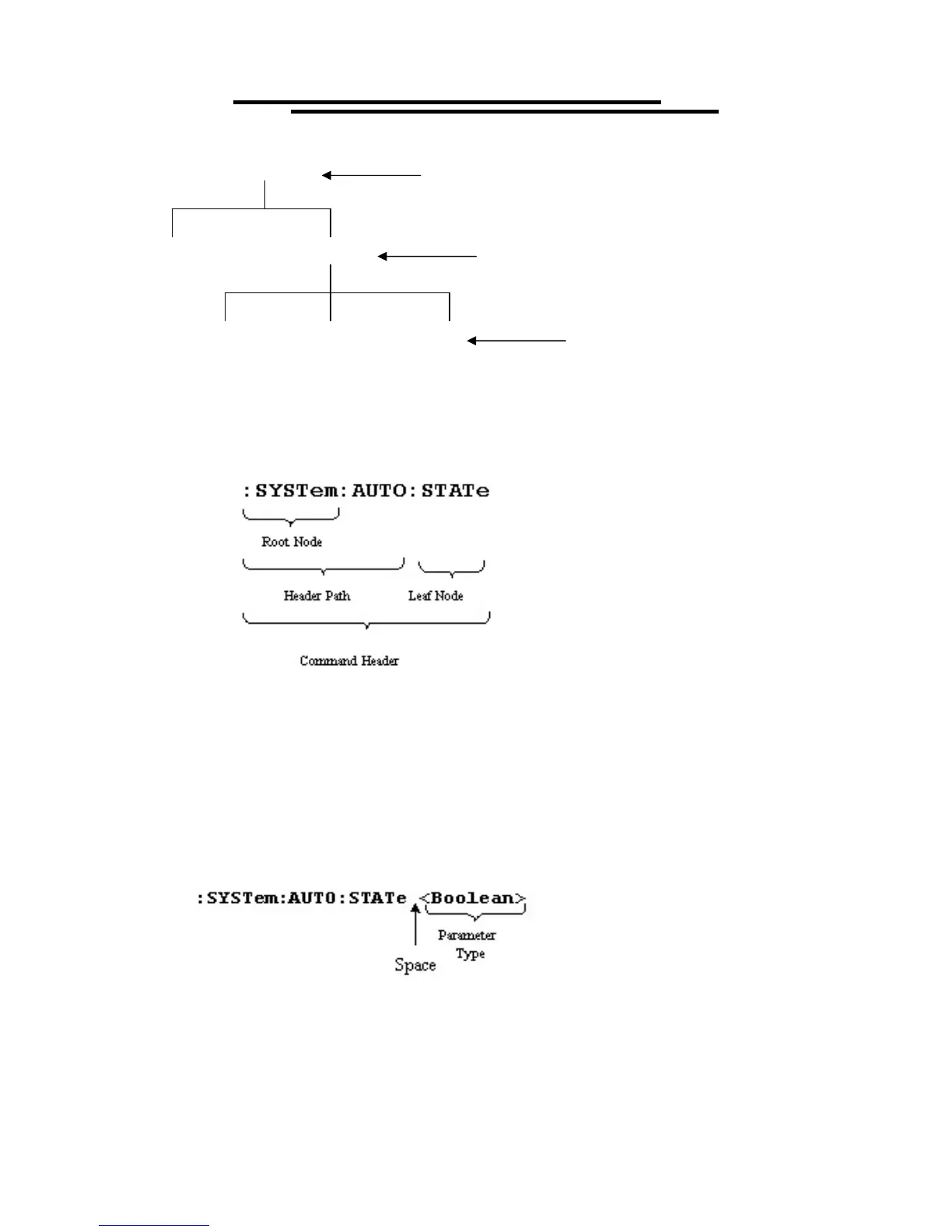

Figure 4: Tree hierarchy
The command header is configured by header path and leaf node. Figure 5 shows the command header for the
leaf node indicated in Figure 4.
Figure 5 Command Header
Parameter
If the commands have parameters, the values have to be included. In this manual, when we expressed the
syntax of the command, the < > symbols are used for enclosing the parameter type. For instance, the syntax of
the command in Figure 6 includes the Boolean parameter type.
NOTE: Do not include the <, >, or | symbols when entering the actual value for a parameter.
Figure 6 Command Header with Parameter
Table 1 defines the Boolean and other parameter types for the V4.
:SYSTem
:AUTO
Root node
:ERRor
:STATe
:STARt
:CYCLe
Lower-level node
Leaf Node
