DLP Projector—User’s Manual
– 20 –

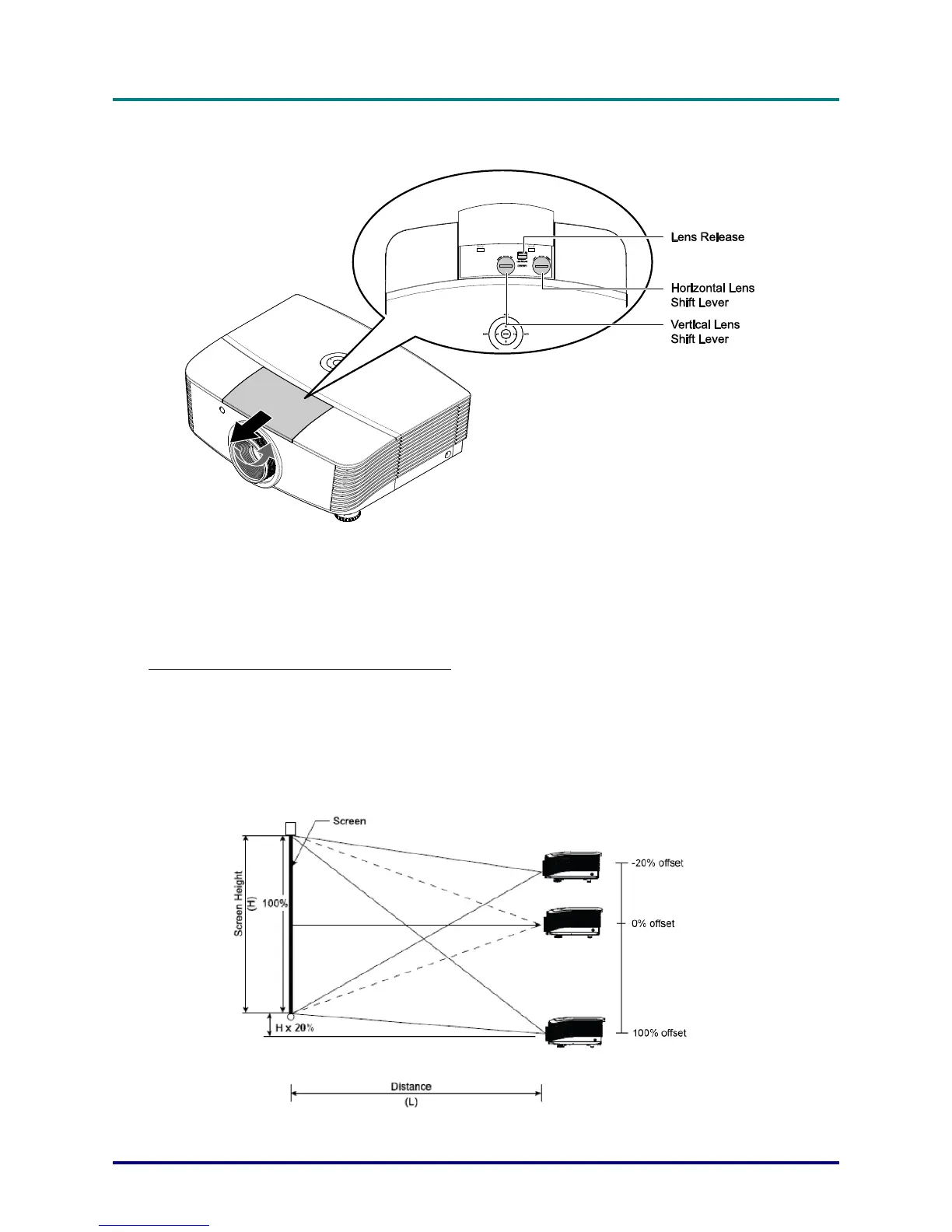

Adjusting Projected Image Position Using Shift
The Shift feature provides a lens shift function that can be used to adjust the position of the projected
image either horizontally or vertically within the range detailed below.
Shift is a unique system that provides lens shift while maintaining a much higher ANSI contrast ratio
than traditional lens shift systems.
Adjusting the vertical image position
The vertical image height can be adjusted between 100% and -20% of half image height. Note that
the maximum vertical image height adjustment can be limited by the horizontal image position. For
example it is not possible to achieve the maximum vertical image position height detailed above if the
horizontal image position is at maximum. Please consult the Shift Range diagram below for further
clarification.
