DLP Projector—User’s Manual
– 2 –
Views of Projector Parts

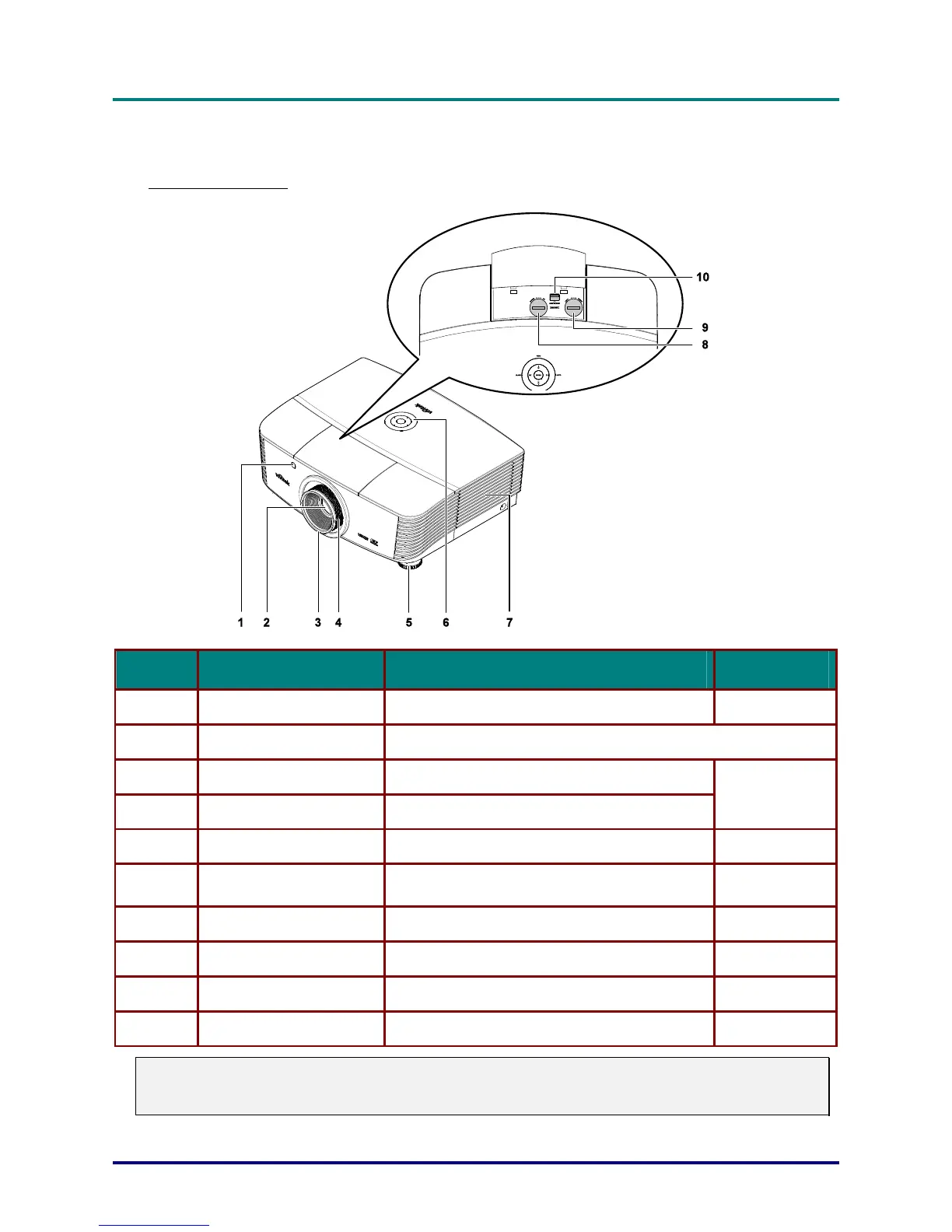

Front-right View
ITEM LABEL DESCRIPTION SEE PAGE:
1.
IR receiver Receives IR signal from remote control
7
2.
Lens Projection Lens
3.
Focus ring Focuses the projected image
4.
Zoom ring Enlarges the projected image
22
5.
Height adjuster Adjusts level of projector
19
6.
Function keys
See Top view—On-screen Display (OSD) buttons
and LEDs.
3
7.
Lamp cover Removes cover to replace lamp or color wheel
46
8.
Vertical lens shift Adjusts the image position vertically
20
9.
Horizontal lens shift Adjusts the image position horizontally
21
10.
Lens release button Press the release button before removing the lens
13
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
