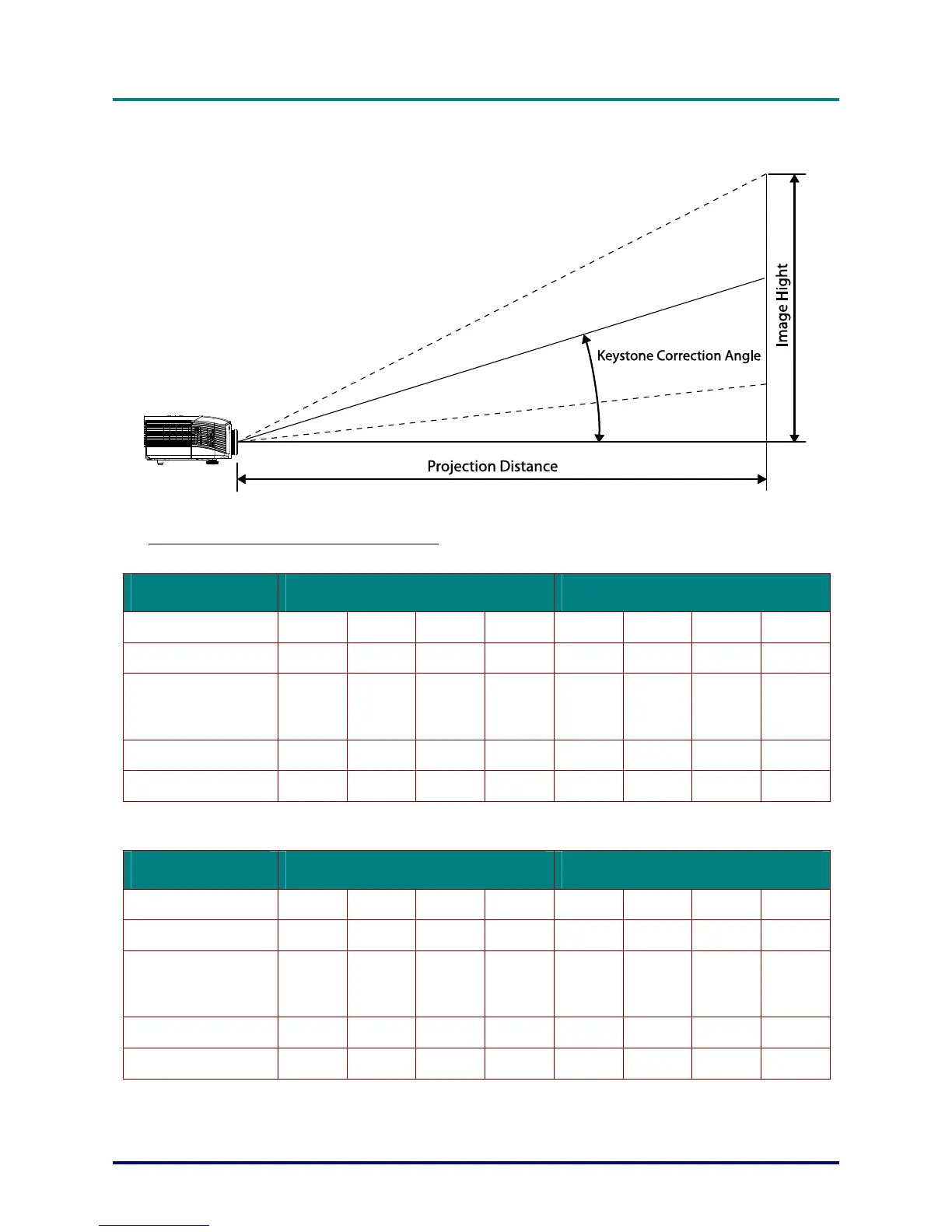

Projection Distance vs. Projection Size
Projection Distance and Size Table
Standard projection len: TR: 1.6~2; offset=100%
TELE WIDE
Distance (m) 1.63 3.25 4.06 8.13 1.63 3.25 6.50 9.75
Diagonal (") 40 80 100 200 50 100 200 300
Keystone
Correction angle
(degree)
10.62 10.62 10.62 10.62 13.19 13.19 13.19 13.19
Image Height (mm) 609.6 1219.2 1524.0 3048.0 762.0 1524.0 3048.0 4572.0
Image Width (mm) 812.8 1625.6 2032.0 4064.0 1016.0 2032.0 4064.0 6096.0
Long throw projection len: TR: 2~3; offset=100%
TELE WIDE
Distance (m) 2.44 6.10 12.19 19.51 2.03 6.10 12.19 19.91
Diagonal (") 40 100 200 320 50 150 300 490
Keystone
Correction angle
(degree)
7.13 7.13 7.13 7.13 10.62 10.62 10.62 10.62
Image Height (mm) 609.6 1524.0 3048.0 4876.8 762.0 2286.0 4572.0 7467.6
Image Width (mm) 812.8 2032.0 4064.0 6502.4 1016.0 3048.0 6096.0 9956.8
