VIVOTEK
6 - User's Manual

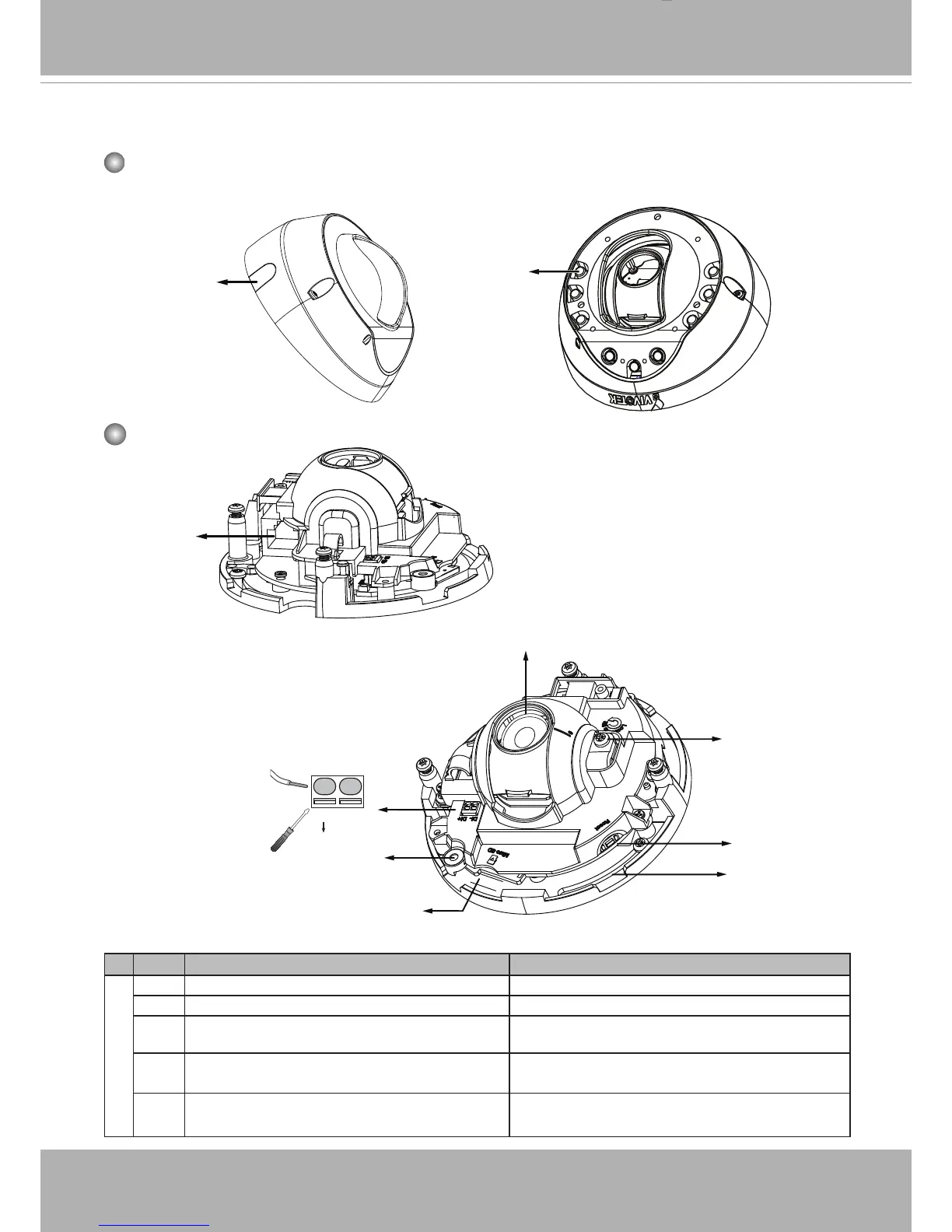

Physical Description
Outer View
Item LED status Description
LED De`nitions
1 Steady Red Powered and system booting, or network failed
Red LED off Power off
2 Steady Red and Green LED blinks every 1
sec�
Connected to network
3 Green,
LED blinks every 1 sec� and RED,
LED
blinks consecutively every 0�15 sec�
Upgrading rmware
5 Green and RED blink
every 0�15 sec� Restoring defaults
Leave the slide cover in place if you route cables through the bottom
and then through a hole on the ceiling or wall�
DI+ DI-
Max� is 40V�
Slide cover
Digital input
Lens
Tilt retention
screw
Reset button
Screw slot
Inner View
RJ-45
Socket
Side View
MicroSD/SDHC
card slot
Internal
microphone
IR LEDs
To Next Page
