VAST LiveClient User Interface
Menu Bar
Status Panel
E
C
B
G
A
D
User Name
Station Name (IP Address)
Login Time (yyyy-mm-dd hh:mm:ss)
Current Time (yyyy-mm-dd hh:mm:ss)
Menu Item Drop-down Options
System
Lock / Enable Click On Image (Disable Click On Image) / Language / Second View / E-map /
Launch Playback / Logout / Exit
Edit
Manually Begin Recording (Stop Manual Recording) / Snapshot / Print / Record to EXE (3GP,
AVI) / Snapshot Zoomed Image / Print Zoomed Image / Find
View
PTZ Panel / Two Way Audio Panel / Instant Playback Panel / Event Window / Full Screen /
Minimize / Matrix View
Conguration
Camera Management (Insert Camera / Update Camera / Delete Cameras / Batch Insert
Cameras) / Station Management / User Management / Association Management / Event
Management / Virtual Matrix Management (Matrix Management / Matrix View Settings) /
Station Settings (General Settings / Network Settings / Recording Storage Settings / Recording
Schedule Settings / Scheduled Backup Settings / Server Settings / Relay Settings) / Client
Settings (Snapshot Settings / Recording Settings / View Settings / General Settings / Joystick
Settings / Proxy Settings / PiP Settings) / Video Enhancement (Basic Image Adjustment /
Defog)
Layout Start Rotating (Stop Rotating) / Save to / Delete / Choose
Help About / License

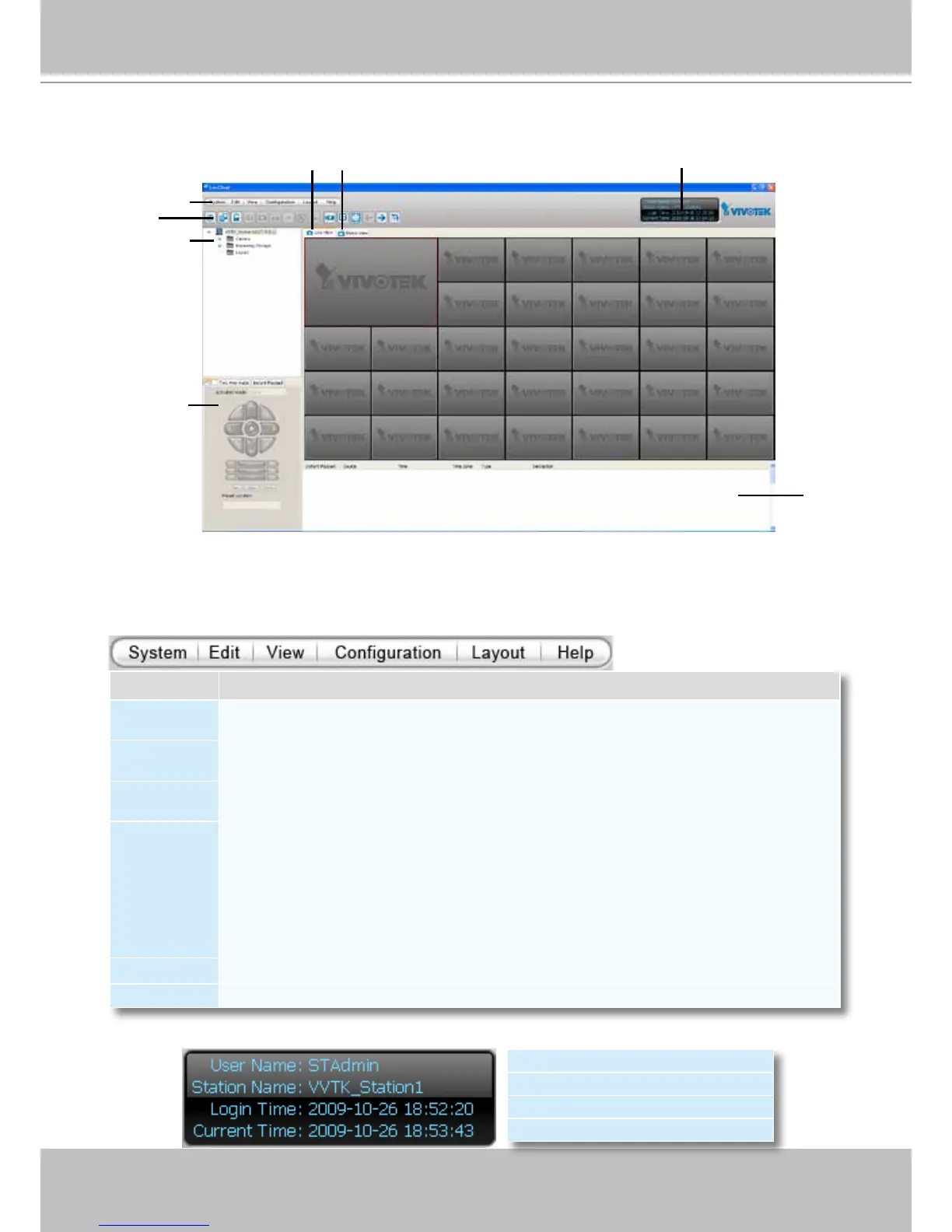

A. Menu bar B. Quick access bar C. Hierarchical management tree
D. Camera control panel (PTZ / Two way audio / Instant Playback control panel)
E. Live view window F. Matrix view window G. Status panel H. Event window
